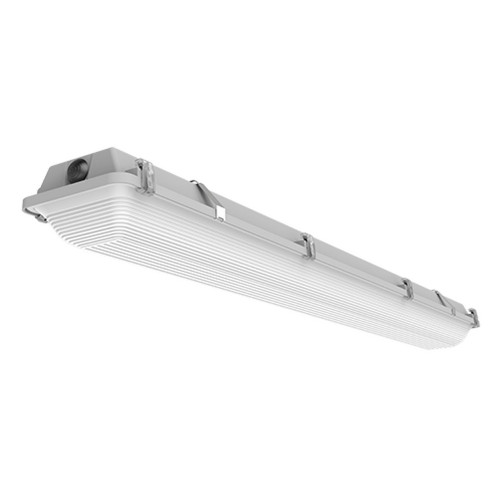

ILP WTZ4-6L-U-50-RAFL 40 Watt LED 4' Narrow Linear Vapor Tight Fixture 120-277V 5000K 5201 Lumens

Customer Reviews
SKU:
WTZ4-6L-U-50-RAFL
Weight:
6.00 LBS



$209.09
/ Each

Description

WTZ Series is an industry leading vapor tight luminaire robustly designed for a wide variety of environments. Its sealed and gasketed NSF listed fiberglass enclosure is easy to service and clean, ideal for maintaining a safe environment for food and beverage processing. With an enhanced feature set including industry leading ambient operating temperatures, extremely high efficiency, three scalable fixture lengths, wide lumen range, various high impact lens options and multiple mounting options make the WTZ Series the absolute luminaire for any vapor tight application.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • Robust & Durable Narrow Body Linear Vapor Tight
  • Industry Leading Max Ambient up to 131F - Ambient Range -40ºF to 131ºF (Select Models)
  • Extremely High Efficacy up to 156 lm/W
  • 2ft, 4ft & 8ft Fixture Lengths
  • Lumen Packages Ranging 2,000–24,000
  • Surface, Pendant, Wall & Suspended Mounting Options
  • Wireless Grouping Controls Options
  • Multiple Lens Options
  • Fiberglass Body Attributes: - F1 Weatherability Rating & 5VA Flame Rating - IP65, IP66 & IP67, NEMA4X, NSF, & 1500 PSI Hosedown
  • 3000K–5000K CCT
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 Hours
  • 0-10V Dimmable Driver (100%–10%)
  • 5 Year Warranty
  • ETL Listed for Wet Location
  • DesignLights Consortium® Premium Qualified Luminaire

    Five Impact Resistant Lens Options:

  • Ribbed Frosted Acrylic Std. (RAFL)
  • Shallow Clear Acrylic (SACL)
  • Shallow Frosted Acrylic (SAFL)
  • Shallow Clear Polycarbonate (SPCL)
  • Shallow Frosted Polycarbonate (SPFL)

Applications:

  • Coolers & Freezers
  • Food & Beverage Preparation
  • Greenhouse
  • Pharmaceutical
  • Healthcare
  • Education
  • Industrial
  • Parking Garage

Downloads:

Product Specifications:

Package Size Each
Package Includes 1/Each
Wattage 47
Lumens 6505 Lumens
Lumens Per Watt 134
Input Voltage 120-277V
Color Temp 5000K
CRI >80
Dimmable 0-10V Dimming
UL Listed No
ETL Listed Yes
DLC Listed Yes
DLC Premium Listed Yes
Wet Location Yes
Damp Location Yes
Hazardous Location No
Certifications NEMA4X, NSF
Housing Material Fiberglass
Color Finish White
Lens Type Ribbed Acrylic Frosted (Std)
Motion Sensor Included No
Emergency Battery Included No
Operating Temperature Range -4?F-115?F
Life Rating L70 >100,000 Hours
Warranty 5 Years
IP Rating IP65, IP66 & IP67
SKU:
WTZ4-6L-U-50-RAFL
Weight:
6.00 LBS
Package Size:
Each
Package Includes:
1/Each
Wattage:
40
Lumens:
5201 Lumens
Lumens Per Watt:
138
Input Voltage:
120-277V
Color Temp:
5000K
CRI:
>80
Dimmable:
0-10V Dimming
UL Listed:
No
ETL Listed:
Yes
DLC Listed:
Yes
DLC Premium Listed:
Yes
Wet Location:
Yes
Damp Location:
Yes
Hazardous Location:
No
Certifications:
NEMA4X, NSF, 5VA, ETL
Housing Material:
Fiberglass
Color Finish:
White
Lens Type:
Acrylic
Motion Sensor Included:
No
Emergency Battery Included:
No
Operating Temperature Range:
-4?F-115?F
Life Rating L70:
>100,000 Hours
Warranty:
5 Years
IP Rating:
IP65, IP66, IP67
