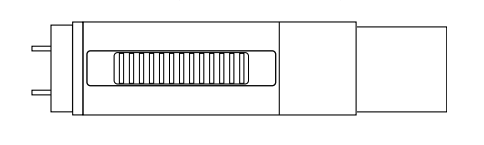

The TCP LT813B2CCT LED SelecT8 Type B Double End Bypass Tube is a 4-foot LED replacement designed to retrofit linear T8 fluorescent installations with energy-efficient light and long life. This 13.5-watt tube delivers approximately 1800 lumens and offers selectable color temperatures among 3500K, 4000K, or 5000K to suit different tasks and spaces, all without a separate ballast. With a long-rated life of 50,000 hours and instant on/off performance, it helps reduce maintenance cycles and minimize downtime in general lighting applications. The Type B double end bypass configuration means wiring must be done to bypass the ballast and feed line power directly to the tube ends, a detail that matters for compliant installation and fixture compatibility.
The LT813B2CCT features a 190-degree beam angle and a medium bi-pin base, compatible with standard T8 hollow-core sockets in many open or enclosed fixtures. It is rated for damp locations and is suitable for a variety of environments where reliable, flicker-free illumination is important. The ribbed, frosted diffuser incorporated into TCP fixtures helps protect the diode array while reducing glare to deliver consistent, diffuse light across work areas. This product is offered as a single SKU to support projects with multiple color temperatures over a single installation, helping to simplify inventory management.
When selecting this tube, verify fixture compatibility with a ballast bypass installation and ensure appropriate wiring practices per local electrical codes. The unit is non-dimmable and designed to be used in 120–277V circuits, with a manufacturer warranty of 5 years. Packaged as individual tubes (case quantity 25), it provides a straightforward path for replacements or new construction where energy savings and long service life are priorities.
Features:
- Color selectable: 3500K, 4000K, or 5000K
- Over 50% energy savings vs. 32W fluorescent
- Non-flickering, instant on/off
- Open or enclosed fixtures and damp locations rated
- Long life: 50,000 hours
- Use 1 SKU for multiple CCT requirements
- Medium bi-pin base, 190° beam angle
- Weight:
- 0.5lbs
- Manufacturer Part Number:
- LT813B2CCT
- Manufacturer:
- TCP
- Lumens:
- 1800
- Base Type:
- Medium Bi Pin
- Wattage:
- 13.5 Watts
- Voltage:
- 120-277V
- Color Temperature:
- SELECTABLE 3500K 4000K 5000K
- Dimmable:
- Non Dimmable
- Beam Angle:
- 190
- Average Rated Life:
- 50,000
- Bulb Shape:
- T8 LINEAR
- Warranty:
- 5 Years
- Package Size:
- Each
- Case Quantity:
- 25
