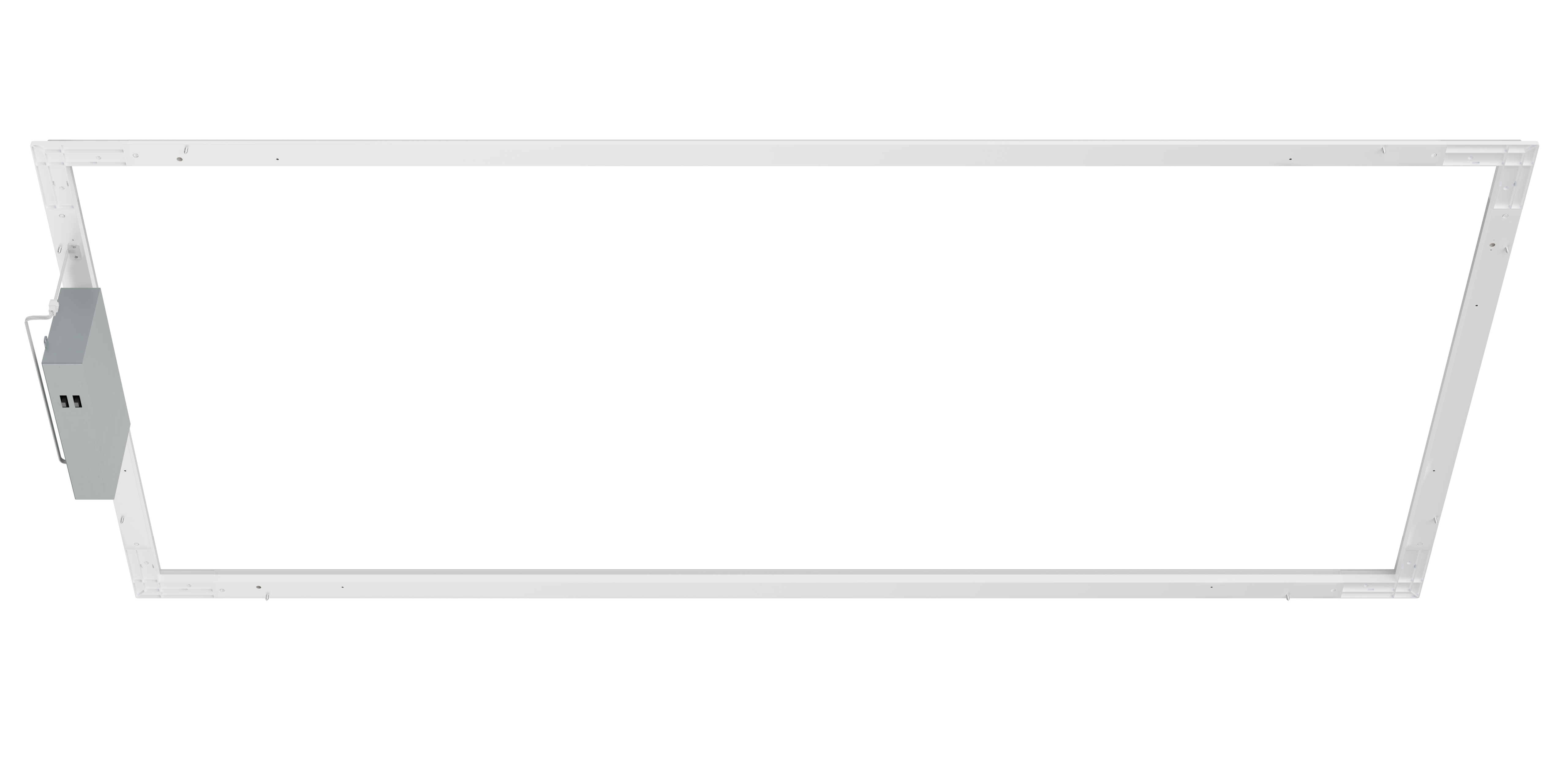

The Litetronics VLFT4 is a high-efficiency LED panel designed to replace traditional 2' x 4' fluorescent fixtures with three selectable wattages and three selectable color temperatures, giving installers and building managers flexibility to meet varied lighting needs from a single luminaire. This frame-style LED delivers bright, evenly distributed illumination with a 110-degree beam angle and a polycarbonate frosted diffuser to minimize glare while maintaining good transmission of light. The design supports continuous operation in damp locations and is compatible with 0-10V dimming, enabling smooth, flicker-free control in spaces that require adjustable ambience or energy management strategies.
Constructed for long service life, the VLFT4 carries a 50,000-hour average rated life and a 5-year warranty, offering predictable maintenance cycles and replacement planning. It operates on standard line voltages from 120 to 277 volts with a power factor of at least 0.95 and low total harmonic distortion, contributing to efficient energy use and reduced electrical strain. The fixture is RoHS compliant and ETL damp-location rated (pending final listing status), reflecting its suitability for commercial interiors such as offices, schools, retail, and healthcare settings where dependable, uniform lighting is important. The product supports emergency battery back-up integration and carries DLC listing pending status for the 2' x 2' configuration, with IP rating of 80 for indoor environments.
With selectable wattage options of 24, 34, or 45 watts and selectable CCT options of 3500K, 4000K, and 5000K, the VLFT4 can adapt to different tasks and spaces without needing multiple fixtures. This versatility helps minimize inventory and simplifies project planning, while maintaining consistent color rendering (CRI 80) and energy performance across configurations. When planning installation, note the dimming range (0% to full rated output) and the integration considerations for emergency power systems and DLC compliance as they become finalized.
Features:
- Selectable wattage: 24/34/45W for 2' x 4' frame
- Selectable CCT: 3500K, 4000K, 5000K
- 0-10V dimming for daylight control
- 50,000-hour rated life with 5-year warranty
- Damp location rating and RoHS compliant
- IP65? (IP rating 80) for protection in dry/damp environments
- Emergency battery backup compatibility
- Average rated life:
- 50,000 hours (@L70)
- Warranty:
- 5 years
- Operating temp:
- 32°F - 104°F
- Surge protection:
- 2.5KV
- Input voltage:
- 120-277V
- Input frequency:
- 50/60Hz
- Power factor:
- ≥0.95
- THD:
- ≤20
- CRI:
- 80
- Beam angle:
- 110°
- Diffuser type:
- Polycarbonate frosted
- Dimming:
- 0-10VDC ANSI C137.x compliant
- Minimum dimming:
- 0% of rated lumen LED drive current
- Location rating:
- Damp
- ETL listed:
- Pending
- RoHS compliant:
- Yes
- DLC rating:
- 2’x2’ Pending
- IC rated:
- Yes
- IP rating:
- 80
- LPW:
- 125
- Package Size:
- Each
