Name: ILP VOLA24-53L-U-40 Volumetric LED Troffer 4000K, 38 Watt, 5301 Lumens
Brand: ILP
SKU: VOLA24-53L-U-40
Price: 190.08 USD
Availability: InStock

ILP VOLA24-53L-U-40 Volumetric LED Troffer 4000K, 38 Watt, 5301 Lumens

ILP

SKU:

VOLA24-53L-U-40

$190.08

/ Each

Weight:

24.00 LBS

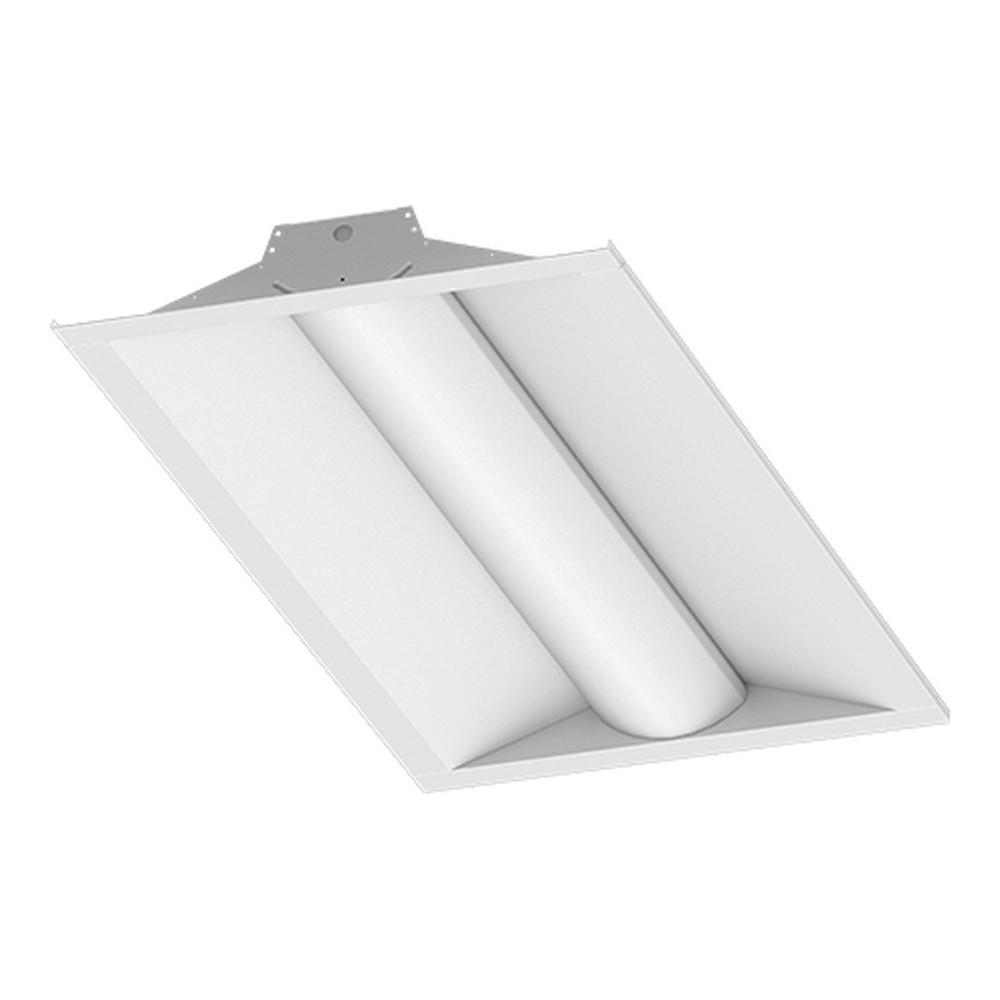

The ILP VOLA24-53L-U-40 is an architecturally designed volumetric LED troffer intended for modern indoor lighting applications. Built with a lightweight aluminum body finished in matte white and a high-transmission extruded PMMA frosted acrylic lens, it delivers a clean, low-profile appearance suitable for both commercial and institutional settings. The luminaire supports versatile installation through recessed, surface, or flange mounting methods and includes options for air return, allowing integration with existing ceiling assemblies and airflow considerations. In the available configurations, it accommodates 1×4, 2×2, and 2×4 layouts, with delivered lumens ranging broadly to meet different project needs while maintaining high efficiency.

The device is designed for reliable, long-term operation, featuring a 0-10V dimmable driver and a calculated L70 lifespan exceeding 100,000 hours. Available color temperatures span from 3000K to 5000K, with 80 or 90 CRI options to suit varying color rendering requirements. It is ETL listed and DesignLights Consortium Premium qualified, signaling compliance with recognized performance and safety standards and compatibility with advanced wireless control options for enhanced functionality. The fixture is backed by a standard 5-year warranty, with an optional 10-year warranty available, providing added peace of mind for project planning.

For project planning, the VOLA24-53L-U-40 is specified at 38 watts with a 4000K color temperature and typically delivers around 5301 lumens, achieving a high efficacy in the neighborhood of 140–151 lm/W depending on the exact configuration and installed system. This combination makes it suitable for general ambient lighting in offices, corridors, classrooms, and other commercial interiors where energy efficiency and a sleek, contemporary aesthetic are priorities, while still offering robust performance credentials and controllability through compatible wireless options.

Features:

Architecturally designed volumetric troffer
Lightweight aluminum matte white finish body
High transmission extruded PMMA frosted acrylic lens
Recessed, Surface or Flange Mount
Air Return Options
Advanced Wireless Controls Options
1×4, 2×2, 2×4 sizes

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 38
Lumens:: 5301
Lumen Per Watt:: 140
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Premium
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key specifications of the ILP VOLA24-53L-U-40 Volumetric LED Troffer?

For the SKU VOLA24-53L-U-40, the product specifies 38 Watts, 5301 Lumens, 4000K color temperature, 140 lumens per watt, CRI >= 80, ETL Listed yes, DesignLights Consortium Premium Qualified, and a 5-year warranty with an optional 10-year warranty.

What mounting options does this troffer support and does it include air return capabilities?

It supports recessed, surface, or flange mount and offers air return options.

What is the delivered lumen range and the corresponding efficacy for this fixture?

This model delivers 5301 lumens with a high efficacy up to 151 lm/W.

What are the color temperature options and CRI available for this product?

The product is listed with a 4000K color temperature and CRI options of 80 or 90.
