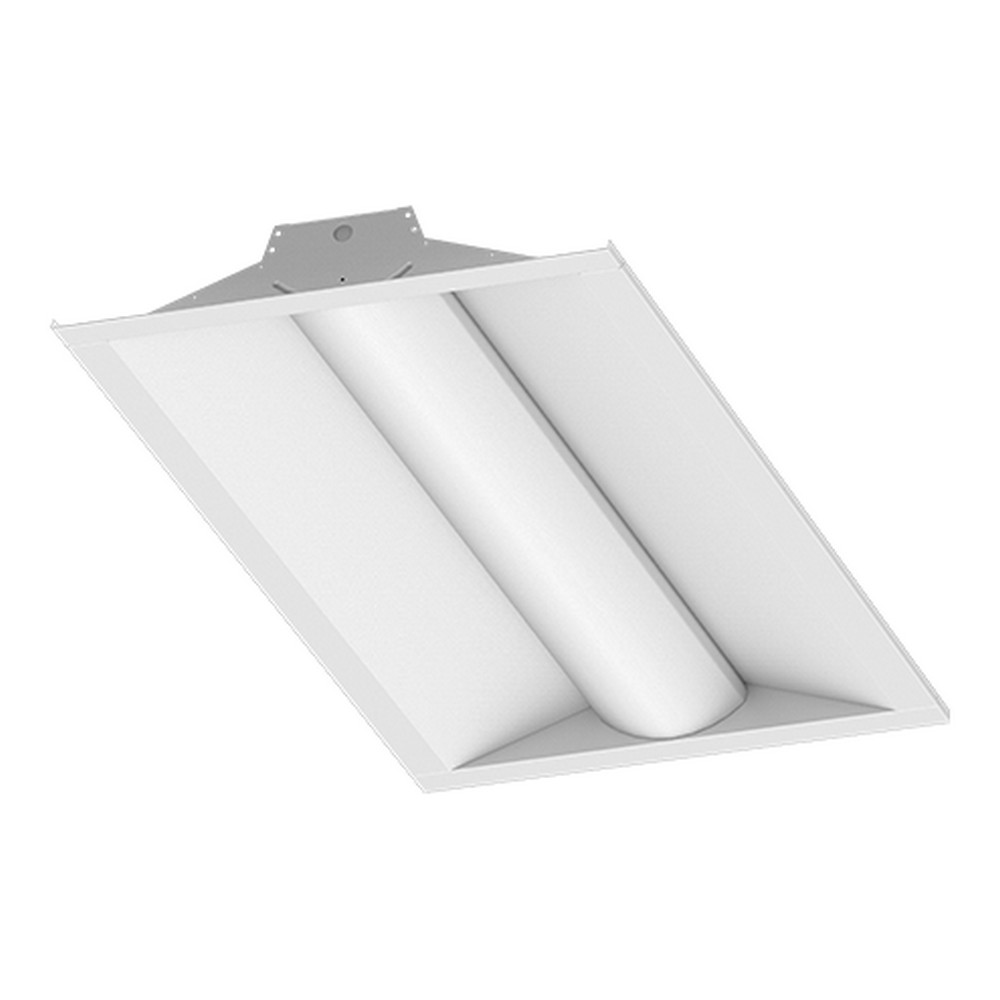

Name: ILP VOLA24-29L-U-40 Volumetric LED Troffer 4000K, 21 Watt, 2938 Lumens
Brand: ILP
SKU: VOLA24-29L-U-40
Price: 165.89 USD
Availability: InStock

ILP VOLA24-29L-U-40 Volumetric LED Troffer 4000K, 21 Watt, 2938 Lumens

ILP

SKU:

VOLA24-29L-U-40

$165.89

/ Each

Weight:

24.00 LBS

The ILP VOLA24-29L-U-40 is an architecturally styled volumetric troffer designed to provide efficient, uniform illumination for modern interior spaces. Its lightweight aluminum body finished in matte white pairs with a high-transmission extruded PMMA frosted acrylic lens to deliver a clean, diffuse light quality suitable for task and ambient lighting applications. The luminaire is available in common modular configurations (1×4, 2×2, and 2×4) and can be mounted recessed, surface, or flange-mounted, with optional air return functionality to suit ventilation considerations in the ceiling plenum. It supports a broad color-temperature range from 3000K to 5000K and a choice of CRI options (80 or 90), allowing alignment with design and functional requirements across different spaces. The VOLA series is engineered for long service life, with a calculated L70 lifespan exceeding 100,000 hours, and it uses a 0-10V dimmable driver to provide adjustable lighting levels compatible with basic or advanced lighting controls. This fixture is ETL listed and holds DesignLights Consortium Premium qualification, indicating compliance with energy and performance standards for commercial luminaires. A standard 5-year warranty is included, with an optional 10-year warranty offering extended coverage for ongoing installations.

Features:

Architecturally designed volumetric troffer
Lightweight aluminum matte white finish body
High transmission extruded PMMA frosted acrylic lens
Recessed, Surface or Flange Mount
Air Return Options
Advanced Wireless Controls Options
2,400–10,000 Delivered Lumens with 21 W input
Up to 151 lm/W efficacy
4000K CCT, 80+ CRI
ETL Listed and DLC Premium Qualified
0-10V Dimmable Driver
Long lifecycle: L70 >100,000 hours
5 Year Warranty (standard); 10 Year optional

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 21
Lumens:: 2938
Lumen Per Watt:: 139
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Premium
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features define the ILP VOLA24-29L-U-40 Volumetric LED Troffer?

The troffer features a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, suitable for recessed, surface, or flange mounting with air return options.

What are the key technical specifications for this SKU including power, light output, and efficiency?

It uses 21 watts, delivers 2938 lumens, and has a high efficacy of up to 139 lm/W with a color temperature of 4000K; CRI is listed as 80 or higher.

What mounting options are available for the ILP VOLA24-29L-U-40?

The fixture supports recessed, surface, or flange mount configurations and includes air return options.

What warranty and listing information is available for this product?

It is ETL Listed, DesignLights Consortium Premium Qualified, and comes with a standard 5-year warranty (optional 10-year warranty).

What are the electrical and lifetime specifications for this troffer?

The input voltage is 120-277V, and the average rated life is 100,000 hours with a 0-10V dimmable driver.
