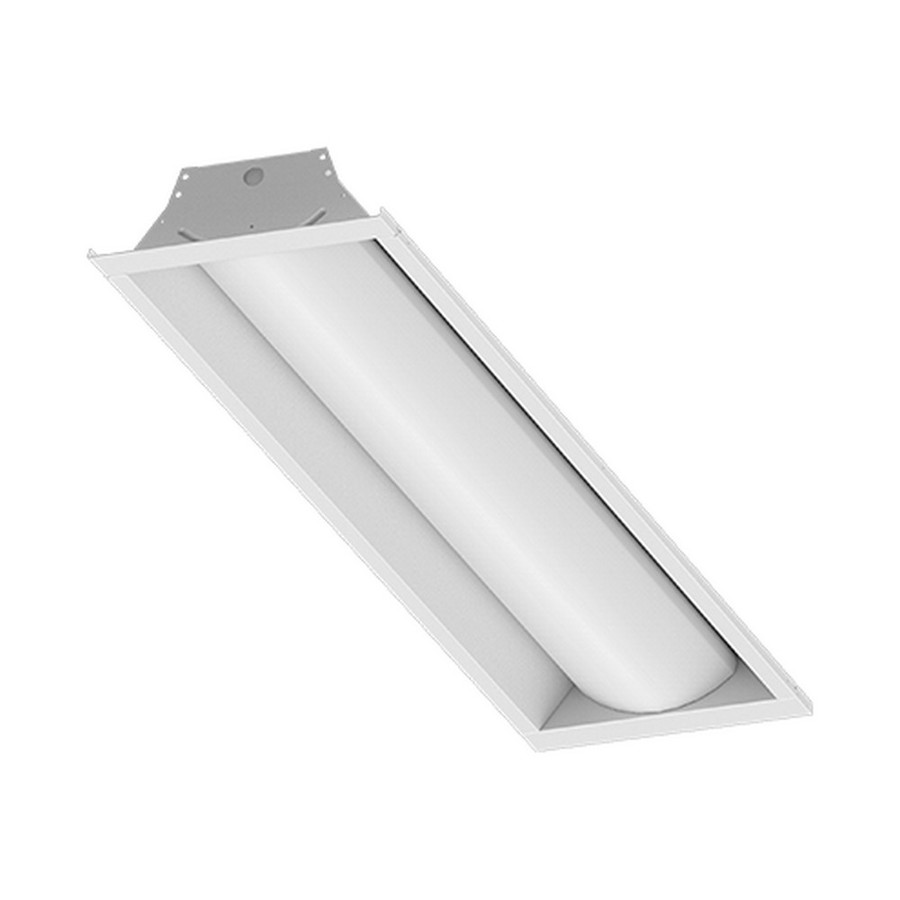

ILP VOLA14-41L-U-40 Volumetric LED Troffer 4000K, 29 Watt, 4081 Lumens

The ILP VOLA14-41L-U-40 is a volumetric LED troffer designed for architecturally refined lighting in commercial and facility spaces. Its lightweight aluminum body features a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, delivering a clean, uniform appearance while optimizing light distribution. The fixture is versatile in mounting options, supporting recessed, surface, or flange installations, and it includes air return capabilities to help manage air movement within ceilings. Available in 1x4, 2x2, and 2x4 configurations, this troffer provides a broad lumen range and high efficacy to suit varied space requirements, while offering 3000K–5000K color temperatures with 80 or 90 CRI options.

Constructed for reliability, the VOLA14-41L-U-40 uses a 0-10V dimmable driver and is designed to achieve a calculated L70 lifetime exceeding 100,000 hours. The luminaire is ETL listed and DesignLights Consortium Premium qualified, signaling compliance with recognized performance criteria and efficiency standards for commercial lighting. It is offered with standard warranty terms of five years, with an optional extended warranty to ten years, reflecting additional confidence for long-term installations. The fixture’s driver, efficiency, and long life support lower maintenance costs and provide consistent illumination over time.

This model outputs 4,081 delivered lumens at 29 watts, yielding a lumen-per-watt performance around 139–151 lm/W depending on configuration and operating conditions. The 4000K CCT sits squarely in the bright, neutral white range commonly used for offices, corridors, and general task areas, while the premium DLC rating indicates suitability for projects that seek high-efficiency lighting solutions. When planning installation, consider the mounting method and available ceiling access to accommodate the air return feature and ensure compatibility with wireless controls options if advanced networked control is desired.

Features:

• Architecturally designed volumetric troffer
• Lightweight aluminum matte white finish body
• High transmission extruded PMMA frosted acrylic lens
• Recessed, Surface or Flange Mount with Air Return Options
• Advanced Wireless Controls Options
• 1×4, 2×2, 2×4 sizes
• 2,400–10,000 Delivered Lumens; Up to 151 lm/W
• 4000K CCT; 80–90 CRI
• 0-10V Dimmable; 100,000 h L70; ETL Listed
• DLC Premium Qualified
• 5 Year Warranty (Std); 10 Year Optional
