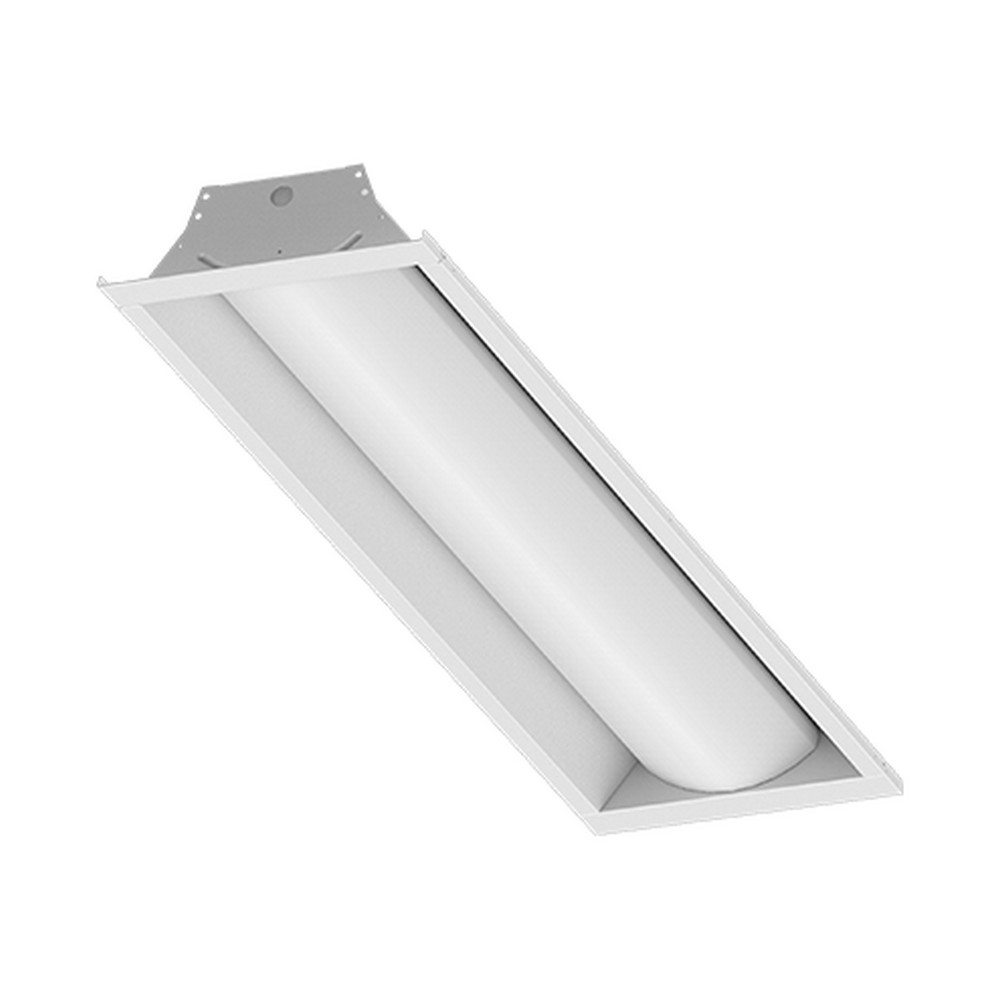

ILP VOLA14-24L-U-40 Volumetric LED Troffer 4000K, 17 Watt, 2389 Lumens

The ILP VOLA14-24L-U-40 Volumetric LED Troffer is an architecturally styled, ambient lighting solution designed for versatile installation in modern interiors. Its lightweight aluminum body finished in matte white houses a high-transmission extruded PMMA frosted acrylic lens, delivering a clean, even light distribution suited for work environments and contemporary spaces. The fixture is designed to support recessed, surface, or flange mounting, and includes air return options to suit challenging ceiling plenum configurations. Available in common grid layouts (1x4, 2x2, and 2x4), it provides a broad lumen range from 2,400 to 10,000 delivered lumens and high efficacy, up to 151 lm/W, enabling energy-efficient illumination with flexible brightness levels.

With color temperatures spanning 3000K to 5000K and CRI options of 80 or 90, the troffer accommodates a range of task and ambient lighting requirements while preserving color fidelity. The VOLA14-24L-U-40 incorporates a 0-10V dimmable driver and is designed for long service life, featuring a calculated L70 rating exceeding 100,000 hours. It is ETL listed and DesignLights Consortium Premium qualified, indicating compliance with recognized safety and performance standards and compatibility with advanced wireless control options for integrated lighting systems. A standard 5-year warranty is included, with an optional 10-year warranty to provide extended coverage for facility investment protection.

Typical applications include office suites, classrooms, and commercial spaces that require reliable, uniform illumination with a modern aesthetic. When selecting this troffer, consider ceiling compatibility, mounting method, and control strategy to ensure optimal performance and energy savings. The unit operates on 120-277V input and delivers 17 watts at a 2389-lumen output, offering strong efficacy for its class and straightforward integration with existing electrical infrastructure.

Features:

• Architecturally designed volumetric troffer
• Lightweight aluminum matte white finish body
• High transmission extruded PMMA frosted acrylic lens
• Recessed, Surface or Flange Mount with Air Return Options
• Advanced Wireless Controls Options
• 1x4, 2x2, 2x4 sizes
• 2,400–10,000 Delivered Lumens
• High Efficacy – Up to 151 lm/W
• 4000K CCT, 80/90 CRI options
• 0-10V Dimmable, ETL Listed
• DLC Premium Qualified
• 5-Year Warranty (10-Year Optional), 100,000 hr life
