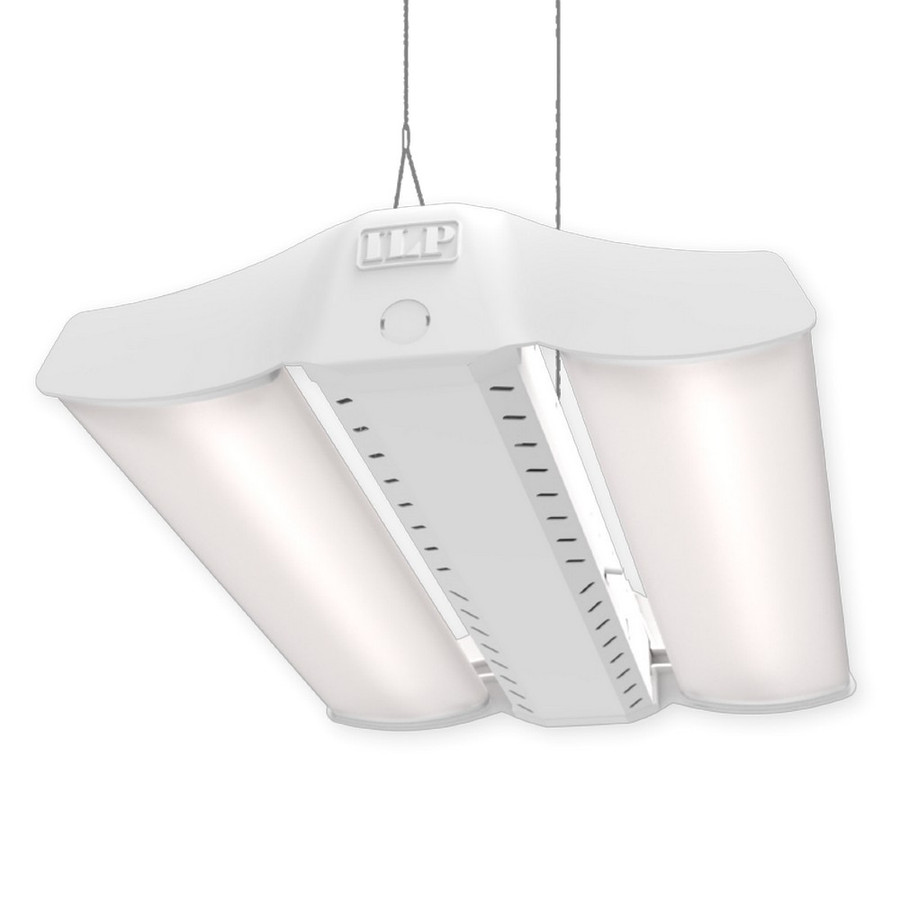

ILP EDV4-36L-U-50-FRL Endeavour 2.0 LED High Bay 5000K, 248 Watt, 36638 Lumens, Frosted Acrylic Lens

The ILP Endeavour 2.0 EDV4-36L-U-50-FRL is a high bay lighting fixture designed for demanding industrial environments. This 248-watt luminaire delivers about 36,638 lumens with a 5000K color temperature and a high color rendering index (CRI >80), helping illuminate large spaces with clarity and accuracy. A frostede acrylic lens combination provides a balanced, diffused light pattern, while the aluminum body and curved polycarbonate end caps contribute to rigidity and durability in high-ceiling applications. The design includes a tool-less hinged driver access for easier maintenance and a choice of wide or narrow distributions to fit varied mounting configurations. The Endeavour is listed for damp locations and carries a DesignLights Consortium Premium qualification, indicating it meets stringent efficiency and performance standards for commercial spaces.

Construction details emphasize rugged handling and long service life. The fixture features an IK10-grade capable housing, metal channel support for added rigidity, and V-clips for quick, secure hanging using dual-point chain or cable. The unit operates on 120–277 V, with a 0–10 V dimmable driver that supports 100%–10% dimming to suit different workflows and occupancy scenarios. The model is available with standard white finish and is compatible with both basic and advanced control options, allowing compatibility with various lighting controls and retrofit strategies. With an average rated life of 100,000 hours and a five-year warranty (with a ten-year option), it is positioned for long-term service in warehouse, manufacturing, and large-space environments.

For installation and use, consider the need to prioritize room illumination with uplight options that can enhance spatial brightness. The 131°F standard ambient temperature range and 149°F high ambient option provide flexibility for locations with elevated heat loads. Ensure power supply within the 120–277 V range and select the appropriate distribution pattern and control configuration to match ceiling height, mounting method, and ambient conditions. This DLC Premium-qualified luminaire is designed to meet industrial lighting performance criteria while offering solid maintenance access and a robust build for tough facilities.

Features:

• Aluminum body with steel channel for rigidity
• Tool-less hinged driver access
• V-clips for dual point hanging (standard)
• 0-10V dimmable driver (100%–10%)
• Uplight options to optimize full room illumination
• Wide & Narrow distributions
• ETL Listed for Damp Location
