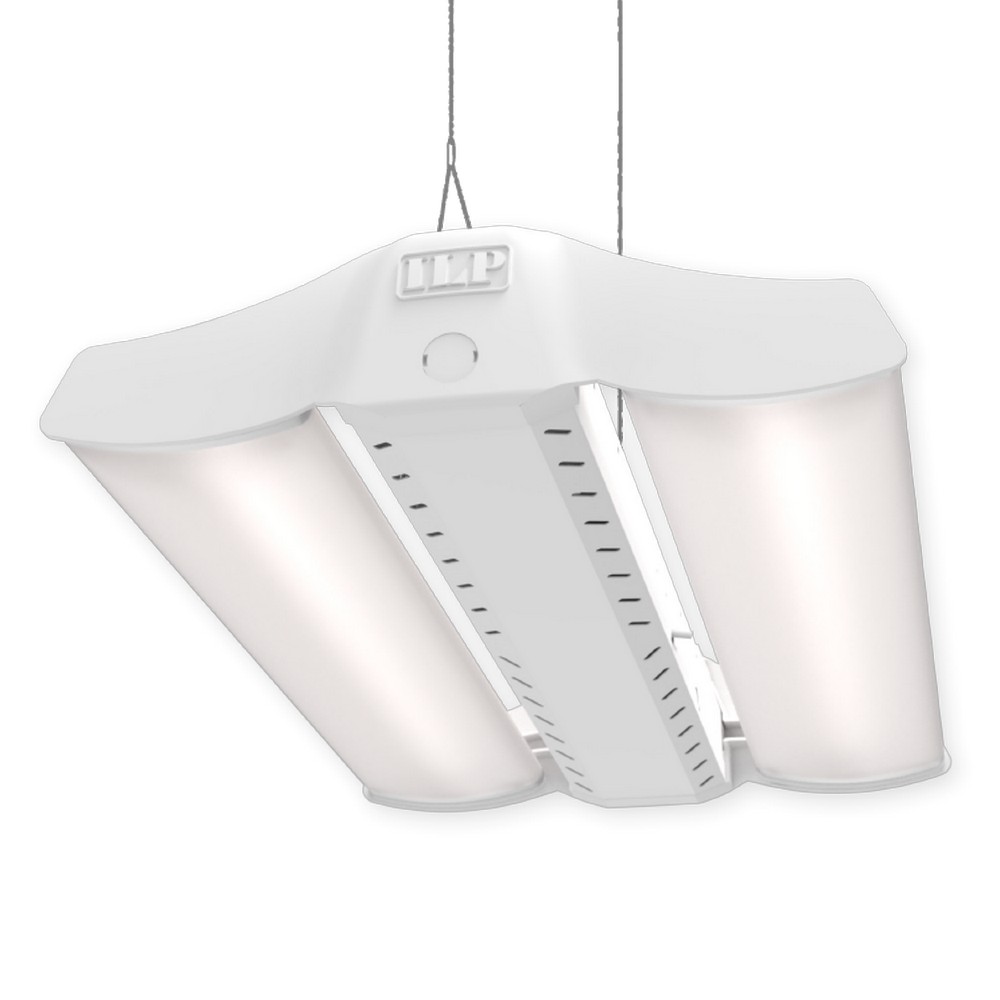

The ILP Endeavour 2.0 EDV4-36L-U-50 is a high bay LED luminaire designed for demanding industrial and commercial spaces with elevated ceilings. It delivers bright, efficient illumination with a 5000K color temperature, producing 38,732 lumens from a 248-watt input. With an impressive lumen-per-watt ratio and a color rendering index above 80, this fixture helps ensure workloads and tasks are clearly visible, supporting safety and productivity in large work areas. The design emphasizes rugged construction suitable for challenging environments, including an aluminum housing reinforced by a steel channel and curved polycarbonate end caps for added durability and serviceability.
Key features include multiple distribution options (wide and narrow), a tool-less hinged driver access for quick maintenance, and mounting versatility via V-clips for dual-point hanging. The unit is engineered for a wide operating temperature range, rated to operate from -40°F to 131°F, and includes an uplight option to help illuminate the full room. It is suitable for damp locations and carries ETL listing, indicating compliance with applicable safety standards. The fixture is DLC Premium Qualified, aligning with energy-performance benchmarking and potential utility rebates.
This model is designed for settings that demand robust performance with easy installation and long service life. It supports 0-10V dimming (100%–10%) for adjustable illumination, allowing you to tailor output to the task at hand. The ENDEAVOUR family offers a 5-year standard warranty, with a 10-year option available, providing coverage for typical life-cycle considerations in industrial facilities. For sizing and compatibility, the unit lists a 120–277V input range and IP5X ingress protection, making it a practical choice for high-ceiling, large-area applications where reliable, high-output lighting is required.
Features:
- Sleek curved polycarbonate end caps
- Aluminum body with steel channel for rigidity
- Tool-less hinged driver access
- Wide & Narrow distributions with uplight options
- V-clips for dual point hanging
- 0-10V dimmable driver (100%–10%)
- ETL Listed for Damp Location; DLC Premium Qualified
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 248
- Lumens:
- 38732
- Lumen Per Watt:
- 156
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -40F to 131F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
