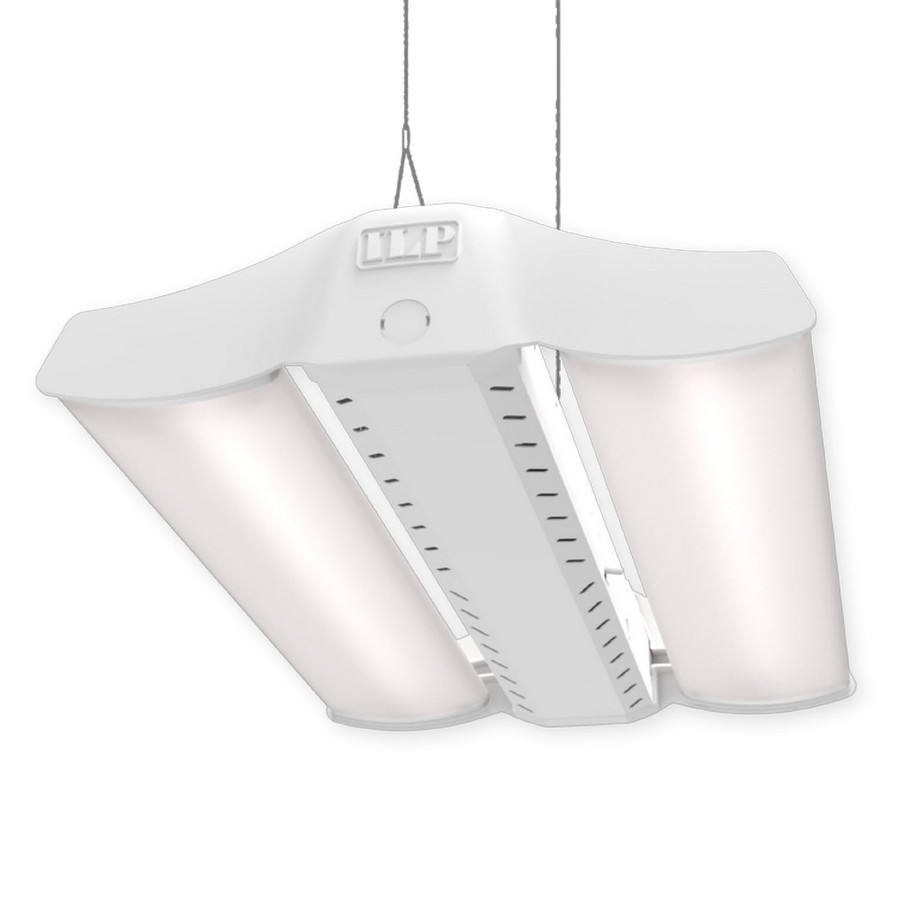

The ILP Endeavour 2.0 EDV4-15L-U-50-ND is a high bay lighting fixture designed for demanding industrial and commercial spaces. It delivers bright, high-efficiency illumination with a 5000K color temperature and a measured 102 watts of input power, producing up to 16,638 lumens for effective area coverage. Its design emphasizes versatility and robustness, including an aluminum body with a steel channel for added rigidity and curved polycarbonate end caps for durable assembly. The fixture offers wide and narrow distribution options and an uplight feature to enhance full-room illumination, helping to reduce dark zones and improve visual comfort in large volumes.
Key construction details include an IP5X rating for protection against dust ingress and a wide operating temperature range suitable for various environments. The unit is ETL Listed for Damp Locations and qualifies as a DesignLights Consortium Premium Qualified Luminaire, underscoring its compatibility with energy-conscious retrofit and new-install projects. A 0-10V dimming driver (100%–10%) provides flexible light levels, while the fixture’s drivers are accessible without tools, facilitating maintenance. The LED source is rated for long life, with a calculated L80 greater than 100,000 hours, supporting reduced maintenance intervals in facilities.
Practical considerations include a 120–277V input range, making the EDV4-15L-U-50-ND suitable for multi-volt electrical environments. The fixture is available in white finish and is designed for surface mounting or hanging via the included V-clips for dual-point chain or cable hanging. With a five-year warranty standard and a ten-year warranty option, you’ll have added assurance for ongoing facility operations. This luminaire is well-suited for high-bay applications in warehouses, manufacturing plants, and distribution centers where reliable performance, easy access for maintenance, and compatibility with energy-efficient controls are priorities.
Features:
- Aluminum body with steel channel for rigidity
- Tool-less hinged driver access
- Wide & Narrow light distributions
- V-clips for dual point chain or cable hanging
- 0-10V dimmable driver (100%–10%)
- ETL Listed for Damp Location
- DesignLights Consortium Premium Qualified Luminaire
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 102
- Lumens:
- 16638
- Lumen Per Watt:
- 163
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- Operating Temperature Range:
- -40F to 131F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
