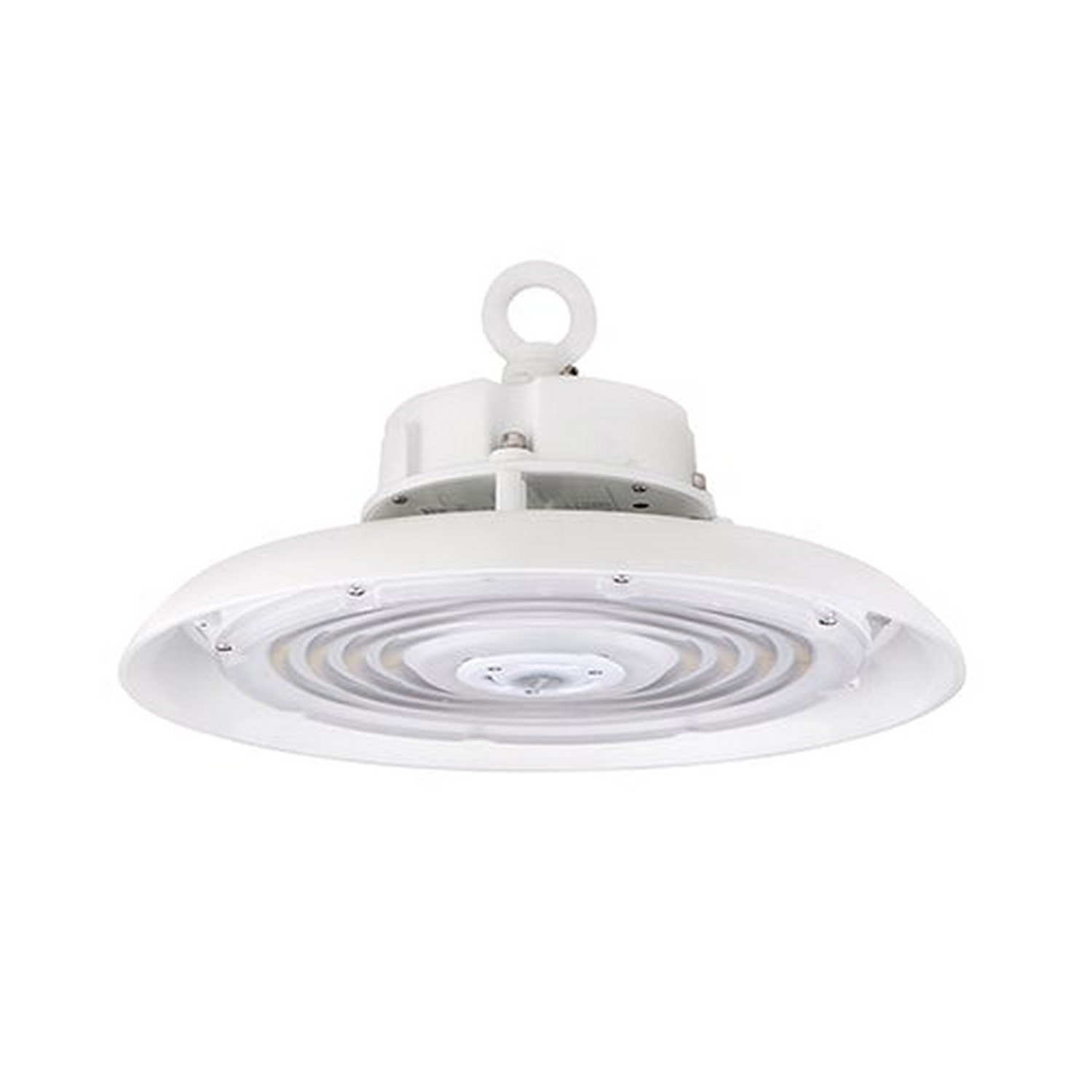

The Beyond LED Technology NorthStar UFO High Bay is a high-output lighting fixture designed to illuminate large industrial spaces such as warehouses, gymnasiums, production areas, and outdoor canopies. This 240W LED high bay delivers substantial lumen output while maintaining efficiency, offering up to 145 lumens per watt and a total of 35,100 lumens at a 5000K color temperature with a white housing. Its LED chipset is mounted in a die-cast aluminum housing, which helps with heat dissipation and durability in demanding environments. The fixture features an ultra-thin, sleek profile and includes a 0-10V dimming option for compatible control systems, allowing reduced energy consumption when full output isn’t required.
Construction and notable features include IP65 rating for protection against dust and moisture, UL and DLC listings for electrical safety and performance credentials, and a universal voltage option (100-277V, with 480V available as an option) to simplify installation across different sites. The NorthStar design also supports quick maintenance via a driver-to-optical assembly interface, enabling easier access to components. In addition, several mounting options, an optional emergency backup, and plug-and-play motion sensor compatibility provide flexible deployment and improved occupancy sensing applications.
When planning installation, consider the 240V input power specification and the versatile voltage ranges to match site power available. The fixture is designed to operate within standard industrial electrical systems and is finished in white for a clean, reflective appearance in high-bay environments. Provided as a single-unit package, it integrates with smart control systems where applicable and leverages robust performance credentials indicated by its UL and DLC listings. For maintenance and lifecycle considerations, the optional features (motion sensor, emergency backup) offer targeted redundancy or energy-management strategies without altering the core lighting output.
Features:
- Up to 145 Lumens per watt
- Ultra-thin Sleek Design
- 0-10V Dimming capability
- Plug and Play Motion Sensor
- IP65 Rated
- Optional Emergency backup
- Universal 100-277Vac / 480Vac optional
- UL & DLC Listed
- Input Power:
- 240W
- Color Temperature:
- 5000K
- Lumen:
- 35100Lm
- Lumen Efficacy:
- Up to 145LM/W
- CRI:
- 80
- IP Rating:
- IP65
- Safety Report:
- UL & DLC Listed
- Input Voltage:
- 100-277VAC50/60Hz
- LED Type:
- SMD2835
- Housing:
- Die-cast aluminum
- Housing Color:
- White
- Warranty:
- 5 Years
- Package Size:
- Each
