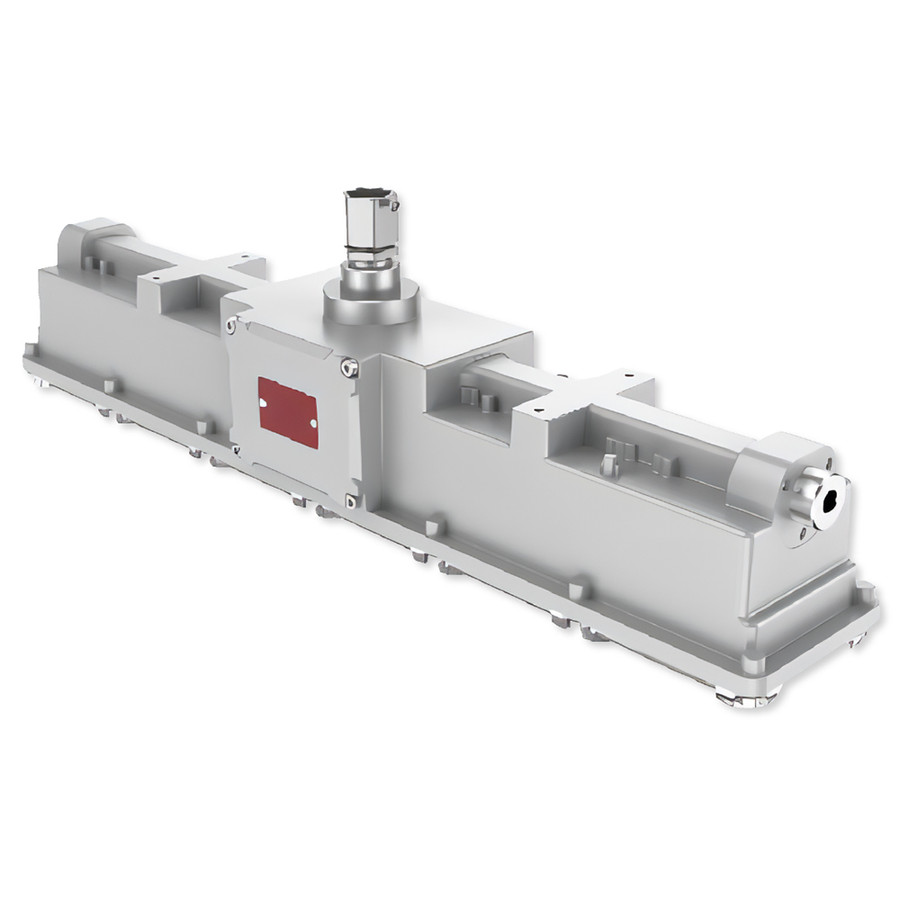

The LIH-5-LV-50-D-DL-B-PM-3/4-S is an industrial LED light designed for hazardous locations, provided by FME Lighting. This 50 W fixture delivers up to 8,000 lumens with a 5,000 K color temperature, suitable for demanding environments that require reliable illumination in safety-critical areas. The unit is built to operate across a wide voltage range (100–277 VAC and 277–480 VAC at 50/60 Hz), enabling flexible installation in facilities with varying electrical systems. With a diffused cover, the light offers a broad, uniform light distribution that helps minimize shadows and hotspots in industrial workspaces.
Constructed with a fiberglass-reinforced polycarbonate housing, the LIH series is designed to withstand tough conditions. The combination of a clear or diffused polycarbonate lens provides options for optical control according to application needs. This model is rated for harsh environments with NEMA Type 4X and IP66 protection, offering resistance to dust, water ingress, and mechanical impact, which is important for maintaining performance in wet or dusty industrial settings. The fixture is UL listed and supports dimming, allowing integration with compatible control systems for energy efficiency and scene lighting.
Applications for this LED light include areas where hazardous-location compliance is required and robust outdoor or indoor illumination is necessary. The design supports mounting options suitable for pendant configurations, which can aid in ceiling or overhead installations in plant floors, chemical processing areas, or wastewater facilities. When planning maintenance, note the fixture’s electrical compatibility and the need for appropriate mounting hardware to ensure secure installation in hazardous environments.
Features:
- Wattage: 50W
- Lumens: 8000
- Lumens per watt: 160
- CCT: 5000K
- Beam angle: Diffused cover
- Voltage: 100-277VAC / 277-480VAC, 50/60 Hz
- Housing: Fiberglass reinforced polycarbonate
- Driver: Constant Current (CC); Dimmable
- Wattage:
- 50W
- Lumens:
- 8000
- Lumens Per Watt:
- 160
- CCT:
- 5000K
- Beam Angle:
- Diffused Cover
- Operating Temperature:
- -40 Degrees C-45 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
