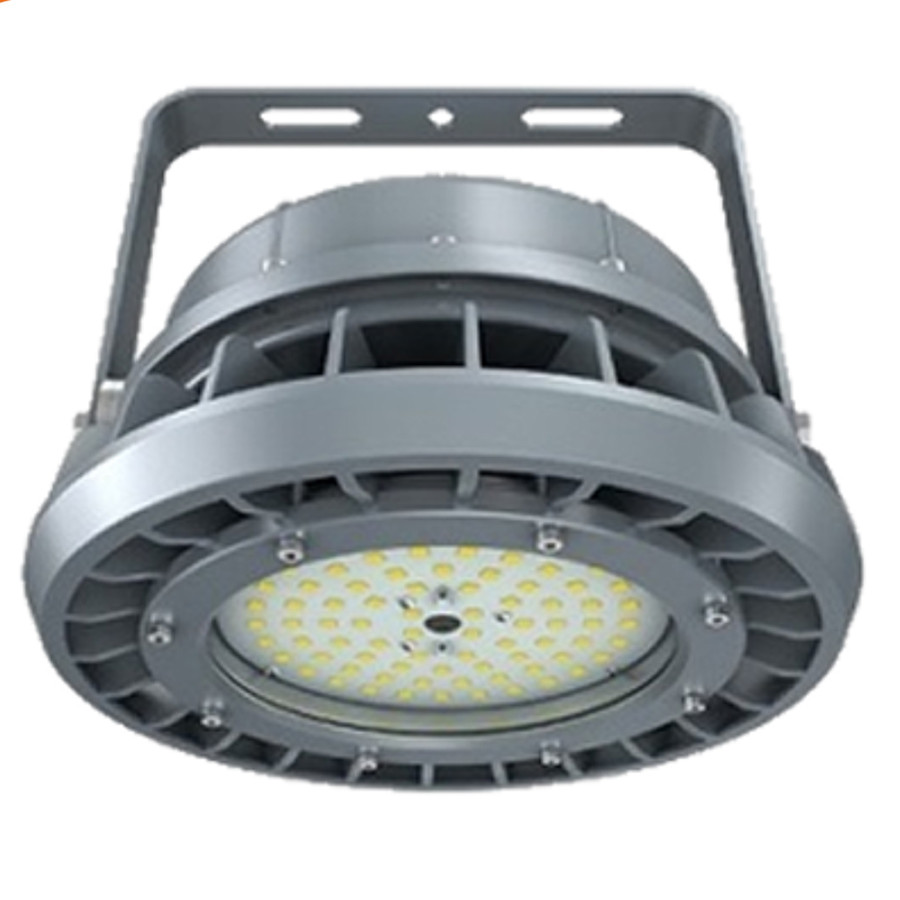

The FME Moon Series Highbay is a rugged LED luminaire designed for demanding industrial spaces, including locations with flammable vapors, gases, or combustible dusts as defined by NEC, ATEX, CNEX, and CSA. With an 80W output delivering 10,800 lumens and a 5,000K color temperature, this unit provides bright, even illumination while maintaining low power consumption. Its performance is supported by a high-efficiency LED board and driver that are replaceable, facilitating maintenance and lifecycle management in challenging environments. The Moon Series is built to withstand harsh conditions, featuring heavy-duty construction and an IP66 rating for dust and water ingress protection as well as IK10 impact resistance, which helps it tolerate vibration and accidental impacts common in industrial facilities.
Key design features include a tempered glass lens for durability, with an opal globe and guard option available to extend light distribution and protect the source in rugged settings. An adjustable U-bracket and standard 1-meter cord provide flexible mounting options, enabling quick installation in a variety of ceiling heights and configurations. The fixture supports dimming, enabling light levels to be scaled to the task and ambient conditions, which can contribute to energy savings and extended equipment life in facilities where lighting demands fluctuate.
This luminaire is UL listed and available in a package size of Each, with a 120° beam angle that delivers broad coverage for open areas such as warehouses and manufacturing floors. Consider its operating temperature range of -40°C to -50°C for extreme environments to ensure reliable performance. When selecting this unit, verify compatibility with your control system for dimming and ensure appropriate installation practices for hazardous-location lighting per local codes.
Features:
- Heavy-duty construction and high impact resistance
- Replaceable LED board and driver
- Standard U bracket and 1 meter cord
- 3 Hour Emergency battery backup available (100-400W sizes)
- Tempered glass lens standard; opal globe and guard option for wider distribution
- Dimmable lighting
- Wattage:
- 80W
- Lumens:
- 10800
- Lumens Per Watt:
- 135
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-50 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
