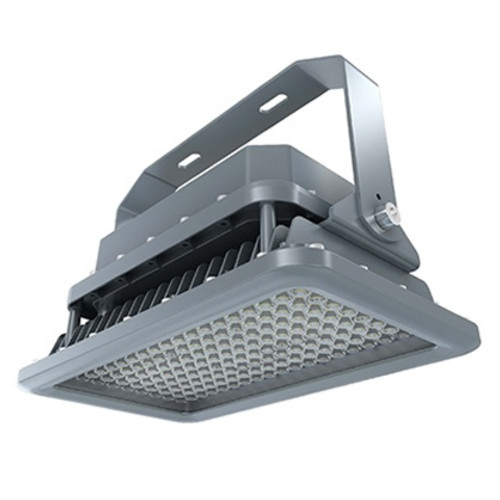

The FME Lighting GALAXY Series 100W LED flood luminaire provides robust illumination for hazardous locations where flammable vapors, gases, or combustible dusts may be present, meeting the needs defined by NEC, ATEX, CNEX, and CSA safety considerations. This G-10-A-C-P-D model delivers 13,500 lumens with a 120-degree beam spread and a correlated color temperature of 5000K, offering bright, neutral daylight-like output suitable for wide-area coverage. The fixture draws 100 watts and achieves a high efficacy of 135 lumens per watt, supporting energy-efficient operation without sacrificing light quality. UL-listed and designed with durability in mind, it features a tempered glass lens and is constructed to withstand demanding environments while remaining dimmable to accommodate varying lighting needs.
Key construction and distinguishing features include heavy-duty, high-impact resistance and an IP66 enclosure rated to protect against dust ingress and powerful water jets, along with IK10 shock resistance. The GALAXY Series incorporates multiple mounting options, including an adjustable U-bracket and pendant configuration, enabling flexible installation in ceilings, walls, or suspended setups. Three connection entry points simplify wiring, and the luminaire is available in both dimmable and non-dimmable configurations, with an emergency battery backup option to maintain illumination during power interruptions when required.
This model is suitable for industrial facilities, warehouses, and other spaces where hazardous location ratings are essential and reliable, high-output lighting is needed. It is important to verify compatible mounting arrangements and electrical supply requirements for your site, as well as choosing dimming and backup options based on application needs. Typical packaging is listed as one unit per package, and the unit is designed for continuous operation within the specified temperature range of -40°C to 40°C, enabling use in a wide range of climates and environments.
Features:
- Heavy-duty and high impact resistance
- Three connection cable entry points
- Dimmable and non-dimmable options available
- Emergency battery backup available
- Tempered glass lens standard
- Wattage:
- 100W
- Lumens:
- 13500
- Lumens Per Watt:
- 135
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-40 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
