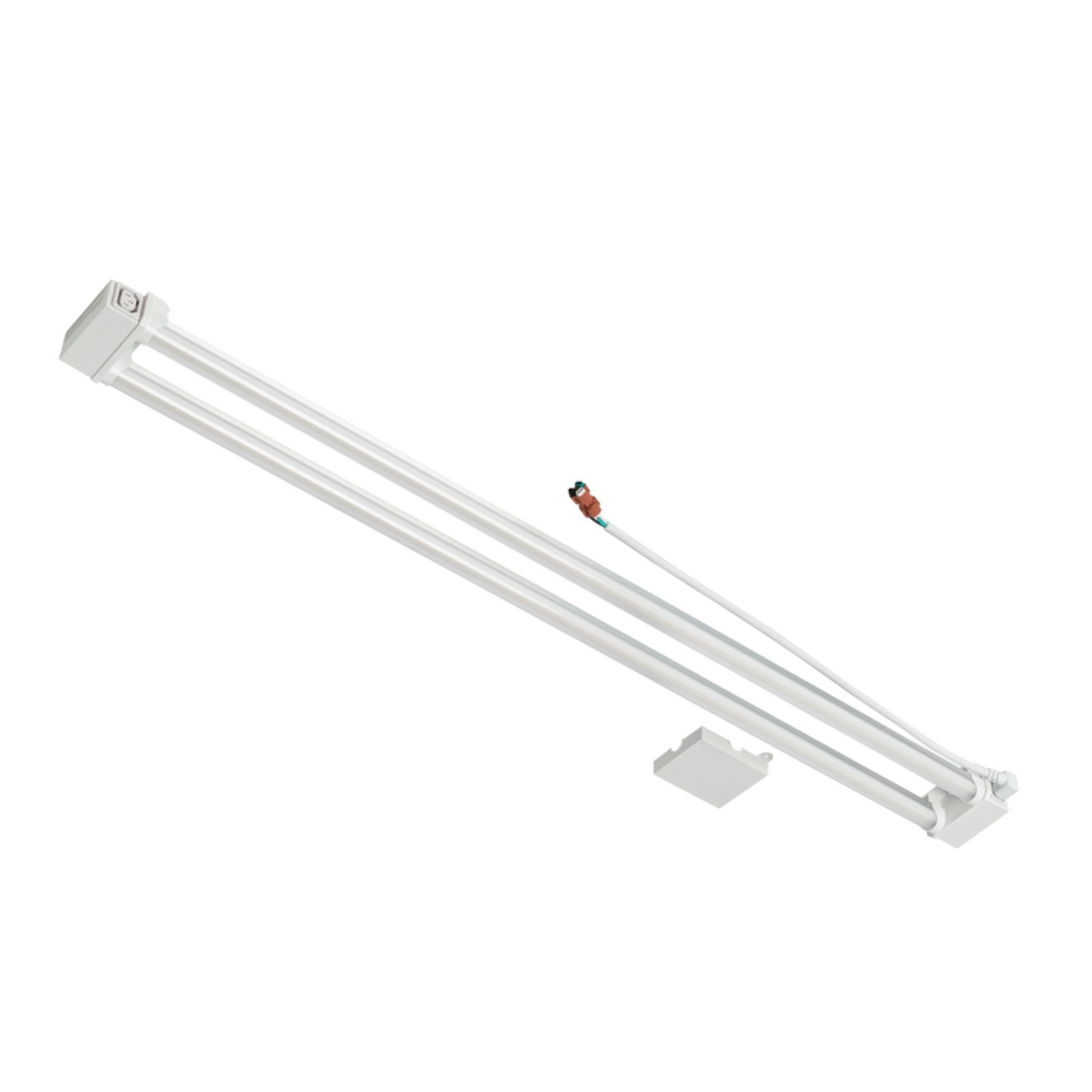

Litetronics’ RFM262T140DL is a 1' x 4' LED magnetic retrofit designed to upgrade fluorescent strip fixtures to LED illumination. This 26-watt, 4000K configuration delivers up to 4080 lumens with an efficiency of approximately 156 lumens per watt, providing flicker-free, consistent light for single fixtures, 8' runs, or continuous row installations. The design emphasizes simple installation, featuring rare earth magnets at both ends to secure the retrofit inside the fixture while leaving hands free for wiring and final alignment before fasteners are applied. The retrofit is offered in a two-tube variant for flexible coverage and daisy-chaining capabilities from a single power source, reducing energy use and maintenance compared with traditional fluorescent lamps.
Key construction and distinguishing features include a compact 1x4 footprint optimized for retrofit applications in educational, office, municipal, and healthcare environments. The unit is rated for a 100,000-hour L70 life, which translates to extended service intervals and predictable performance over time. It is RoHS compliant and listed to DLC standards, underscoring compatibility with eligible retrofit projects and potential energy incentive programs. The product is designed for 120–277V operation and is non-dimmable, with a color temperature of 4000K and a Color Rendering Index (CR I) of 82, supporting neutral, daylight-like illumination suitable for general task lighting.
Practical considerations include: the module is not suitable for wet locations and has no emergency battery or motion-sensor integration. It’s rated for standard environments within a -5°F to 95°F operating temperature range. The package includes one unit per package and is intended as a direct retrofit for existing strip fixtures, enabling straightforward replacement without extensive ballast rewiring. For facility managers, the DLC and RoHS certifications help align with energy-efficiency programs and regulatory requirements, while the five-year warranty provides added assurance on long-term performance.
Features:
- 26 W LED retrofit kit for 1x4 fixtures
- 4080 lumens, 156 LPW at 4000K
- 120-277 V input, non-dimmable
- UL Listed, DLC Listed and DLC Premium Listed
- RoHS compliant
- Long life: 100,000 hours (L70)
- 5-year warranty
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 26
- Lumens:
- 4080 Lumens
- Lumens Per Watt:
- 156
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- CRI:
- 82
- Dimmable:
- No
- UL Listed:
- Yes
- ETL Listed:
- No
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- No
- Hazardous Location:
- No
- Certifications:
- RoHS
- Mounting Type:
- Retrofit
- Motion Sensor Included:
- No
- Emergency Battery Included:
- No
- Operating Temperature Range:
- -5°F to 95°F
- Life Rating L70:
- 100,000 Hours
- Warranty:
- 5 Years
