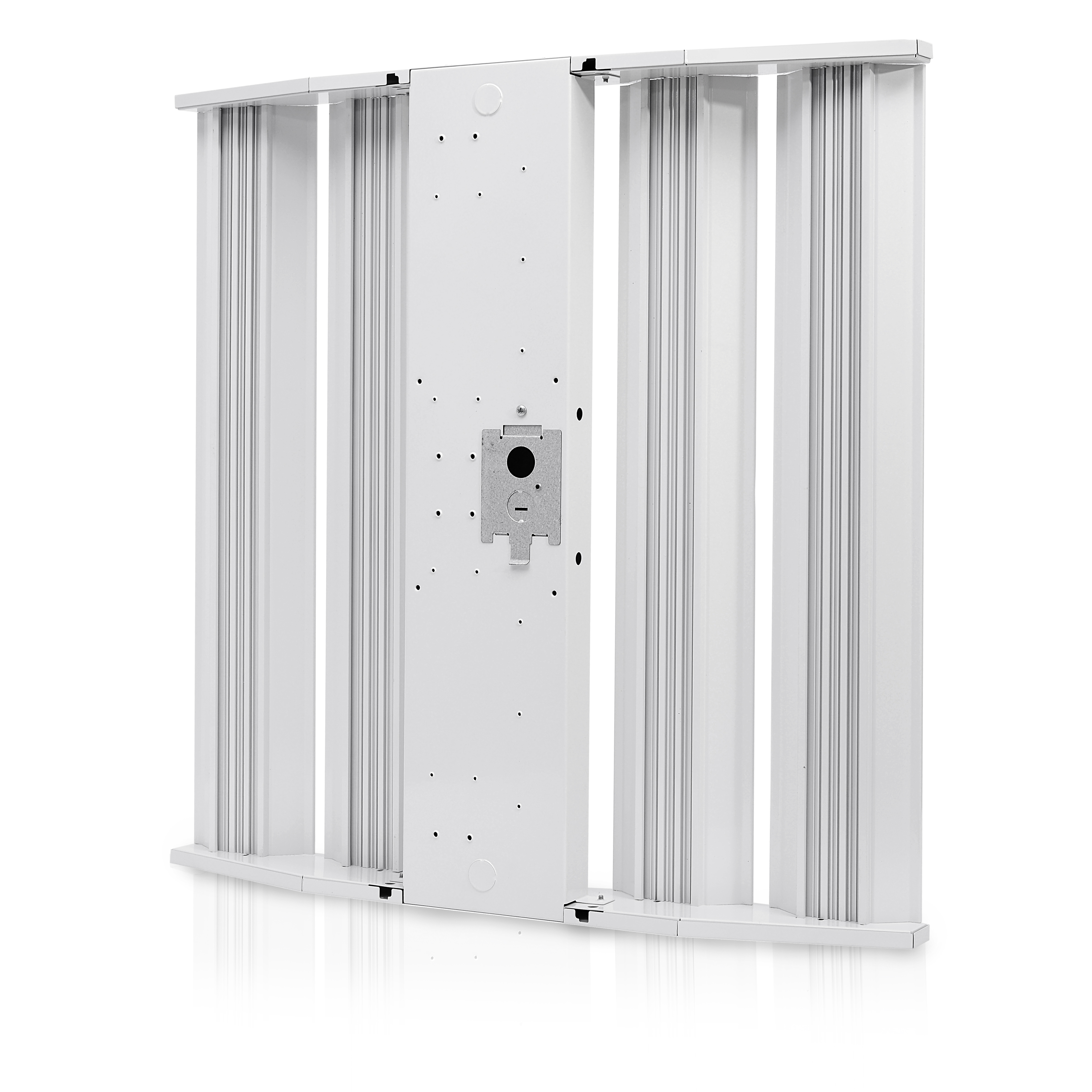

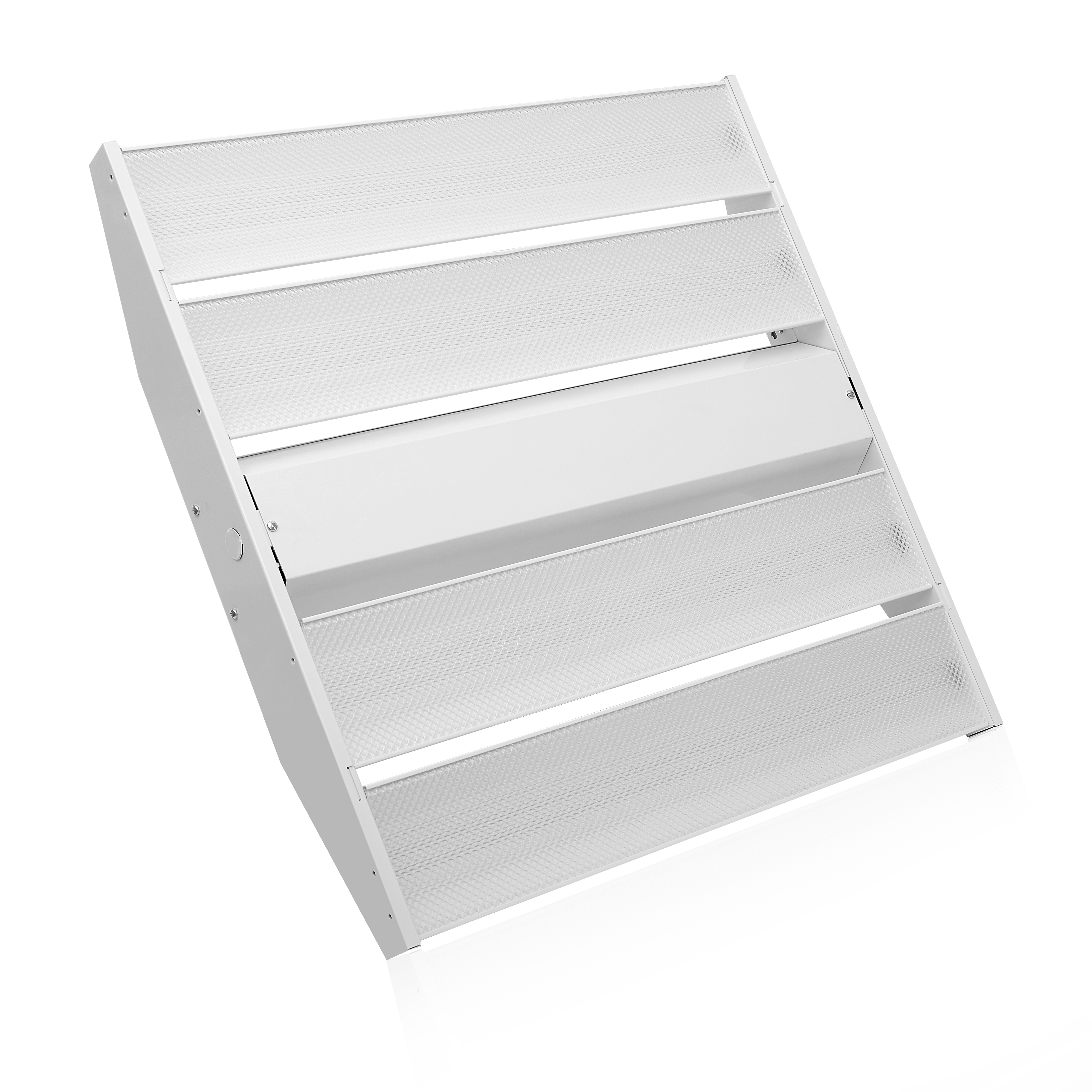

The SunPZone SPZLHB24F320 is a 2x4 LED high bay lighting fixture designed for industrial and commercial spaces that require bright, even illumination with efficient energy use. With a 320-watt LED package and a 5000K color temperature, it provides high lumen output suitable for warehouses, retail floors, offices, schools, healthcare, and hospitality environments. The design emphasizes rapid starting and uniform light distribution while minimizing glare and strobe effects, contributing to safer, more comfortable work and learning spaces.

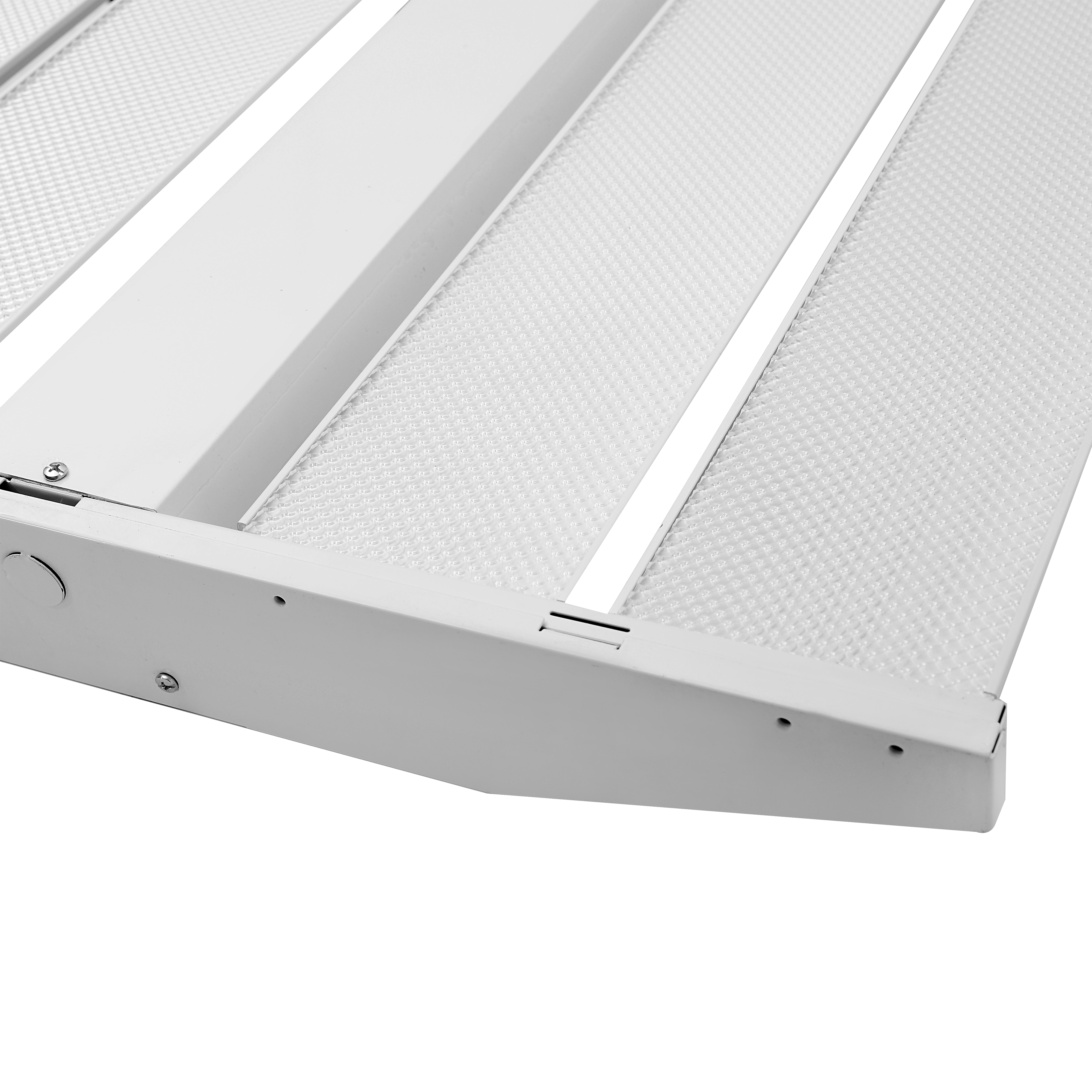

The fixture features an acrylic lens and an efficient cooling design that leverages a thermal column to aid heat dissipation, helping maintain performance over its long service life. It is DLC Listed, LED Premium DLC Listed, ETL Listed, and RoHS compliant, reinforcing its suitability for installations that require recognized efficiency and environmental standards. The unit is described as a 320W luminaire delivering about 64,000 lumens with a reported 200 lumens per watt, which supports vibrant illumination with relatively low energy consumption compared to many conventional lighting options. Note that the provided data specifies 120–277V operation and 5000K color temperature, with a CRI of 85, and the fixture is listed for wet or damp locations depending on mounting and configuration, and it is not UL Listed per the supplied data.
Typical use cases include hospitalities and healthcare settings, offices, warehouses, retail, and education spaces where bright, consistent lighting is beneficial. The product supports mounting via a suspension kit or surface mount, and the package includes one unit per box. When planning installation, consider electrical compatibility with the 120–277V range, the ambient location’s moisture exposure, and whether the fixture will be damp-located or exposed to wet conditions, as these factors influence suitability and compliance with local electrical codes. The DLC and RoHS certifications indicate energy efficiency and environmentally responsible design, which can affect eligibility for rebates and sustainability programs.
Features:
- 2x4 LED linear high bay
- 320W input, 64,000 lumens
- 5000K color temperature
- DLC Listed & DLC Premium Listed
- ETL Listed
- 0-10V dimmable

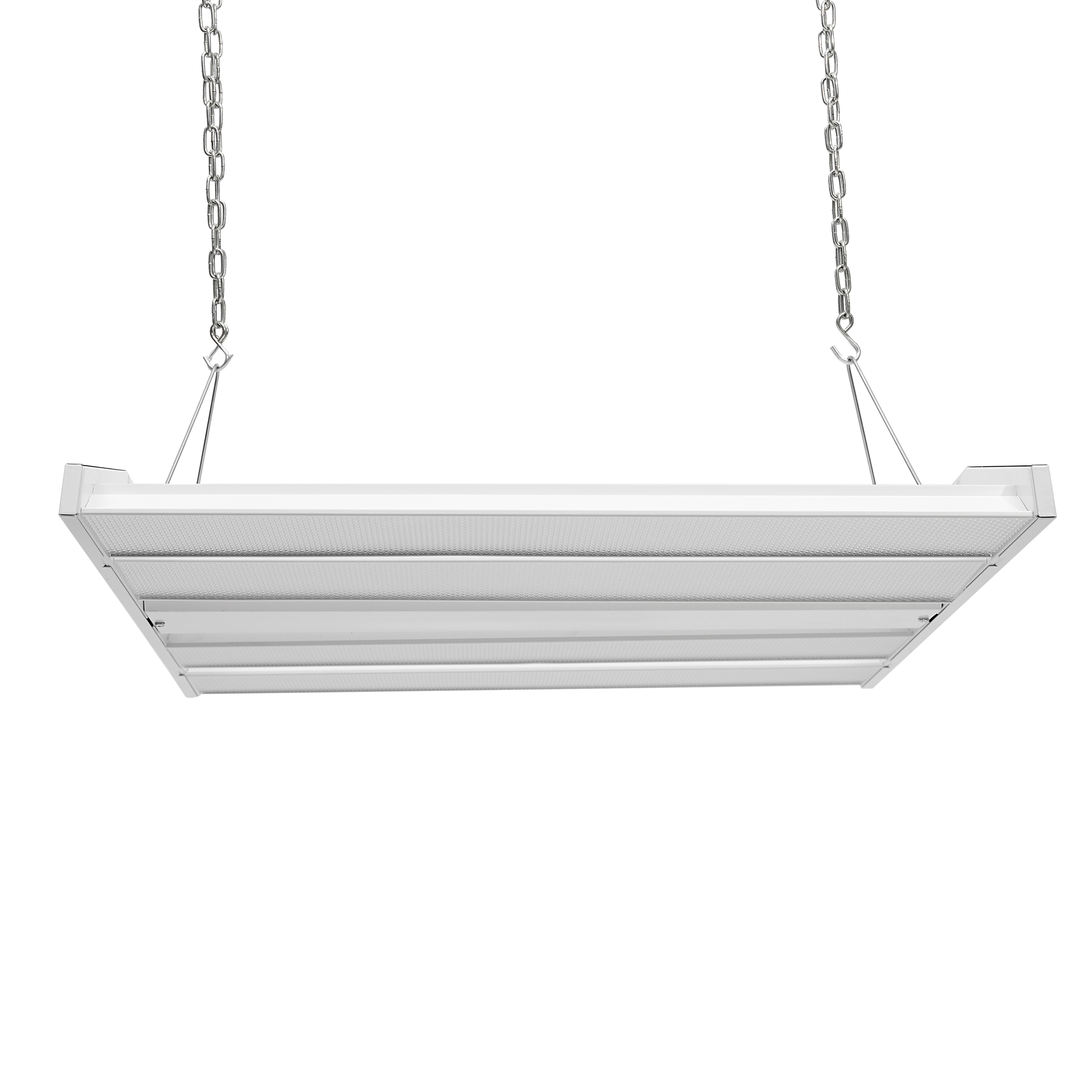

- Damp location rated, suspension or surface mount
- Package Size:
- Each

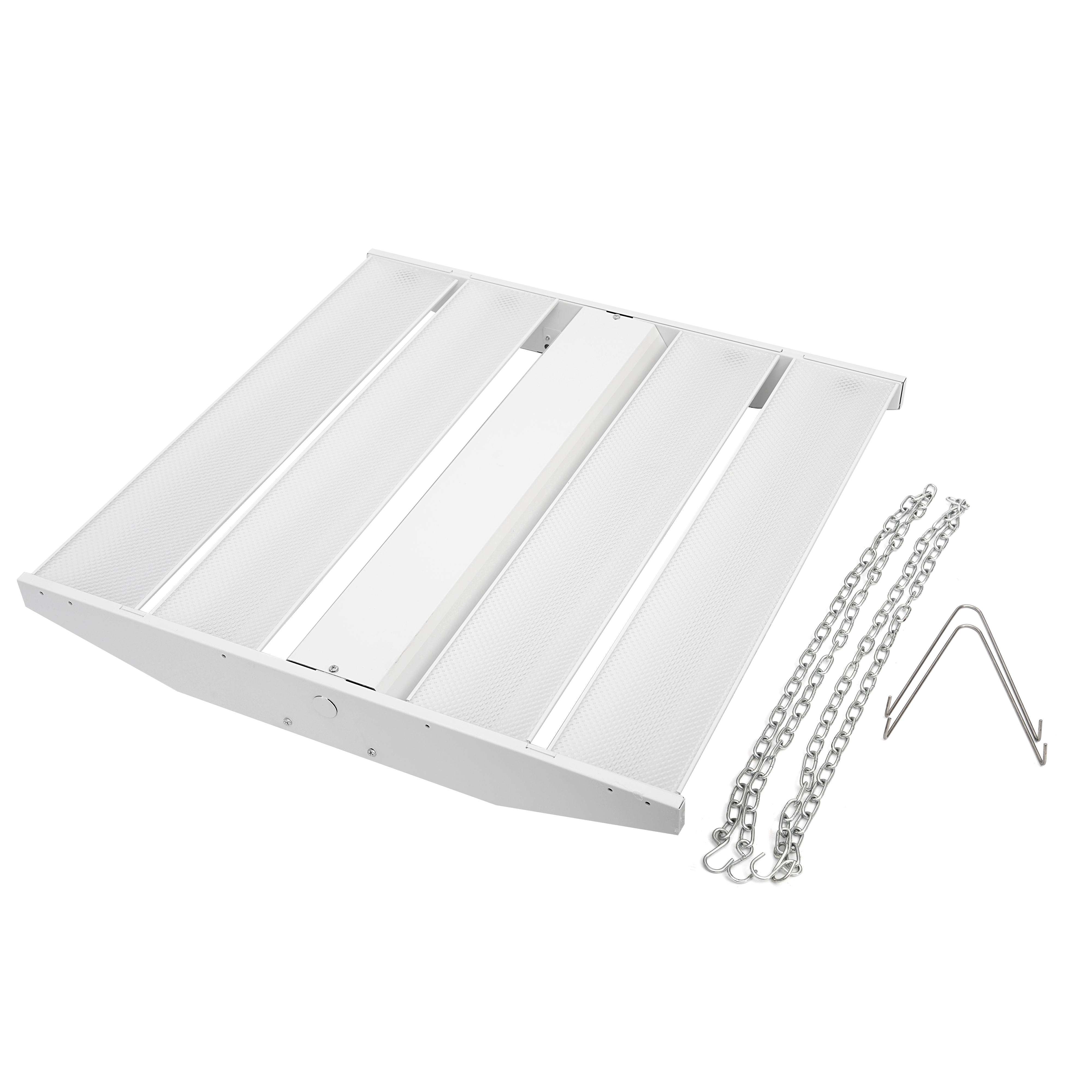

- Package Includes:
- 1/Each
- Wattage:
- 320
- Lumens:
- 64000 Lumens
- Lumens Per Watt:
- 200
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- 85
- Dimmable:
- 0-10V Dimmable
- UL Listed:
- No
- ETL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- Suspension Kit, Surface Mount
