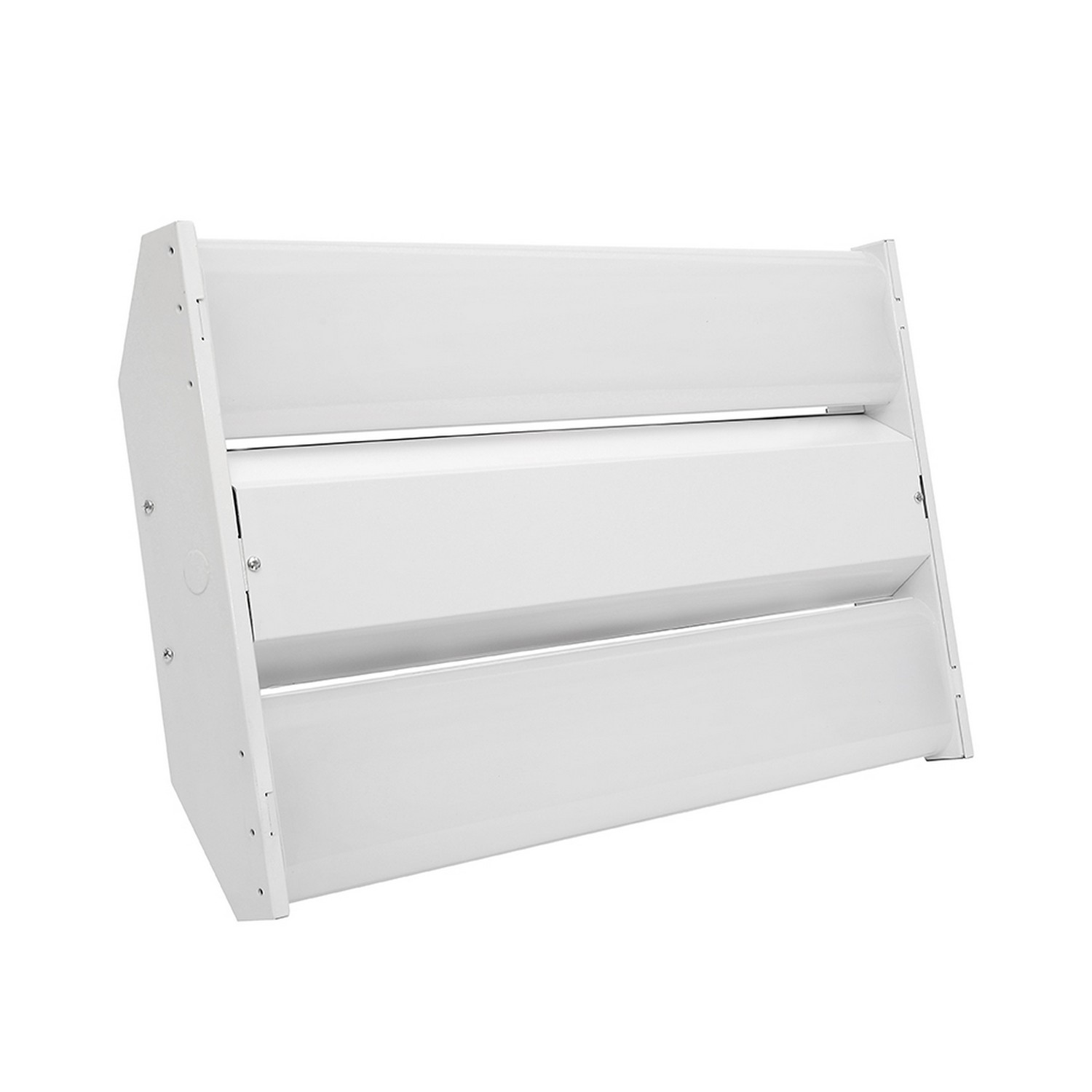

The SunPZone SPZLHB14F165 is a high-output LED linear high-bay luminaire designed for demanding industrial and commercial spaces. With a 165 watt rating, it delivers substantial brightness suitable for large area applications while maintaining a compact, modular form factor that supports flexible installation. The unit is configured for 5000K cool white light to promote visibility and alertness in work environments, aligning with typical task lighting needs in warehouses, retail floors, offices, schools, healthcare facilities, and hospitality settings.
Construction and design features emphasize efficient heat management and long service life. The product integrates a linear LED array with an acrylic lens to provide uniform illumination and minimize glare, supporting quick-start performance and reducing stroboscopic effects. This model is designed for surface or suspension mounting, offering mounting versatility through a suspension kit and other compatible hardware. It is built to operate without hazardous substances like mercury or lead, contributing to environmental safety and compliance considerations.
Practical use considerations include a broad input voltage range of 120–277V, making it adaptable to varied electrical systems. It offers a high luminous output of 33,000 lumens at a measured efficacy of 200 lumens per watt, which helps reduce energy consumption relative to traditional lighting while maintaining bright, even coverage. The fixture is listed for DLC and DLC Premium, ETL certified, and RoHS compliant, which supports energy efficiency incentives and sustainability programs. Certifications and listings guide compatibility with project specs and commissioning requirements, particularly in spaces requiring specified lighting standards. Each unit is packaged as a single installable item, ready for integration into existing or new installations.
Features:
- 165W LED high bay for large-area illumination
- 5000K color temperature for bright, neutral white light
- 120-277V input voltage suitable for multiple electrical systems
- DLC Listed and DLC Premium Listed
- 0-10V dimmable
- ETL Listed, RoHS compliant
- Suspension kit or surface mount mounting option
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 265
- Lumens:
- 33000 Lumens
- Lumens Per Watt:
- 200
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- 85
- Dimmable:
- 0-10V Dimmable
- UL Listed:
- No
- ETL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- Suspension Kit, Surface Mount
