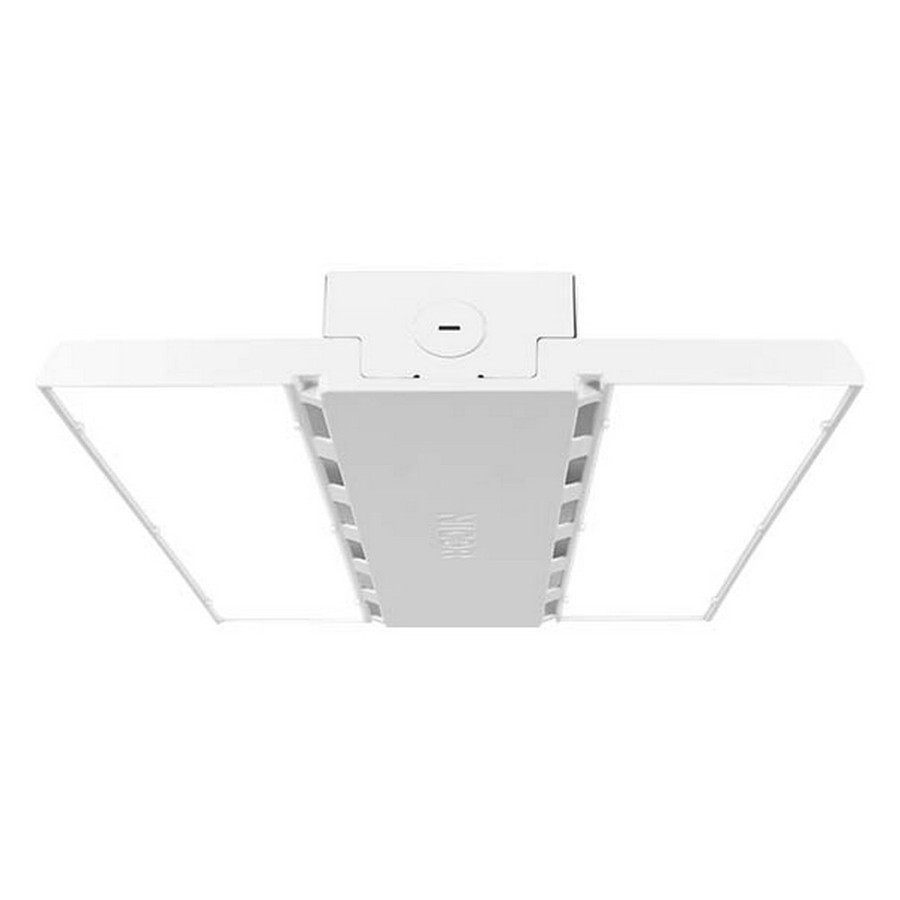

NICOR HML1130U40AS HML1 130W Linear LED High Bay With Sensor Socket 4000K 18228Lm 120-277V 86 CRI 0-10V Dimming

Customer Reviews
SKU:
HML1130U40AS
Weight:
10.00 LBS



$121.36
/ Each

Description

NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high performance HML high bay. With only a 10×14″ footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certified fixture offers a variety of wattage, sensor, and aisle distribution options. It’s durable single-piece cast aluminum design is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • Offers multiple power levels: 100W, 130W, and 150W
  • Operating temperature rating of -4ºF to 131ºF (-20ºC to 55ºC)
  • Input voltage of 120-277V, 277-480V input option available
  • Dimming: 0-10V standard
  • Standard diffused lens
  • Optional aisle lens (45° x 110°) available
  • Optional wide lens (110° x 110°) available
  • CCTs of 4000K and 5000K with >80 CRI
  • Pre-installed sensor socket
  • Standard full-range dimming with compatible 0-10VDC dimmers
  • 12VDC output provides power to off-board sensors or controls
  • V-hook and chain mounting system included
  • Wireguard option available for increased fixture protection
  • Pendant mount and surface mount kits available

Applications:

  • Warehouse & storage
  • Industrial facilities
  • Sports facilities & gyms
  • Manufacturing facilities
  • Retail centers

Downloads:

Product Specifications:

Package Size Each
Package Includes 1/Each
Wattage 129
Lumens 18138 Lumens
Lumens Per Watt 141
Input Voltage 120-277V
Color Temp 4000K
CRI 86
Dimmable 0-10V Dimming
UL Listed Yes
DLC Listed Yes
DLC Premium Listed Yes
Wet Location No
Damp Location Yes
Hazardous Location No
Certifications RoHS
Color Finish White
Mounting Type Ceiling Mount Suspended Mount
Shape Linear
Motion Sensor Included No
Emergency Battery Included No
Operating Temperature Range -4° F to 131° F
Life Rating L70 60,000 Hours
Warranty 5 Years
SKU:
HML1130U40AS
Weight:
10.00 LBS
Package Size:
Each
Package Includes:
1/Each
Wattage:
129
Lumens:
18138 Lumens
Lumens Per Watt:
141
Input Voltage:
120-277V
Color Temp:
4000K
CRI:
86
Dimmable:
0-10V Dimming
UL Listed:
Yes
DLC Listed:
Yes
DLC Premium Listed:
Yes
Wet Location:
No
Damp Location:
Yes
Hazardous Location:
No
Certifications:
RoHS
Color Finish:
White
Mounting Type:
Ceiling Mount
