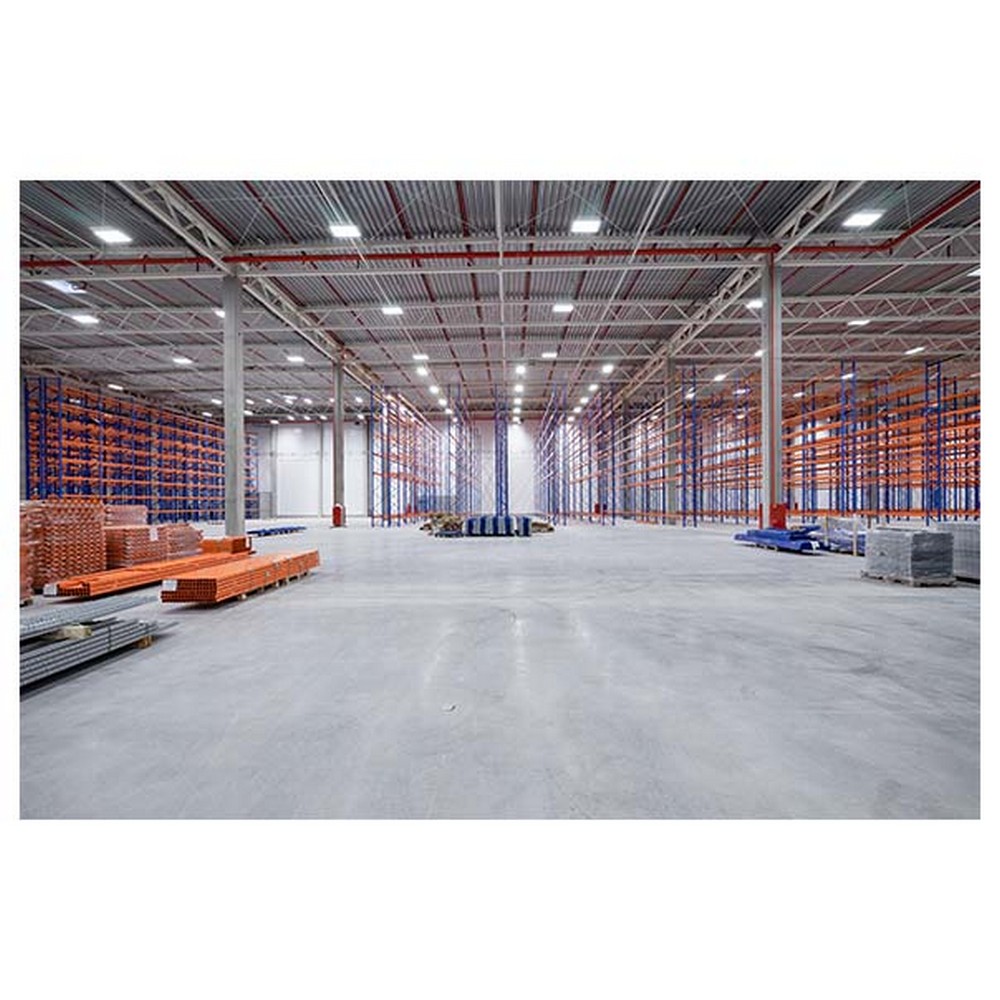

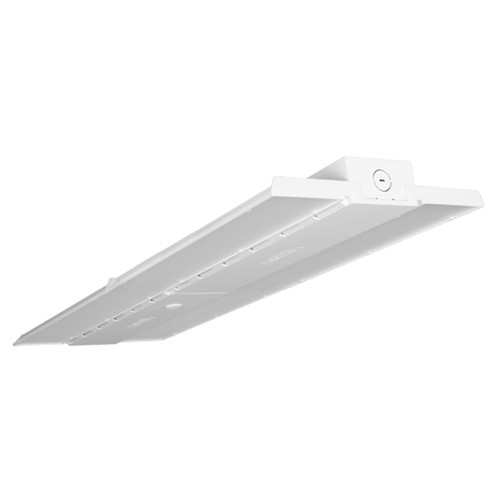

The NICOR HML1100U50AS is a high-output LED high bay designed for industrial and commercial spaces that require bright, reliable illumination with simple installation. This 100-watt-class fixture delivers about 14,200 lumens at a 5000K cool white color temperature, offering strong visibility for warehouses, factories, gymnasiums, and retail environments. With a compact 10 by 14 inch footprint on lower wattage variants, the HML1 series emphasizes a single-person installation approach while maintaining a rugged, single-piece cast aluminum housing that resists the demands of demanding locations.
Key features include 0-10V dimming for compatible lighting control strategies and certifications indicating UL listing, DLC Premium, and RoHS compliance. The fixture is rated for indoor use with damp location suitability and is not intended for wet locations or hazardous environments. The 120-277V input range provides flexibility for mixed electrical conditions, and a high color rendering index of 86 helps differentiate details and color accurately in work areas. The product is designed for ceiling mounting and ships as a single unit per package, suitable for retrofit or new-install applications where low-profile geometry and efficient performance are priorities.
Understanding the technical details matters because lumen output, color temperature, and dimming compatibility directly impact work area clarity, safety, and energy use. The HML1100U50AS aligns with contemporary efficiency and control standards while staying within acceptable ranges for common industrial installations. When planning installations, verify the appropriate mounting approach, dimming compatibility with existing controls, and confirm that indoor damp-location usage meets your site requirements.
Features:
- High-efficiency 100W LED high bay
- 14200 lumens for bright, wide-area coverage
- 5000K color temperature with 86 CRI
- 120-277V input, 0-10V dimming
- UL Listed, DLC Listed and DLC Premium Listed
- Damp location rated

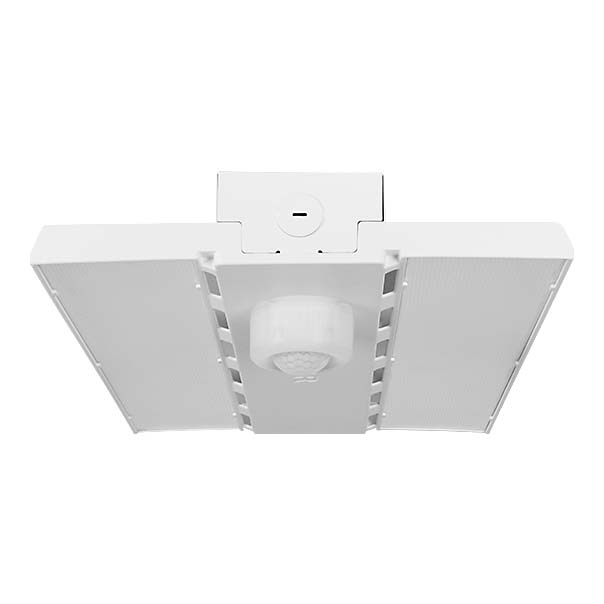

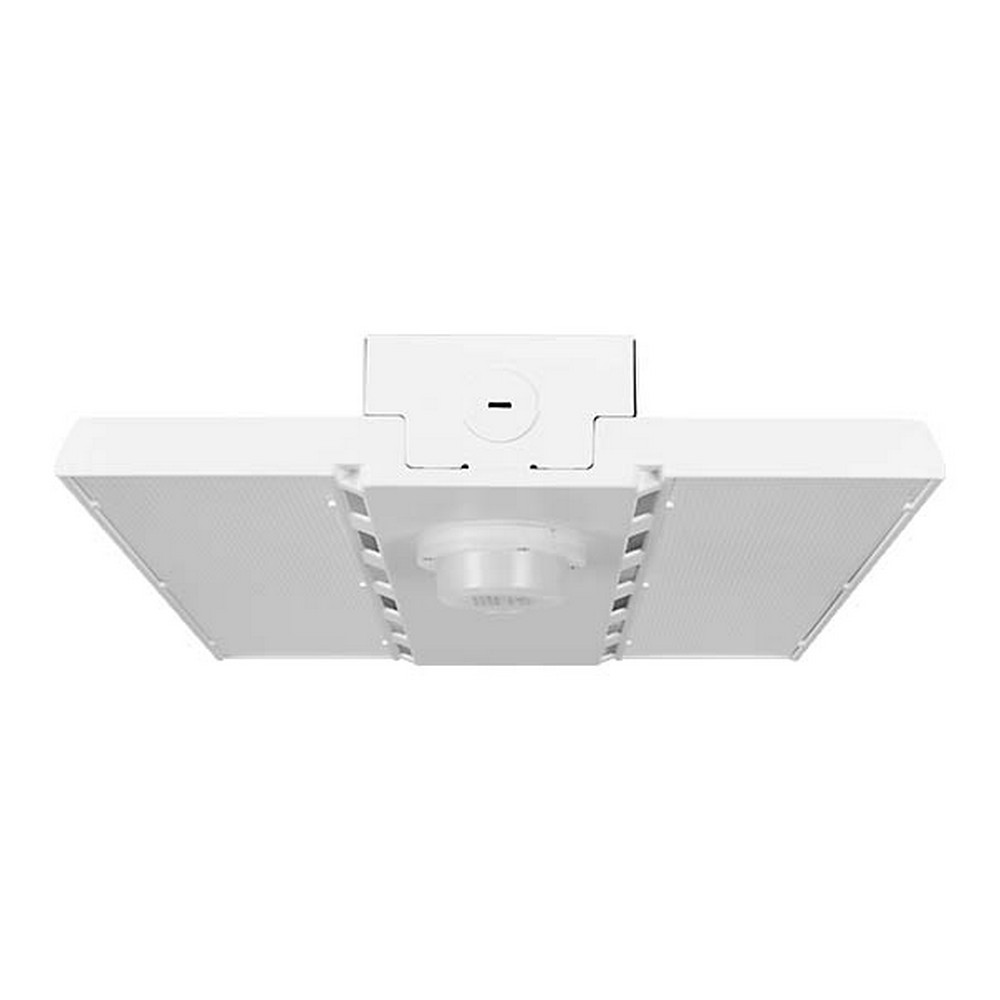

- Cable-free sensor socket compatibility option
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 101
- Lumens:
- 14200 Lumens
- Lumens Per Watt:
- 141
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- 86
- Dimmable:
- 0-10V Dimming
- UL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- Ceiling Mount
