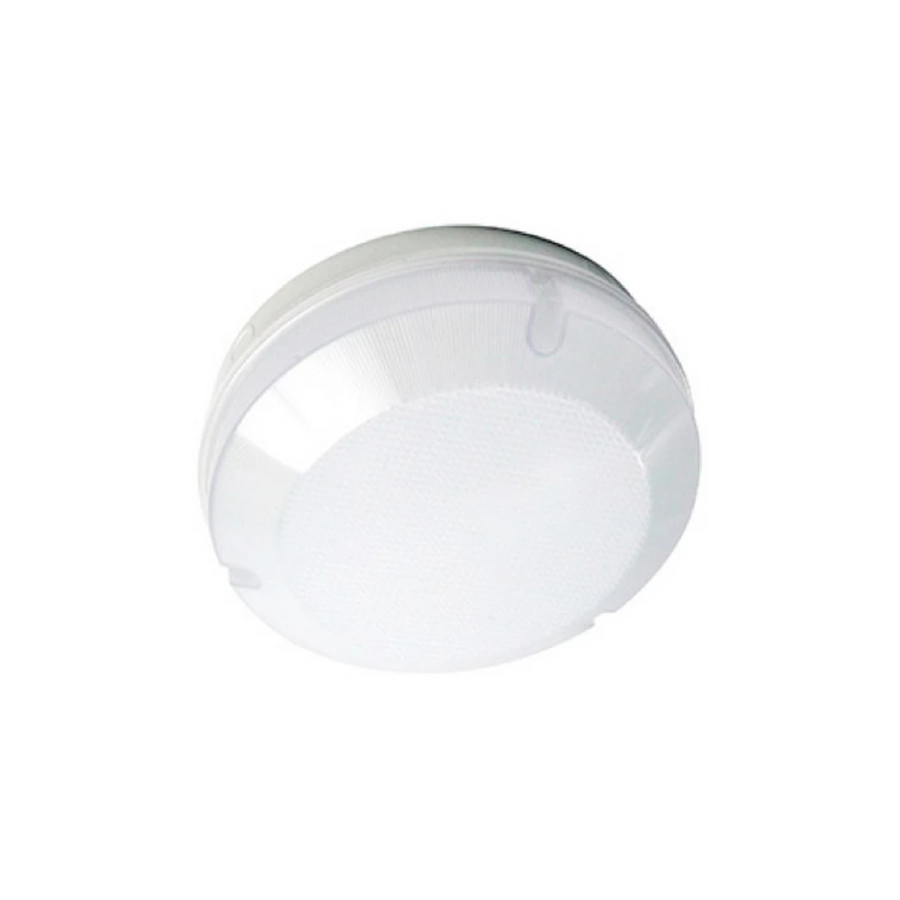

The Light Efficient Design RP-DRO-12N-14L-40K-WC-G2 is a round, surface-mount LED ceiling fixture designed for indoor residential or light commercial spaces. It provides flexible lighting options through wattage and CCT selectability, enabling users to tailor output and color temperature to the application. The integrated LED engine is replaceable (G2), supporting long service life and future-proofing the installation. The unit is rated for 120–277 V operation and is 0–10 V dimmable, allowing compatible lighting controls to modulate brightness as needed.
Construction emphasizes durability and performance in challenging environments: a strong white polycarbonate base paired with a rigid, high-transmission UV-blocking polycarbonate lens helps protect the light while maintaining light quality. The fixture is designed for wet locations and vandal resistance, making it suitable for areas that may be exposed to moisture or incidental impact. With a stated 100,000-hour rated life, it aims to reduce maintenance frequency in long-term installations.
In practical use, the fixture supports four wattage/lumen levels (from 6 W/780 lm to 22 W/3,124 lm) and three color temperatures (30 K, 35 K, 40 K) to match task lighting or ambient needs. Its 12-inch round footprint and 4-inch height align with common ceiling-mounted installations, while Energy Star qualification reflects efficiency standards. This model is identified by the manufacturer part number RP-DRO-12N-14L-40K-WC-G2 and carries a 120–277 V input range suitable for varied electrical systems. Consider packaging and mounting guidance from the manufacturer for proper installation and maintenance steps.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-selectable: 3000K / 3500K / 4000K
- Wattage selectable: 6W to 22W (780 lm to 3,124 lm)
- Watertight / wet location rated
- Vandal resistant
- Strong white polycarbonate base
- UV-blocking high-transmission lens
- Energy Star
- 100,000 hour rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- RP-DRO-12N-14L-40K-WC-G2
- UPC:
- 844006015763
- Lumens:
- 3,124 Lumens
- Lumens Per Watt:
- 142
- Wattage:
- 22 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Lamp / Base Type:
- Integrated LED
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Energy Star Rated, Wattage Selectable, Wet Location Rated
- Diameter:
- 12
- Height:
- 4
- Package Size:
- Each
