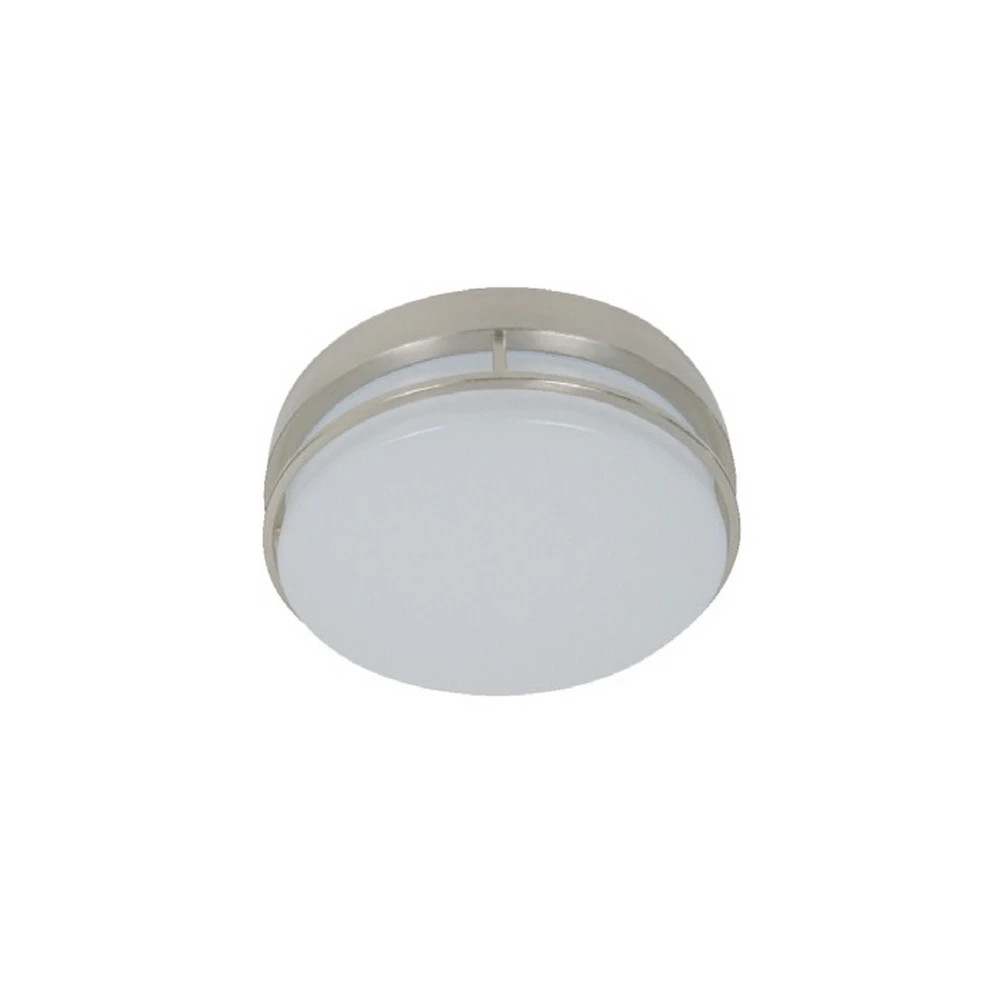

Light Efficient Design's RP-DRD-14N-14L-40K-WC-G2-A is a 14-inch round, surface-mount LED ceiling fixture designed for indoor residential and light commercial spaces. The luminaire combines wattage and CCT selectability with a single, compact form factor, enabling on-site adjustment between different light outputs and white color temperatures. This flexibility allows the same fixture to adapt to varying tasks and ambiance without swapping luminaires, while leveraging long-life LED technology for reduced maintenance intervals.
Constructed with a thick metal base and brushed nickel finish, the unit features a trim ring and hardware that contribute to a clean, contemporary appearance. The acrylic lens is treated to provide high optical transmission while blocking UV, helping to maintain light quality over time. The fixture operates on an input voltage of 120–277V and supports 0–10V dimming, enabling smooth, compatible control with common dimming circuits. Rated at 100,000 hours, this design emphasizes longevity in demanding environments, and the selectable wattage (from 6W up to 22W) yields lumen outputs ranging up to 3,124 lumens, giving installers the ability to balance brightness with energy use.
Ideal use cases include indoor ceiling installations where retrofit or new construction requires adjustable lighting in offices, retail spaces, or residential settings. With Energy Star recognition noted in the product data, it can contribute to energy-efficiency goals and potential utility program incentives. Compatibility considerations include its round 14-inch diameter, 3.5-inch height profile, and 120–277V, 0–10V dimming compatibility—factors that influence lineup integration, ceiling cutout, and dimming strategy. The LED engine is designed to be replaceable (G2), supporting future maintenance paths and continued performance over time.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-selectable: 3000K, 3500K, 4000K
- Wattage selectable: 6W (780 lm) to 22W (3,124 lm)
- Thick metal base with brushed nickel finish
- Flexible UV-blocking acrylic lens
- Energy Star rated
- -4°F to 140°F operating range
- 100,000 hour rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- RP-DRD-14N-14L-40K-WC-G2-A
- UPC:
- 844006011123
- Lumens:
- 3,124 Lumens
- Lumens Per Watt:
- 142
- Wattage:
- 22 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Color:
- Bright Nickel
- Lamp / Base Type:
- Integrated LED
- Rated Hours:
- 100,000 Hours
- Beam Angle:
- 120 Degrees
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Energy Star Rated, Wattage Selectable
- Diameter:
- 14
- Height:
- 3.5
- Package Size:
- Each
