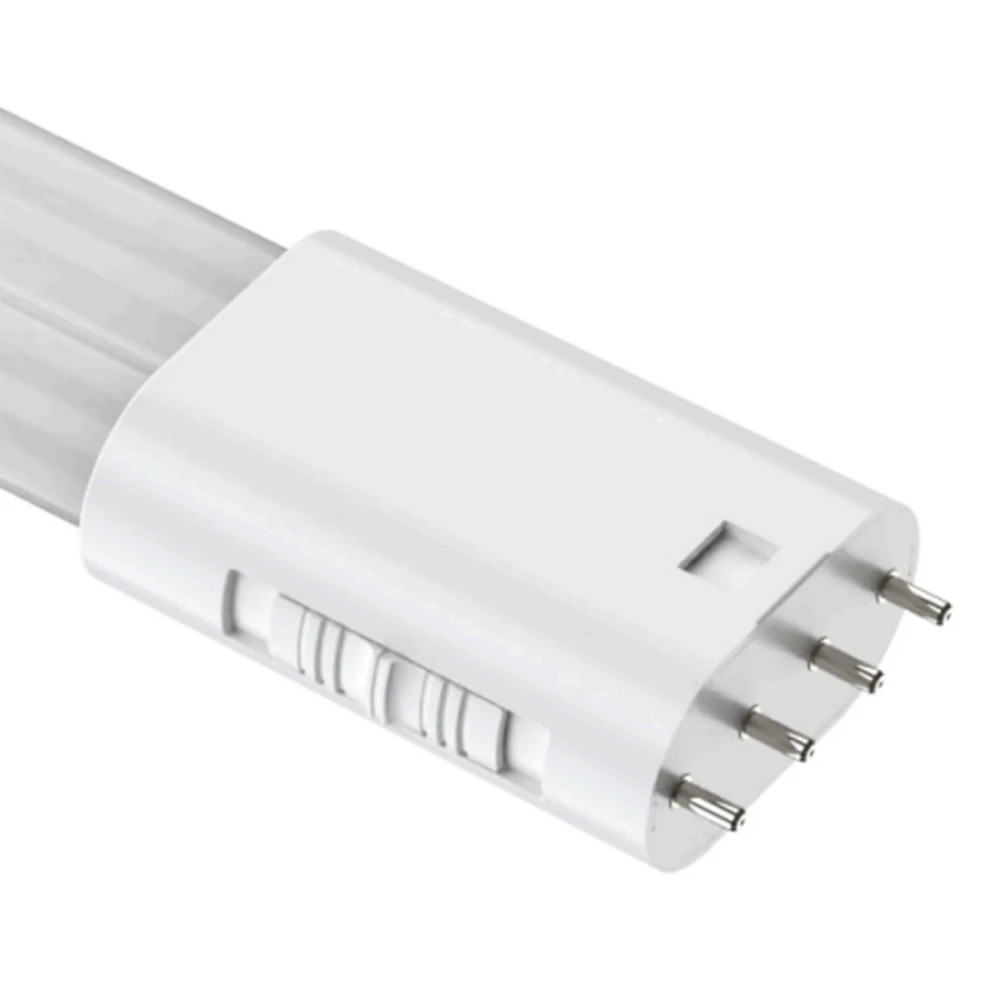

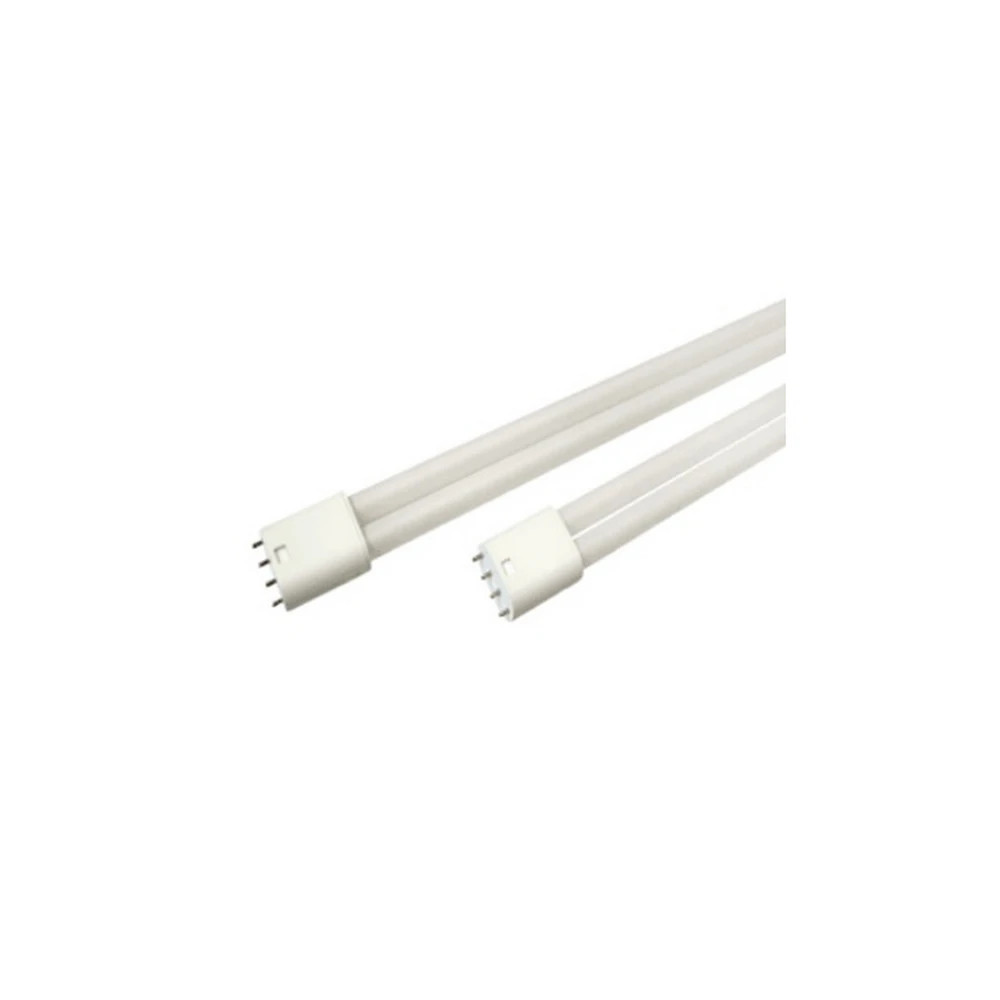

The Light Efficient Design LED-7344-FC-G3 is a 12-inch, 10-watt LED PLL lamp designed to replace traditional 4-pin 2G11 base CFL PLL lamps. It operates on 120–277V with ballast-bypass (Type-B) wiring, providing direct line voltage to the lamp for simplified installation and reduced ballast-related maintenance. The lamp supports multiple correlated color temperatures (CCTs) selectable via an on-lamp switch, allowing you to tailor the light output to the application—ranging from 3000K to 6500K. A glass lens helps resist aging, yellowing, and bending, contributing to stable optical performance over time. With an instant-on design and a rated life of 50,000 hours, this fixture is suited for commercial and industrial spaces where continuous operation and reduced downtime are critical. The 140-degree beam angle distributes light broadly, and the unit is rated for enclosed fixtures, expanding its versatility in tightly enclosed luminaires common in retrofit projects. Its compact dimensions (approximately 12.2 inches long, 1.7 inches wide, and 0.92 inches high) align with the physical footprint of typical 2G11-based luminaires, aiding straightforward replacement without fixture modification. It is suitable for environments where operating temperatures range from -4°F to 113°F, ensuring reliable performance across a wide range of climate conditions.
Because this LED PLL lamp is designed to bypass ballasts, it requires correct wiring for direct mains operation. Verify compatibility with your existing 2G11 socket and ensure the fixture or enclosure permits ballast bypass and supports 120–277V input. The lamp is sold individually, and its relatively long life and immediate full brightness can contribute to reduced maintenance frequency in busy facilities. For best results, confirm that the application’s voltage, CCT preference, and fixture type align with the product’s specifications before ordering.
Features:
- 120-277V ballast-bypass (Type-B) operation
- Compatible with 4-pin 2G11 sockets
- CCT selectable via lamp switch (3000K, 3500K, 4000K, 5000K, 6500K)
- Glass lens prevents aging, yellowing, and bending
- Instant on, no warm-up time
- Enclosed fixture rated
- 50,000-hour rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-7344-FC-G3
- UPC:
- 197810022756
- Lumens:
- 1,250 Lumens
- Wattage:
- 10 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 3500K, 4000K, 5000K, 6500K
- Lamp / Base Type:
- 2G11
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 140 Degrees
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated
- Length:
- 12.2
- Width:
- 1.7
- Height:
- 0.92
- Package Size:
- Each
