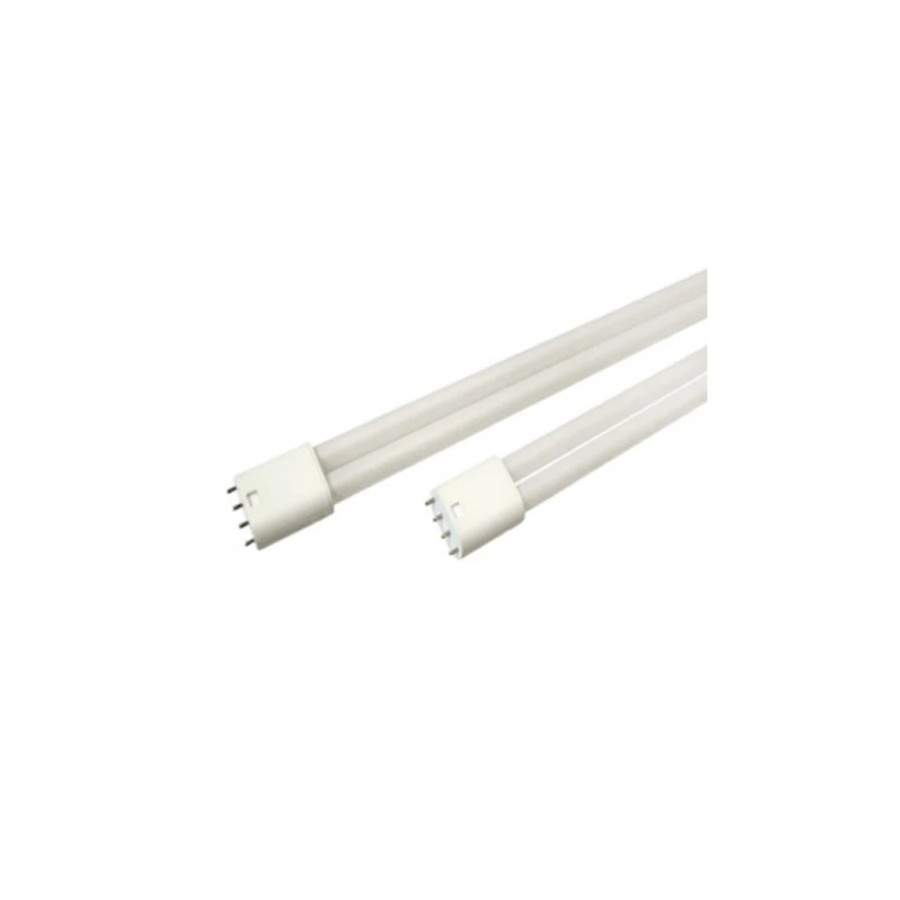

Light Efficient Design LED-7343-FC-G3 is a ballast-bypass LED replacement for 4-pin 2G11 CFL PLL lamps, designed to operate directly on line voltage (120-277V). With a 16 W power draw, it delivers up to 2,000 lumens across a selectable color temperature range, offering flexibility to match existing lighting needs. The lamp is configured for an instant-on light output and features a 140-degree beam spread, helping to illuminate standard fixtures without requiring a ballast. A glass lens helps resist aging and yellowing, contributing to consistent light quality over time. The unit is rated for enclosed fixtures and supports a wide operating temperature range, enabling use in diverse environments.
Constructed to replace traditional 4-pin 2G11 CFL PLL lamps, this lamp conducts ballast bypass operation, meaning it connects directly to the line voltage supply. The color temperature can be switched on the lamp to select from 3000K, 3500K, 4000K, 5000K, or 6500K, allowing on-site adjustments to suit task lighting or ambient conditions. With a rated life of 50,000 hours, the LED-7343-FC-G3 is positioned as a long-life alternative to legacy CFL-PFL fittings while maintaining compatibility with existing 2G11 sockets and fixture configurations.
Key practical considerations include ensuring the fixture is properly rated for ballast-bypass operation and that the line voltage falls within the 120-277V range. The lamp’s physical dimensions (approximately 15.9 inches long, 1.7 inches wide, 0.92 inches high) help determine fit within the specific luminaire housing. Packaging is listed as each unit, simplifying stocking and single-unit replacement planning. This model is appropriate for facilities seeking an energy-efficient retrofit for CFL PLL systems and those needing flexible CCT options without changing ballast hardware.
Features:
- 120-277V ballast bypass (Type-B) operation
- Compatible with 4-pin 2G11 sockets
- Easily switch between CCTs via a switch on the lamp
- Glass lens resists aging, yellowing and bending
- Instant on with no warm-up time
- Enclosed fixture rated
- 50,000 hours rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-7343-FC-G3
- UPC:
- 197810022749
- Lumens:
- 2,000 Lumens
- Wattage:
- 16 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 3500K, 4000K, 5000K, 6500K
- Lamp / Base Type:
- 2G11
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 140 Degrees
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated
- Length:
- 15.9
- Width:
- 1.7
- Height:
- 0.92
- Package Size:
- Each
