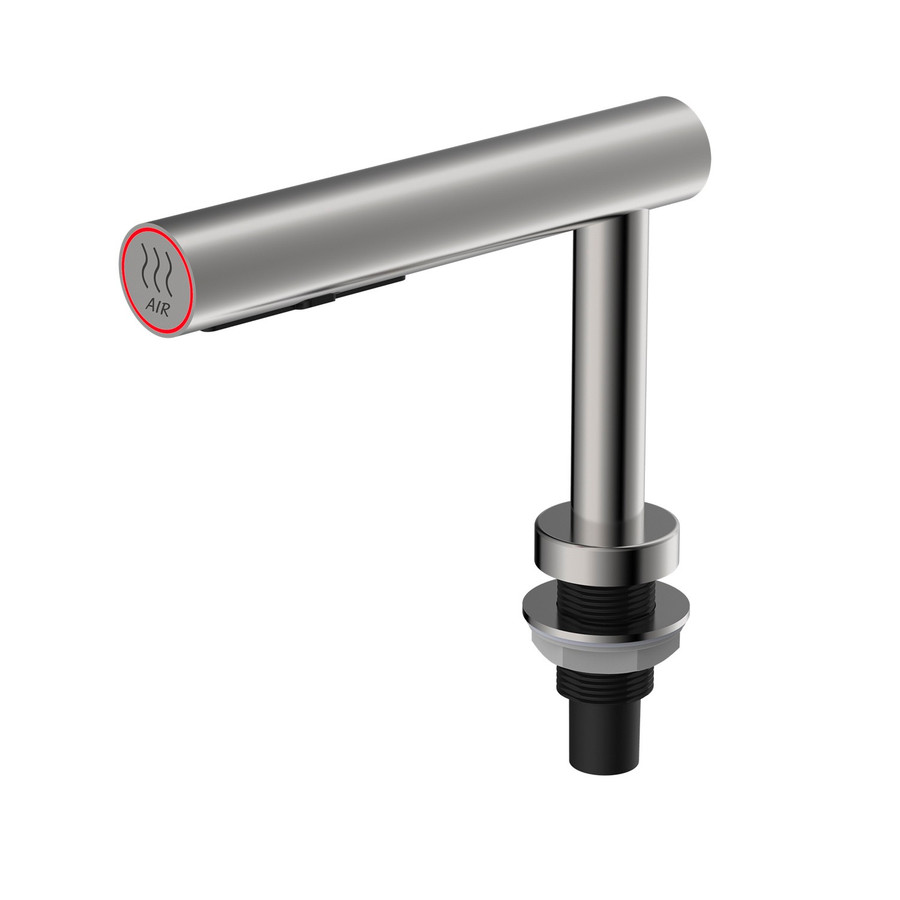

The Palmer EcoTap High Speed Hand Dryer, model PALHD0936-09, is designed to deliver rapid hand drying in commercial washrooms while promoting a cleaner, clutter-free sink area. It uses an intelligent temperature control system and a smart air outlet design to optimize drying performance, with a stated dry time of approximately 10–15 seconds and a low-maintenance, easy-to-clean profile. The brushed stainless finish combines durability with a modern look, and the unit includes a carbon filter assembly to support air quality in busy restrooms.
This hand dryer is configured for touchless operation, contributing to a more hygienic user experience by reducing contact points. Its 220–240V power requirement and adjustable settings enable a balance of performance and energy use, while the IP35 drip-proof rating provides protection against water ingress in typical washroom environments. The product’s compact deck-mount footprint fits standard installation zones, with a standard deck opening diameter of 35 mm, and it features dual ball bearing brush-type motors for reliable operation in high-traffic areas.
Practical considerations include the unit’s sound and power adjustment options, which allow facilities to tailor operation to comfort and noise constraints. The PalmHD0936-09 is packaged as a single unit and designed for straightforward installation in commercial restrooms, cafeterias, healthcare facilities, and workplace environments where quick drying and minimal splash are priorities. Maintenance should consider periodic inspection of the carbon filter and ensuring the unit remains free of obstructions to airflow.
Features:
- Creates a cleaner, clutter-free washroom experience
- Excess water goes right into the sink
- 10-15 second dry time
- Easy to clean and low maintenance
- Intelligent temperature control technology
- Smart air outlet design
- Sound and power adjustment
- Voltage & Amps:
- HD0935-09 - 220/240V / 3.8-4.2A
- RPM:
- 22,000 - 29,000, Adjustable
- Watts:
- 500W
- Drip Proof:
- IP35
- Isolation:
- Class 1
- Sound Level:
- MIN 68.5dB to 70.5dB MAX @1m
- Air Output Temperature:
- 122°F (57°C), Adjustable, Ambient Temp 77°F (25°C)
- Operating Airflow:
- 16,535-19,882 LFM, Adjustable
- Thermal Protection:
- Thermostat shuts off at 203°F (95°C), Heater shuts off at 185°F (85°C)
- Motor Type:
- Brush Type, Dual Ball Bearings
- Touchless:
- Yes
- Color:
- Brushed Stainless
- Width:
- 1.97
- Height:
- 6.69
- Depth:
- 8.66
- Weight:
- 13.89
- Package Size:
- Each
- Case Quantity:
- 1
