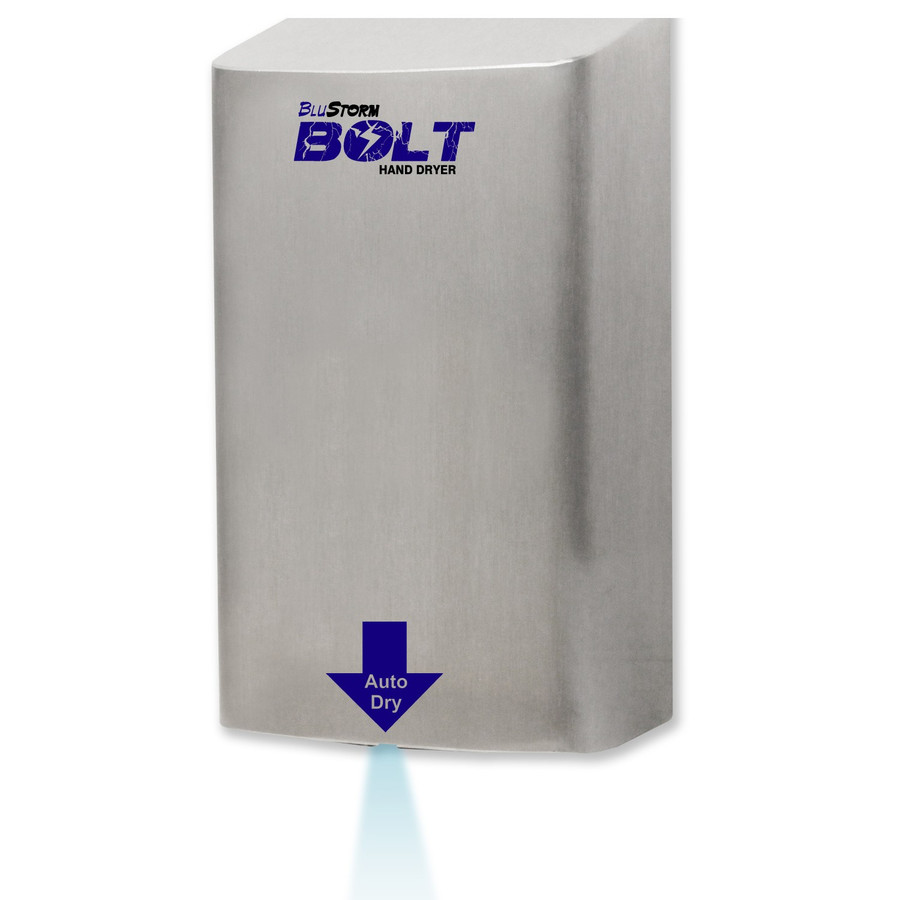

The Palmer BluStorm Bolt High Speed Hand Dryer is a compact, wall-mounted unit designed for fast, touchless hand drying in commercial settings. It features patented parallel dual air outlets and a wide drying area, supporting efficient hand drying in about 15 seconds. The unit conserves space by protruding less than 4 inches from the wall and includes a blue action light that indicates sensor range and maximum drying efficiency, helping users locate the hand dryer quickly. The design emphasizes a clean appearance with bottom-cover screws for a streamlined, easy-to-service profile.
Key operational details have been implemented to balance performance and reliability. The hand dryer offers adjustable sensor and air speed, with a configurable airflow that can reach up to 158 mph and an air temperature around 131°F (55°C) at typical operating conditions. It runs on 220–240V and 900W (450W with heater off), and includes a heater with an on/off switch for energy management. Safety and maintenance considerations are evident in features such as thermal protection that shuts down the motor at 275°F (135°C) and the heater at 185°F (85°C), as well as a drip-proof rating of IP23. The unit is designed for simple maintenance and service, and it is configured for touchless operation to reduce germ transmission.
Practical use notes include its compact footprint suitable for restrooms with limited wall depth, straightforward user interaction via the sensor, and the ability to adjust air speed to suit different application needs. The package includes per-unit dimensions and weight suitable for planning installation, with a recommended 220/240V power supply and consideration for mounting presence at appropriate heights for accessibility. This model is offered in brushed stainless steel for a durable, easy-to-clean finish, and is shipped in a standard single-unit configuration with case quantities listed for procurement planning.
Features:
- Adjustable sensor and air speed
- Dries hands in 15 seconds
- On/Off heater switch – runs on only 4 amps with heater off
- Patented parallel dual air outlets for high drying efficiency and quiet operation
- Thin profile and wall protrusion under 4 inches
- Blue action light indicates sensor range and maximum drying efficiency
- Adjustable air speed: 79–158 mph
- Voltage & Amps:
- 220/240V / 1.91-3.82A
- RPM:
- 16,000 - 29,000, Adjustable
- Watts:
- 900W (450W w/ heater off)
- Drip Proof:
- IP23
- Isolation:
- Class 1
- Sound Level:
- 76.2dB
- Air Output Temperature:
- 131°F (55°C), Adjustable, Ambient Temp 77°F (25°C)
- Operating Airflow:
- 21,243 LFM
- Thermal Protection:
- Motor shuts off at 275°F (135°C), Heater shuts off at 185°F (85°C)
- Motor Type:
- 11/16HP, Brush Type, Dual Ball Bearings
- Touchless:
- Yes
- Color:
- Brushed Stainless
- Width:
- 5-63/64
- Height:
- 10-9/16
- Depth:
- 3-15/16
- Weight:
- 8.4
- Package Size:
- Each
- Case Quantity:
- 4
