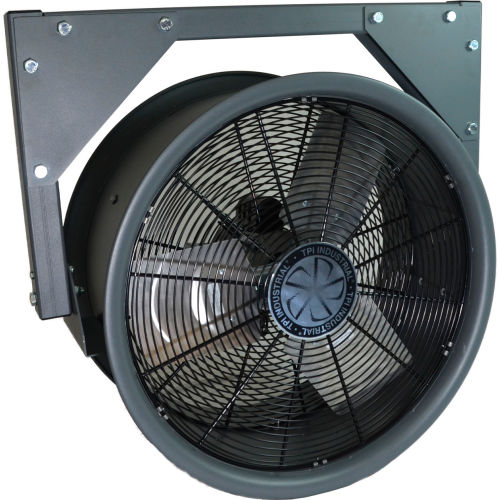

The TPI HV18120V is a high velocity air circulator designed to move large volumes of air in industrial spaces. With a direct-drive 1/2 H.P. motor and a three-blade, 18-inch aluminum blade configuration, this unit delivers up to 3000 CFM at 60 Hz while operating from a 120 V single-phase power source. The 20-gauge steel housing provides a sturdy enclosure, and the gray epoxy textured powder coat finish helps resist corrosion and wear in demanding environments. The integrated yoke mounting bracket offers five adjustable settings at 15° increments, enabling angled airflow toward hard-to-reach areas or work zones, and the unit is compatible with optional wall or column mounting for flexible installation. The front and rear grills are manufactured to OSHA considerations for barrier safety, and the unit uses Totally Enclosed Air Over (TEAO) class B automatic thermal protection with ball bearings for reliable operation under continuous duty; the assembly is designed for industrial use and is Made in USA, backed by a two-year limited warranty.
This drum-style circulator is suitable for warehouses, manufacturing floors, docks, and large work areas where robust airflow is needed to improve ventilation, control heat buildup, or assist with drying and curing processes. The unit’s 27-3/8 inch width, 13-1/2 inch depth, and 26 inch height create a compact footprint for mounting in beam, ceiling, column, or wall locations, with a weight around 45 pounds. The motor runs at 1725 RPM for steady, broad airflow, and the device operates on 373 watts with a 5-amp draw, ensuring a predictable electrical load in a facility’s electrical planning. Maintenance is minimized by a TEAO design and a metal housing, though periodic checks of the grills and mounting hardware are recommended for continued performance.
Features:
- 18" High Velocity Drum Fan
- 3000 CFM for rapid air movement
- 20 Gauge Steel Housing
- Yoke Bracket with Five Adjustable Settings
- OSHA Approved Front and Rear Grills
- Made in USA
- Two-Year Limited Warranty
- Width:
- 27-3/8 in
- Depth:
- 13-1/2 in
- Height:
- 26 in
- Weight:
- 45 lbs
- Gauge:
- 20
- Cooling Area:
- 280 in²
- Fan Diameter:
- 18 in
- Max Ambient Temperature:
- 115 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- TEAO
- Mounting Location:
- Beam, Ceiling, Column, or Wall
- Wattage:
- 373 W
- Material:
- Aluminum
- Phase:
- 1
- Blade Type:
- Aluminum
- Manufacturers Part Number:
- HV18120V
- Brand:
- TPI
- RPM:
- 1725 rpm
- Type:
- Drum Fan
- CFM:
- 3000 CFM
- Horsepower:
- 1/2 HP
- Color:
- Gray
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 5 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 120 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- High Velocity Air Circulator
- Power Cord Type:
- Hard Wired
- Housing Material:
- Steel
- Decibels:
- 76
- Package Size:
- Each
