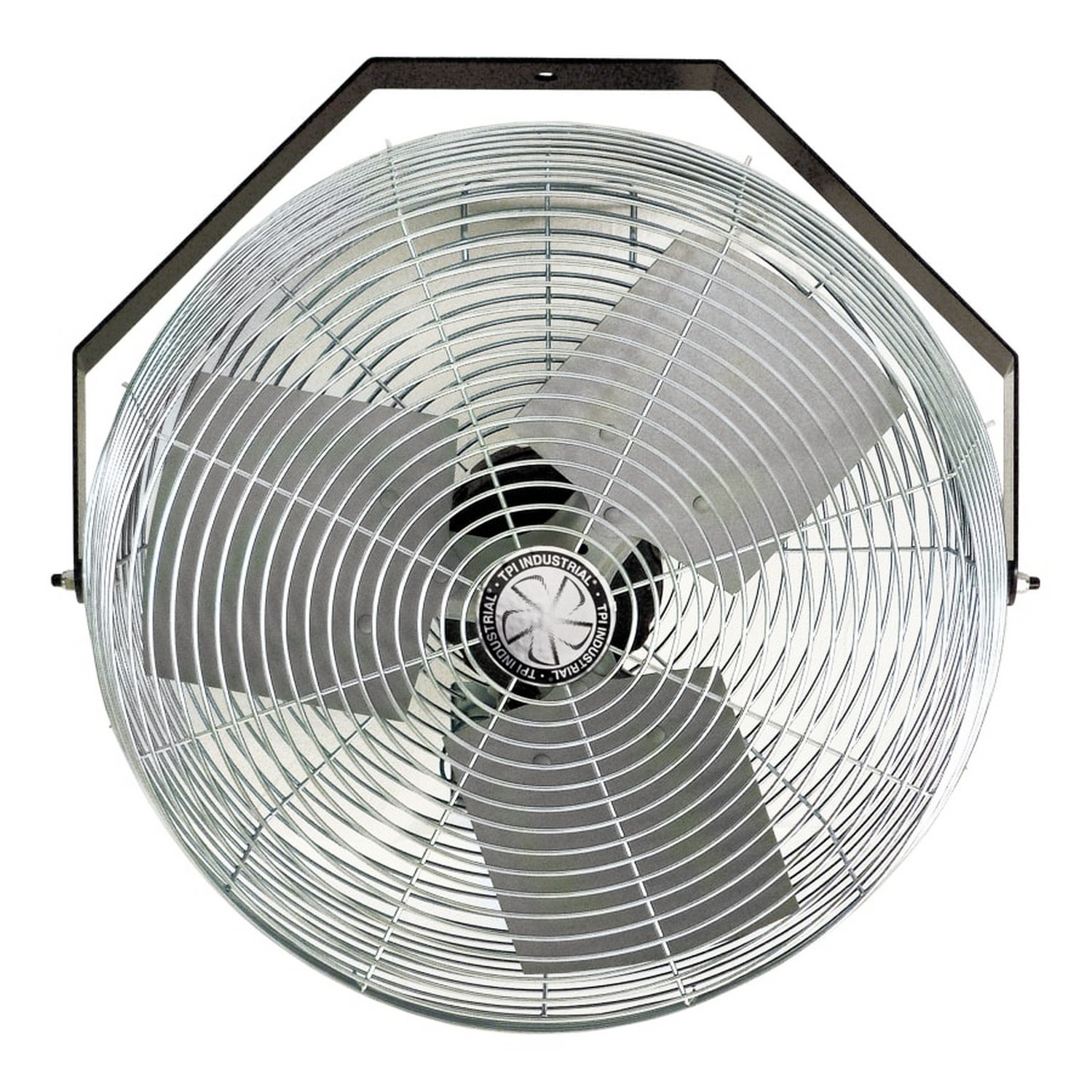

The TPI CORP. 737-U-18-TE is a stationary, direct-drive rotating work station fan designed to move air efficiently in industrial and maintenance settings. With an 18-inch aluminum blade and a compact 10 1/2 inch depth, this unit provides robust airflow from a compact footprint, making it suitable for personalized cooling where space is at a premium. The fan operates on single-phase 120 V power and delivers three speed options for flexible airflow control to match varying workspace conditions.
Constructed for durability, the fan features all-metal construction and a totally enclosed motor with sleeve bearings that are permanently lubricated, helping to minimize maintenance needs in demanding environments. A pull-chain control and a 10-foot cord offer straightforward installation and convenient reach, while the screw-mount design supports stable, secure placement on workbenches or other surfaces. The 18-inch blade is fabricated from aluminum, contributing to efficient airflow with a high flow range suitable for moderate to larger work areas.
When planning use, consider the specified performance range: approximately 5,000 CFM at low and up to about 6,800 CFM at high, with rotational speeds of around 1,370 rpm (low) to 1,660 rpm (high). This information helps gauge the unit’s cooling capacity against your space and heat load. The model uses a 1/8 hp motor and is intended for environments where a stationary direct-drive fan is appropriate, with mounting options limited to screw installations. It is designated for non-HazMat applications and ships as a single unit per package.
Features:
- All-metal construction for durability
- Totally enclosed, sleeve-bearing motor
- Permanently lubricated motor for low maintenance
- 18" aluminum blade for efficient airflow
- Three-speed operation (Low, Med, High)
- Pull chain control for easy access
- Single-phase, 120 V operation
- Blade Material:
- Aluminum
- Blade Size:
- 18 inches
- Brand:
- TPI CORP.
- Cable Marking:
- SJT
- Control Type:
- On/Off - 3 Speed
- Cord Length:
- 10 ft
- Country of Origin:
- CN
- Current @ Voltage:
- 2.500 A @ 120.000 VAC
- Depth [Nom:
- 10 1/2 in
- Fan Type:
- Stationary Direct Drive Rotating Fan
- Flow [Nom:
- Low: 5,000 CFM; High 6,800 CFM
- Hazmat:
- NO
- Mounting:
- Screw
- Phase:
- Single
- Power Cap. [Nom:
- 1/8 hp
- Speed [Nom:
- Low: 1,370 rpm; Med: 1,550 rpm; High:1,660 rpm
- Total No. of Conductors:
- 3
- UNSPSC:
- 40101604
- Voltage [Nom:
- 120 V
- Package Size:
- Each
- Package Includes:
- 1/Each
