The Patterson DB-A-W/O-SWITCH-115V-RM-DB is a compact, high-velocity fan designed for industrial pick modules, racks, and other confined spaces where air movement is critical but footprint matters. Its low-profile housing and mounting configuration are aimed at maximizing clearance in constrained environments while delivering a strong, evenly distributed column of air to improve ventilation and reduce heat buildup without adding substantial noise. The device is specified for 115V operation, enabling straightforward integration into standard facility power systems.
Construction emphasizes durability and restricted profile: the blower system is driven by a half-horsepower motor that powers dual blower wheels and yields an impressive coverage around 2,700 ft². The design incorporates a high-impact polypropylene (HIPP) fan housing, galvanized aluminum components, laser-cut steel inlet, and HDPE outlet, paired with OSHA-compliant finger guards to balance performance with safety. The unit uses a 12-foot pigtail power cord for convenient installation in typical ceiling or wall-mounted setups, and the overall arrangement is engineered for quiet operation, with measured sound output at 60 decibels at a 3-foot distance, making it notably less disruptive in active work zones.

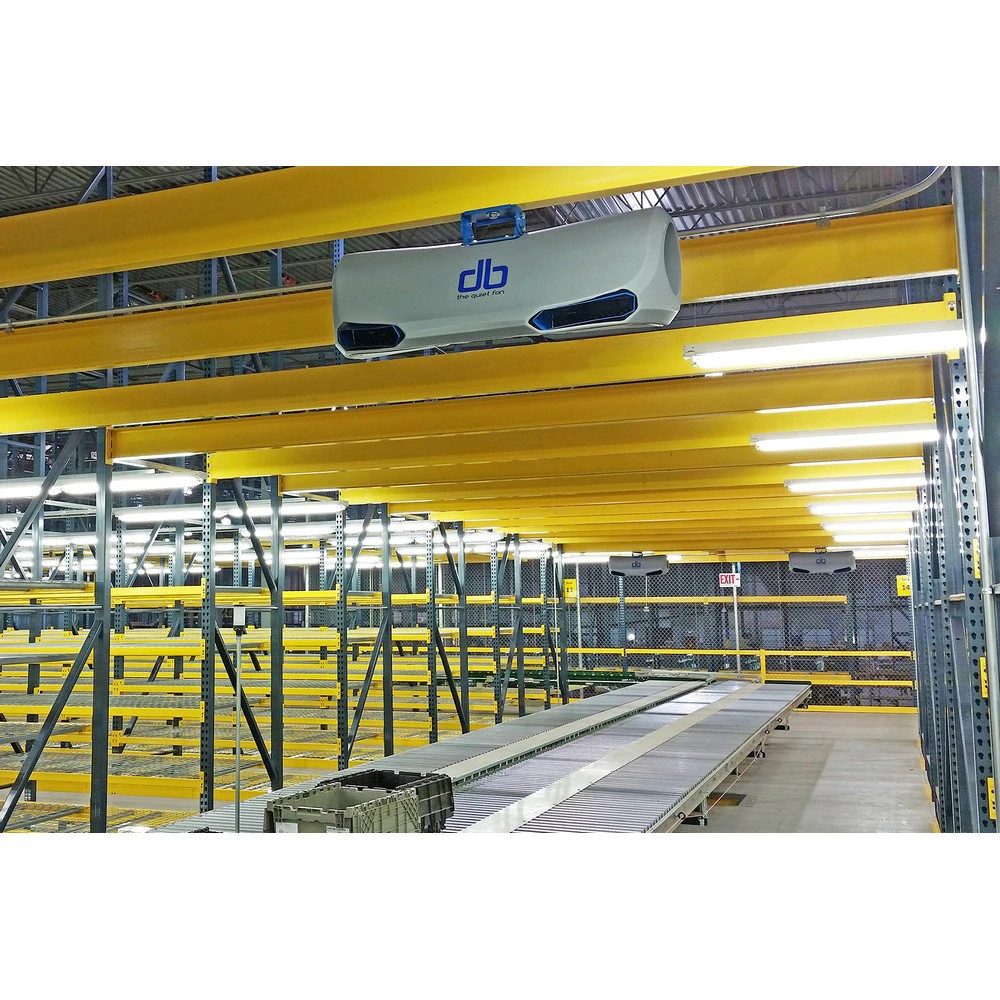

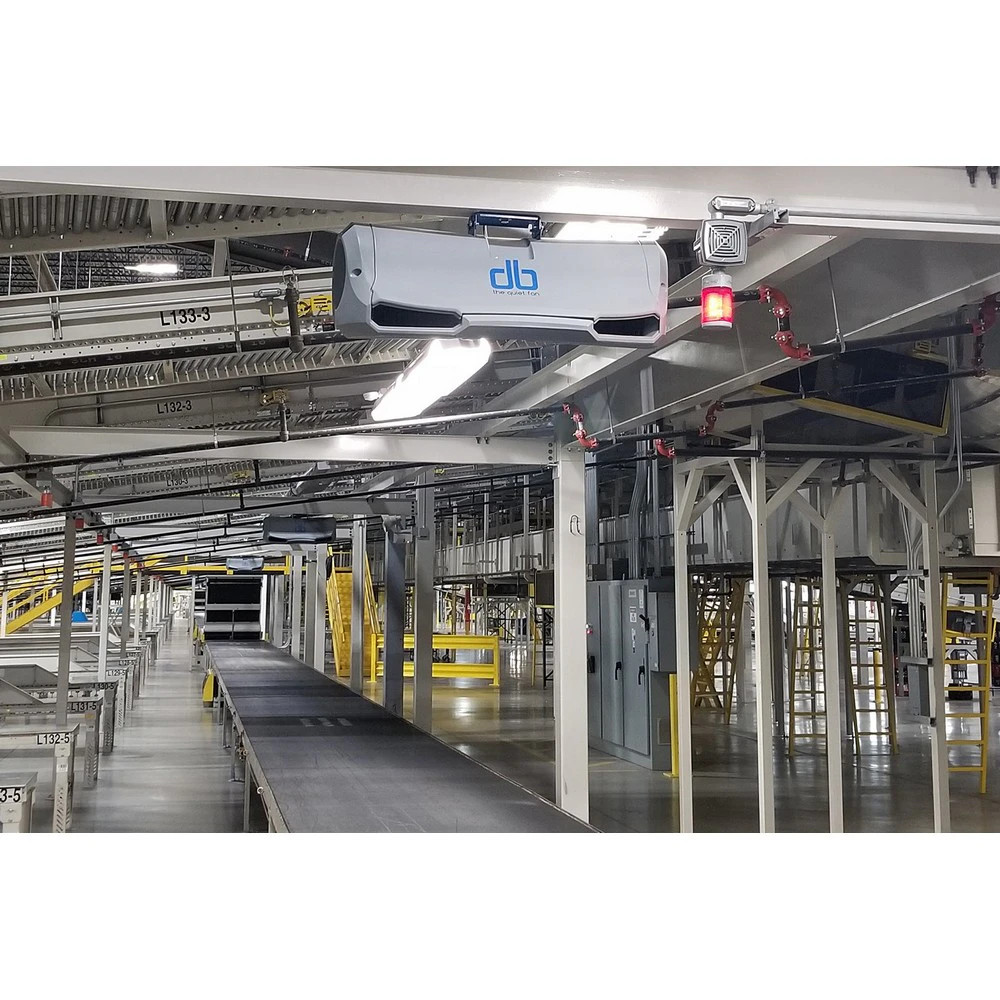

Potential applications include pick modules, dock areas, and other low-clearance spaces where maximizing air movement without sacrificing workspace is essential. When planning installation, consider ensuring compatible electrical supply (115V) and access to secure mounting locations that accommodate the unit’s footprint and mounting pattern. This model is supplied as a single unit with the specified power cord and mounting readiness; no switch is included in this variant, which may influence how the fan is integrated into existing control schemes or automation sequences.
Features:
- Quiet, noise-controlled operation
- Powerful air column for effective ventilation
- Low-profile, rack-mount design
- Minimal energy consumption
- OSHA-compliant finger guards
- 12" pigtail 115V power cord
- Durable housing with galvanized-aluminum style components
- Blower wheels:
- 6.25” x 6.5”, GalvAlum
- Fan housing:
- High Impact Polypropylene (HIPP)
- Finger guards:
- OSHA Compliant, Laser-Cut Steel Inlet and HDPE Outlet
- Power cord (115V Only):
- 12’ Pigtail
- RPM:
- 1725
- Decibels:
- 60 @ 3’
- Coverage:
- 2700 ft²
- Package Size:
- Each
