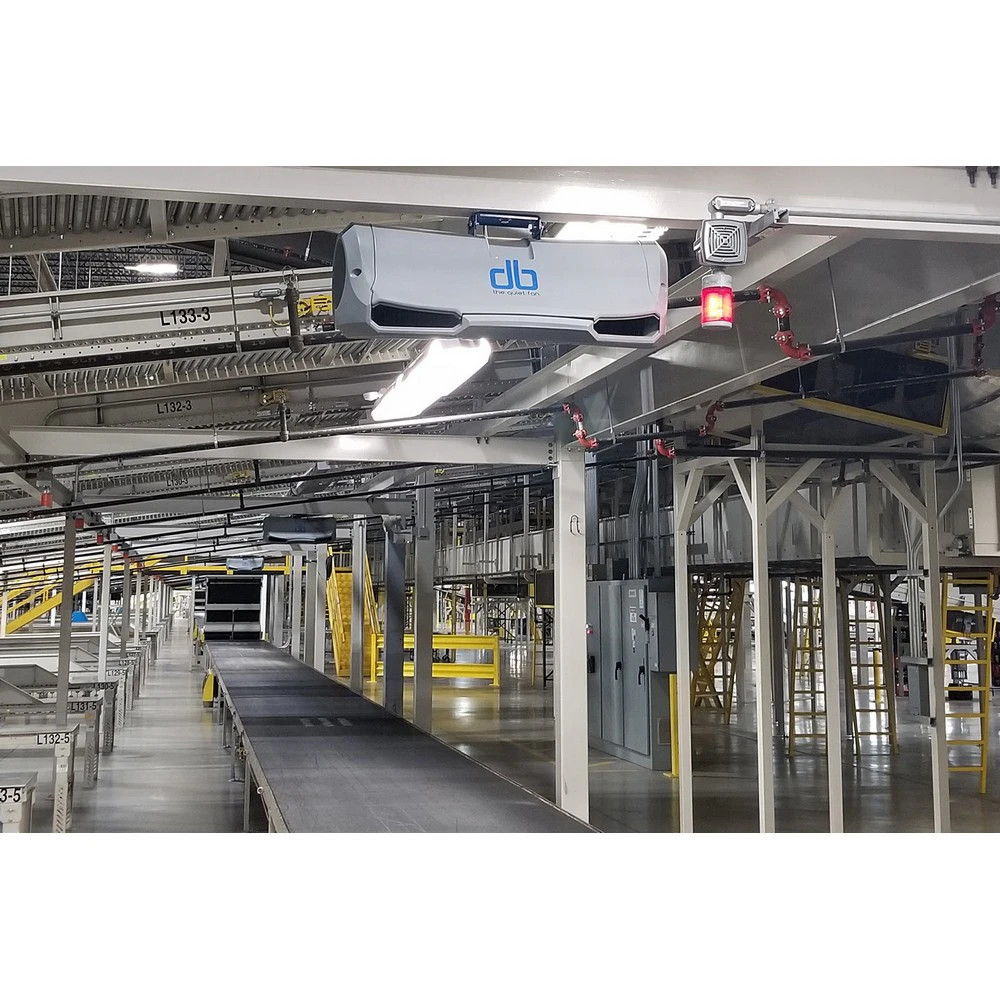

The Patterson DB-A-W/O-SWITCH-115V is a compact, high-velocity wall- or yoke-mount fan designed for industrial environments where air movement and footprint matter. It delivers a powerful column of air while maintaining a quiet operation profile, making it suitable for pick modules, dock areas, and spaces with low ceilings. With a 0.5 horsepower motor driving dual blowers, this unit aims to provide strong air distribution without occupying excess headroom.
Constructed with a high-impact polypropylene housing and laser-cut steel inlet, the unit combines durability with design that minimizes space requirements. The blower wheels have a combined diameter specification noted in the product data, and OSHA-compliant finger guards are included to support safe operation. A 12-foot power cord (115V only) offers flexible plug-and-play installation for standard electrical outlets, and the overall design emphasizes energy-conscious performance, delivering substantial airflow with notable noise reduction relative to traditional high-velocity fans.
The DB-A-W/O-SWITCH-115V is documented to produce a 60 decibel level at a distance of 3 feet, enabling communications and task efficiency in environments where noise levels can impact productivity. The unit reportedly covers up to specific open-area volumes such as 2,700 ft², depending on layout and obstruction, and is sized for applications where minimal footprint is critical. When selecting this fan, consider mounting options (yoke mount or wall installation) and ensure proper clearance for airflow, particularly in busy pick modules or dock-front zones. Routine inspection of guards, housing, and power connections will help maintain safe, reliable operation over time.
Features:
- Quiet operation with noise-controlled performance
- Powerful column of air for efficient drying and ventilation
- Low-profile design for versatile placement
- Minimal energy consumption for cost-effective operation
- Yoke-mount compatible, no-switch configuration
- Blower wheels:
- 6.25” x 6.5”, GalvAlum
- Fan housing:
- High Impact Polypropylene (HIPP)
- Finger guards:
- OSHA Compliant, Laser-Cut Steel Inlet and HDPE Outlet
- Power cord (115V Only):
- 12’ Pigtail
- RPM:
- 1725
- Decibels:
- 60 @ 3’
- Coverage:
- 2700 ft²
- Package Size:
- Each
