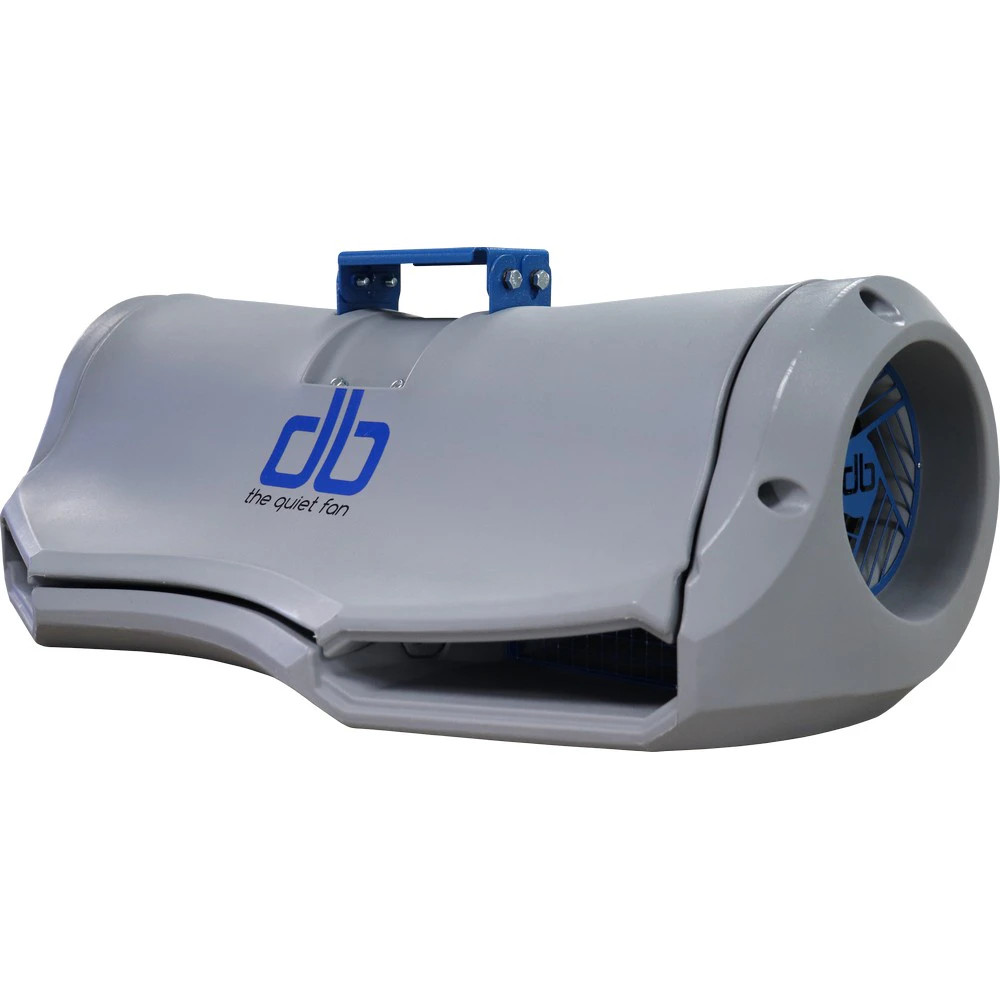

The Patterson DB-A-460V-RM-DB is a high-velocity, low-profile ceiling- or rack-mounted fan designed to move a large volume of air with minimal footprint. Built to emulate the performance of Patterson’s 18-inch industry-standard models, this unit concentrates air flow into a dual-column pattern while occupying significantly less space, making it suitable for pick modules, dock-door areas, and locations with restricted headroom. It is engineered for continuous operation in industrial environments, delivering a substantial air throw with an evenly distributed flow across a 50-foot reach and maintaining energy efficiency through a half-horsepower drive system powering the dual blowers. The result is effective cooling or air redistribution without imposing excessive sound or spatial demands, with a reported noise level of 60 decibels.
Construction features emphasize durability and safe operation in busy facilities. The blower assembly uses six-and-a-quarter inch by six-and-a-half inch aluminum-metric or galvanized components, while the fan housing is made from high-impact polypropylene. Inlet and outlet paths are finished with laser-cut steel and HDPE, contributing to robust air handling and resistance to wear in congested spaces. OSHA-compliant finger guards provide a safety barrier for maintenance access, and a 12-foot cord is included for the 115V option where applicable. The compact, low-profile profile supports taller aisles and shelving by minimizing obstruction while still delivering broad-area air movement.
Practically, this unit suits environments where rapid air movement is needed with constrained vertical clearance and where quiet operation supports improved communication and productivity. The model is cataloged with a single-package configuration and is compatible with systems requiring 460V operation, and it delivers coverage suitable for up to about 2,700 square feet, helping to justify its placement in distribution centers, fulfillment floors, and other industrial settings that prioritize both air circulation and noise control.
Features:
- Quiet, Noise Controlled operation
- Powerful column of air
- Low-profile rack-mount design
- Minimal energy consumption
- OSHA-compliant finger guards
- Durable construction with HIPP housing
- Includes 12 ft power cord for 115V installations
- Blower wheels:
- 6.25” x 6.5”, GalvAlum
- Fan housing:
- High Impact Polypropylene (HIPP)
- Finger guards:
- OSHA Compliant, Laser-Cut Steel Inlet and HDPE Outlet
- Power cord (115V Only):
- 12’ Pigtail
- RPM:
- 1725
- Decibels:
- 60 @ 3’
- Coverage:
- 2700 ft²
- Package Size:
- Each
