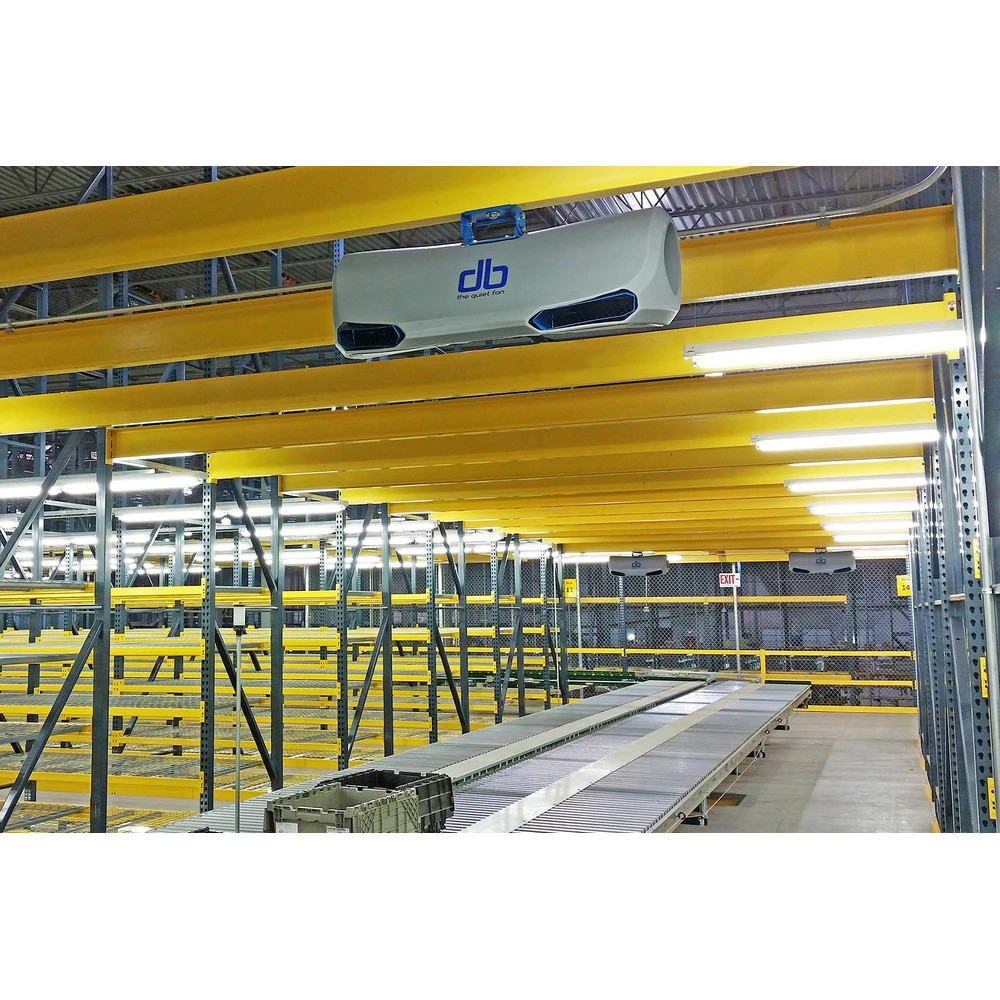

The PATDB-A-227V-RM-DB is a compact, high-velocity low-profile fan designed for industrial settings where space is at a premium. This rack-mount capable unit combines a powerful dual-blower design with a small footprint to move air efficiently while minimizing noise output, making it suitable for pick modules, dock doors, and other areas with low ceilings. The system draws on a half-horsepower motor to drive six-inch by six-and-a-half-inch blower wheels and delivers a uniform column of air across a practical range, helping to improve air movement without overwhelming sound levels. At approximately 60 decibels measured at three feet, the DB unit achieves notable noise reduction relative to typical high-velocity fans, which can support clearer communications and a more comfortable working environment in busy facilities.
Constructed for durability in industrial applications, the fan housing uses high-impact polypropylene (HIPP), with laser-cut steel inlet components and HDPE outlet elements. Finger guards are included and meet OSHA-compliant expectations for guarding, contributing to safer operation in environments where personnel may be nearby moving air and equipment. The unit is wired with a 12-foot power cord (115V), simplifying setup in standard electrical configurations found in warehouses and distribution centers.
Practical considerations for deployment include its 50-foot effective air throw and 2,700 square feet coverage rating, which can influence placement strategy for optimal air distribution. The compact footprint and rack-mount compatibility enable installation in tight spaces where conventional 18-inch high-velocity fans would be impractical. Packaging details indicate the unit ships as a single item. If you need assistance selecting the right enclosure or mounting arrangement, The Safety Source team can help verify fit and compatibility for your specific rack or dock area.
Features:
- Quiet operation with noise control
- Powerful column of air
- Low-profile, rack-mount design
- Minimal energy consumption
- Six blower wheels for even airflow
- High-impact polypropylene housing
- OSHA-compliant finger guards
- Blower wheels:
- 6.25” x 6.5”, GalvAlum
- Fan housing:
- High Impact Polypropylene (HIPP)
- Finger guards:
- OSHA Compliant, Laser-Cut Steel Inlet and HDPE Outlet
- Power cord (115V Only):
- 12’ Pigtail
- RPM:
- 1725
- Decibels:
- 60 @ 3’
- Coverage:
- 2700 ft²
- Package Size:
- Each
