The Light Efficient Design LED-7316-FC-G2 is a compact LED PL retrofit lamp designed to replace inefficient CFLs in commercial and institutional spaces. Delivering 1,100 lumens at just 9 watts, it provides energy-efficient illumination suitable for offices, lobbies, hotels, and schools. The lamp is a Type A+B hybrid, offering flexible installation: it can operate on existing magnetic ballasts (Plug-and-Play) or be connected directly to 120–277V line voltage (ballast bypass), helping minimize retrofit complexity and downtime.

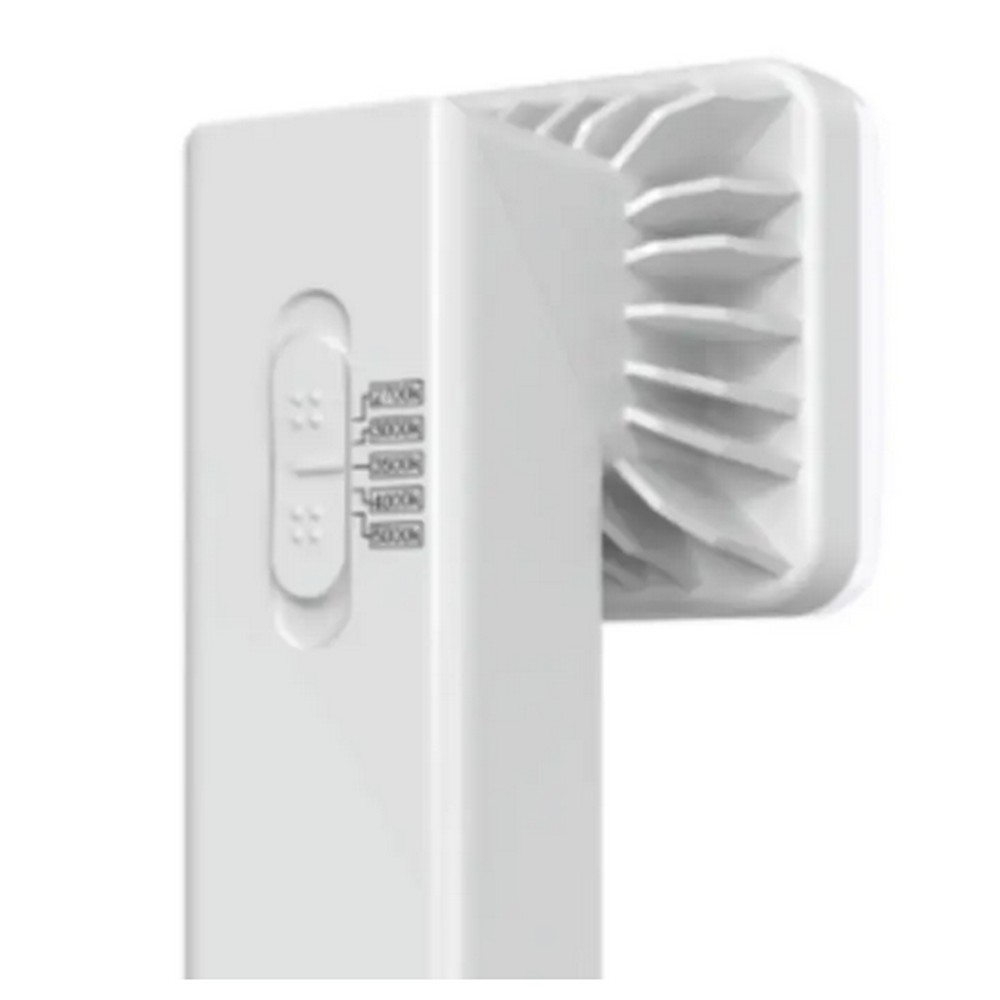

Constructed for adaptable light delivery, the LED-7316-FC-G2 features FlexColor technology that lets users select from five correlated color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—via an integrated toggle switch on the lamp. A rotatable 90-degree head and an adjustable/extending base enable precise beam orientation in both horizontal and vertical fixtures, improving site-specific illumination without additional components. The lamp is rated for up to 50,000 hours and is suitable for damp environments and open fixtures, aligning with typical commercial-use expectations.
Designed for direct compatibility with G24d PL sockets, this lamp is specified as an equivalent replacement for up to 32W CFL technology, providing a straightforward energy-reduction path without sacrificing light quality. Key practical considerations include its dimmability status (not specified), beam angle of 200°, and the need to confirm ballast compatibility when used with existing magnetic ballasts. The unit carries UL Classified/UL Listed and FCC/NSF markings, reflecting standard safety and compliance expectations for workplace luminaires. The LED-7316-FC-G2 comes with a 5-year limited warranty and is packaged as a single unit.
Features:
- Energy Savings: Replaces up to 32W CFL lamps while consuming just 9W.
- FlexColor CCT Selectable: Toggle between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Positioning Control: 90° rotatable head with extending base for beam orientation.
- Type A+B Versatility: Works on magnetic ballasts or direct 120-277V line voltage.
- Durable & Safe: 50,000-hour rating; suitable for damp environments and open fixtures.
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-7316-FC-G2
- UPC:
- 197810026662
- Lumens:
- 1,100 Lumens
- Wattage:
- 9 Watts
- Input Voltage:
- 120-277V or Ballast Dependent
- Color Temperature:
- 2700K, 3000K, 3500K, 4000K, 5000K
- Lamp / Base Type:
- G24D
- Lamp Shape:
- PL
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 32W Fluorescent
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable
- Length:
- 6.8
- Width:
- 2.4
- Package Size:
- Each
- Ratings / Certifications:
- UL Classified, UL Listed, FCC, NSF
- Warranty:
- 5-Year Limited Warranty
- Beam Angle:
- 200°
