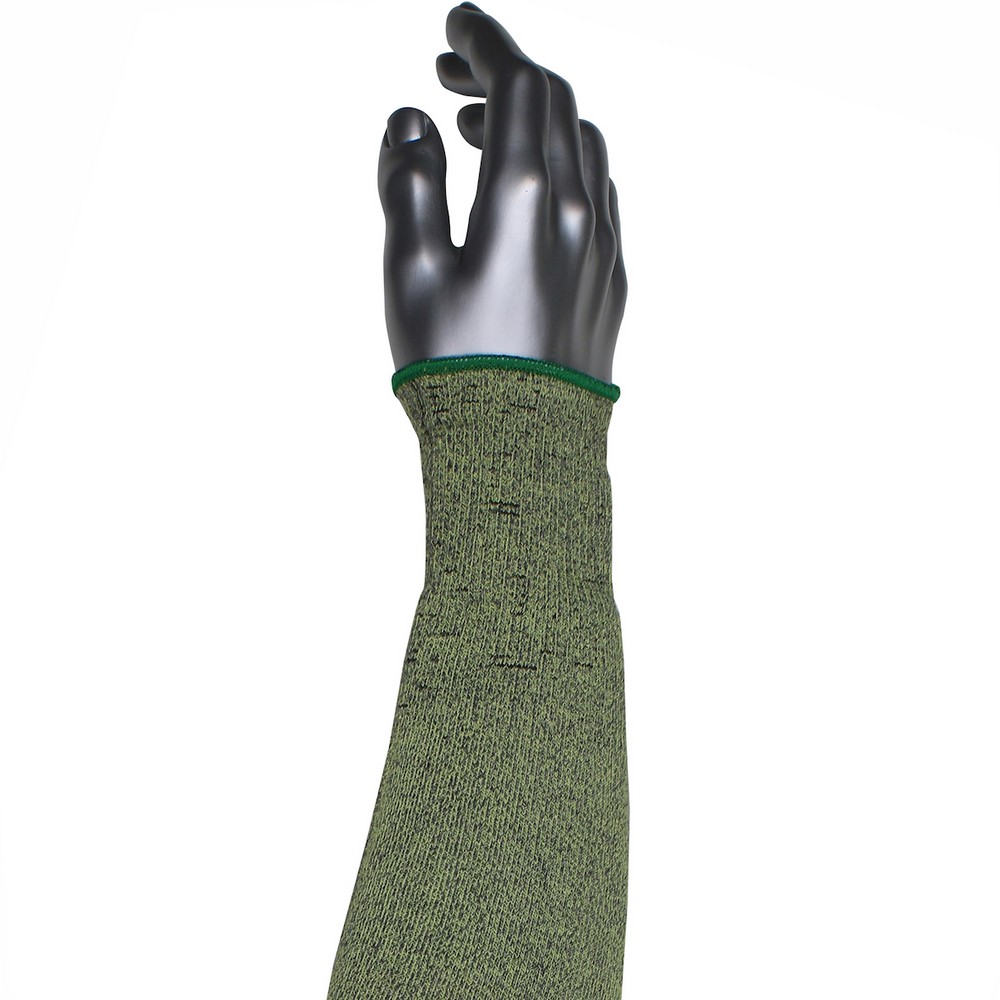

The PIP S13ATAFR/4HA-EW-ES6-22 Single-Ply ATA / Hide-Away FR Blended Sleeve is designed to provide lightweight ANSI A4 cut resistance with added flame resistance in a knitted sleeve form. The ATA Fiber technology combines aramid fibers with stainless steel wire to deliver a protective sleeve that is breathable for extended wear while maintaining protective performance. The sleeve is offered in three widths—narrow, standard, and wide—to accommodate different arm sizes and ensure a more personalized fit. A color-coded overedge indicates width for quick sorting, and a knit, seamless construction minimizes irritation while the top incorporates a non-slip feature to help keep the sleeve in place during use.
The fabric achieves cut protection with an ANSI Cut Level 4 rating and an ANSI A4 designation, alongside abrasion resistance rated at Level 1 (200 cycles) per the documented specifications. It also meets the ASTM F1358-08 vertical flame test with a Level 4 result and withstands high temperature exposure per ASTM F1060 with a rating of 284°F, reinforcing its suitability for environments where incidental heat or flame exposure may occur. The sleeve is machine knit and seamless, contributing to comfortable wear, and includes a non-binding knit wrist that continues protection from top to bottom. The product supports reuse and laundering, with recyclability through Terracycle and a machine-washable care routine at 40°C, followed by tumble drying at low heat.
This sleeve is packaged bulk-banded and sold in units of each, with a case quantity of 72 for bulk purchases. Top-arm non-slip and an absence of a thumb hole option are noted features. When selecting sizing, consider the arm circumference to choose the appropriate width (narrow, standard, or wide) to optimize protection and comfort without restricting movement. For maintenance, follow the provided wash and dry instructions to preserve protective properties over time.
Features:
- ANSI A4 cut protection with ASTM F1358-08 Level 4
- Three widths: narrow, standard, wide for a customized fit
- Lightweight 13 gauge knit for comfort
- Color-coded overedge indicates width (red, yellow, green)
- No-Slip top ensures sleeves stay in place
- Knit wrist provides protection from top to bottom
- ASTM D3884-09 Level 1 abrasion resistance
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
