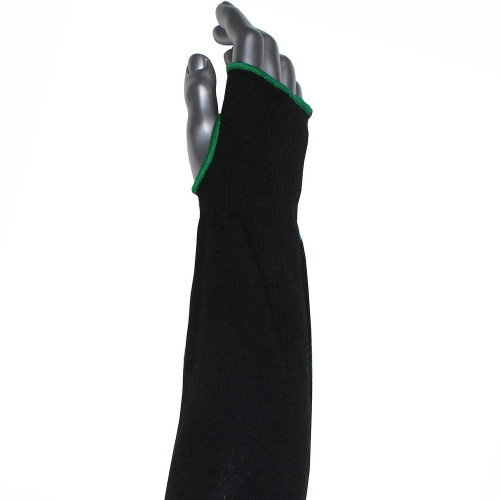

The PIP S10ATAFR/5BK-EW-ES6-22 is a single-ply ATA/Modacrylic blended sleeve designed to deliver ANSI A5 cut protection in a lightweight knit. Available in three widths, it can be matched to a wearer’s arm size for improved comfort and fit, with color-coded overedge indicating width (red = narrow, yellow = standard, green = wide) to simplify sorting and selection on the job. The sleeve features a no-slip top edge to help keep it in place and a knit wrist that stays in position from top to bottom, reducing readjustments during work tasks.
Constructed as a machine-knit seamless sleeve, it uses ATA Fiber Technology with modacrylic to provide cut resistance and flame-test performance (ASTM F1358, Level 3 vertical flame test) while maintaining a breathable, lighter-weight profile. The ANSI A5 cut level, along with abrasion resistance (Level 1, 185 cycles) and an ASTM F1060 rating of 2, reflects its suitability for tasks that involve sharp edges or light abrasion. The sleeve is designed for routine maintenance and durability in field or workshop environments, with machine washability and a low-dryer-temp instruction that supports repeated laundering.
For practical use, these sleeves are offered in bulk-banded packaging and are compatible with standard arm protection workflows where hand and forearm coverage is needed without restricting dexterity. The liner material is listed as ATA fiber technology blended with modacrylic, and the product emphasizes recyclability through Terracycle and reusability via laundering. Refer to the downloadable spec sheet for exact fit guidance and care details to ensure proper sizing, washing temperatures (40°C), and drying at low heat.
Features:
- ANSI A5 cut protection with lightweight ATA fiber technology
- Three widths: narrow, standard, wide for a personalized fit
- 10 gauge knit for cool, comfortable wear
- Color-coded edges indicate sleeve width (red=narrow, yellow=standard, green=wide)
- No-Slip top and knit wrist for secure placement
- ASTM F1060 Level 1 abrasion resistance
- Machine washable and tumble dry friendly
- Liner Material:
- ATA Fiber Technology, Modacrylic
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2621
- ANSI Cut Level:
- A5
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 185
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 3
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
