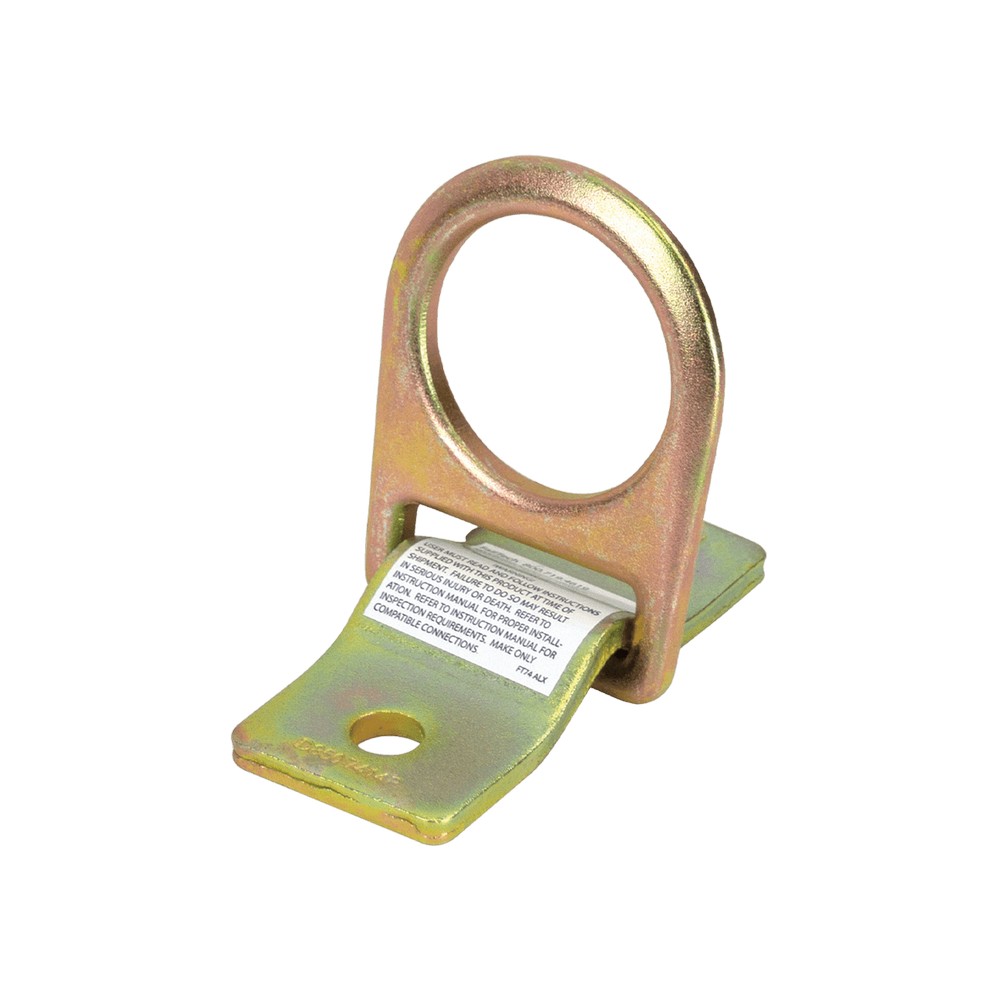

Bolt-on D-ring Anchor with Installation Plate Work at height with confidence. Our ANSI, OSHA, and CSA tested and compliant fall protection equipment is designed and manufactured with care to protect you. We've got your back.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- Features 2" x 4-1/2" alloy steel anchoring plate and D-ring
- 1/2" bolt holes require user-supplied fasteners for fixed position installation.
- Complies with ANSI Z359.18-2017
Downloads:
Product Specifications:
| Installation Plate | Plated alloy steel |
|---|---|
| D-ring | Plated alloy, 5,000 lb min. static strength |
| Static Strength | 5,000 lb min. |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| Package Size | Each |
- Installation Plate:
- Plated alloy steel
- D-ring:
- Plated alloy, 5,000 lb min. static strength
- Static Strength:
- 5,000 lb min.
- ANSI User Capacity:
- 130 to 310 lb max.
- OSHA User Capacity:
- 130 to 425 lb max.
- Package Size:
- Each
