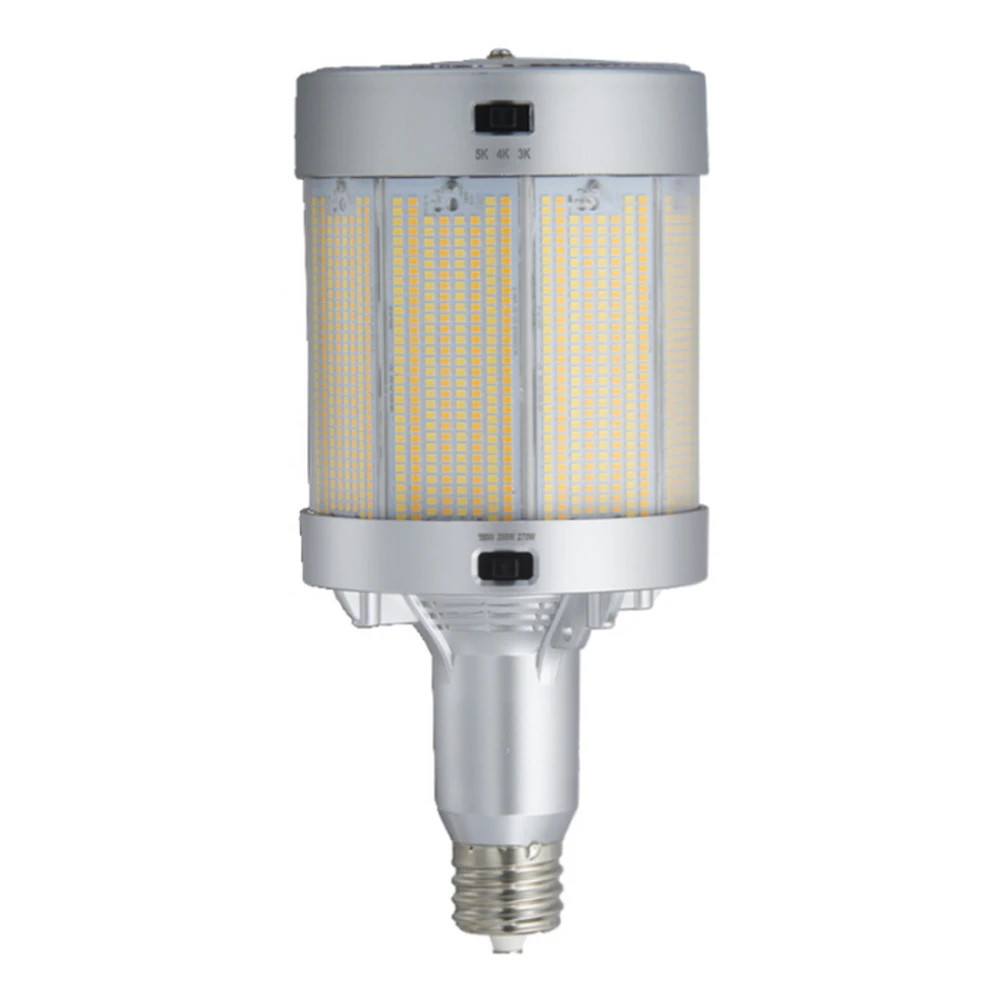

The Light Efficient Design LED-8075M345-FW-HV is a multi‑mode retrofit lamp designed to upgrade existing bollard or post‑top fixtures to LED while preserving versatility and durability. This EX39 mogul‑base lamp delivers high lumen output with selectable color temperature and wattage, allowing on‑site adjustment between 3000K, 4000K, and 5000K and between 150W, 200W, or 270W. The result is a flexible retrofit solution that can mirror or surpass the brightness of traditional HID sources while enabling tailored illumination in the field. The unit is built for multi‑directional mounting (base up, base down, or sideways) without compromising performance, which helps fit varied fixture geometries and installation constraints. Its performance is backed by traits such as an enclosed‑fixture rating and damp location suitability, making it adaptable to outdoor and semi‑indoor environments where moisture and pests may be present. The lamp is designed for drivers tuned and protected through pre‑burn‑in and encapsulation, and it includes dual stage MOV protection with 6 kV surge protection to mitigate transient electrical events. Typical operating temperature range extends from −40°F to 122°F, supporting reliability in a wide range of climates. The lamp claims a 50,000‑hour rated life and is compatible with 277–480V ballast bypass configurations, helping reduce ballast maintenance and improving overall system efficiency. With a high lumen output—up to 39,000 lumens—the module is positioned as a robust LED upgrade for HID‑equivalent brightness, aimed at bollard, pedestal, or post‑top installations seeking energy efficiency and long service life.
Features:
- 277-480V ballast bypass operation
- CCT-selectable: 3000K, 4000K, 5000K
- Wattage selectable: 150W, 200W, 270W
- EX39 Mogul base
- Dim to 50-70% via side wattage switch
- Enclosed fixture rated and damp location rated
- Dual stage MOV protection and 6kV surge protection
- Pretested and potted drivers for vibration and moisture protection
- 50,000 hour rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8075M345-FW-HV
- UPC:
- 197810016533
- Lumens:
- 39,000 Lumens
- Wattage:
- 270 Watts
- Input Voltage:
- 277-480V
- Color Temperature:
- 3000K, 4000K, 5000K
- Lamp / Base Type:
- EX39 Mogul
- Lamp Shape:
- Corn Cob
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 750W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated, Wattage Selectable
- Length:
- 12.3
- Diameter:
- 5.6
- Package Size:
- Each
