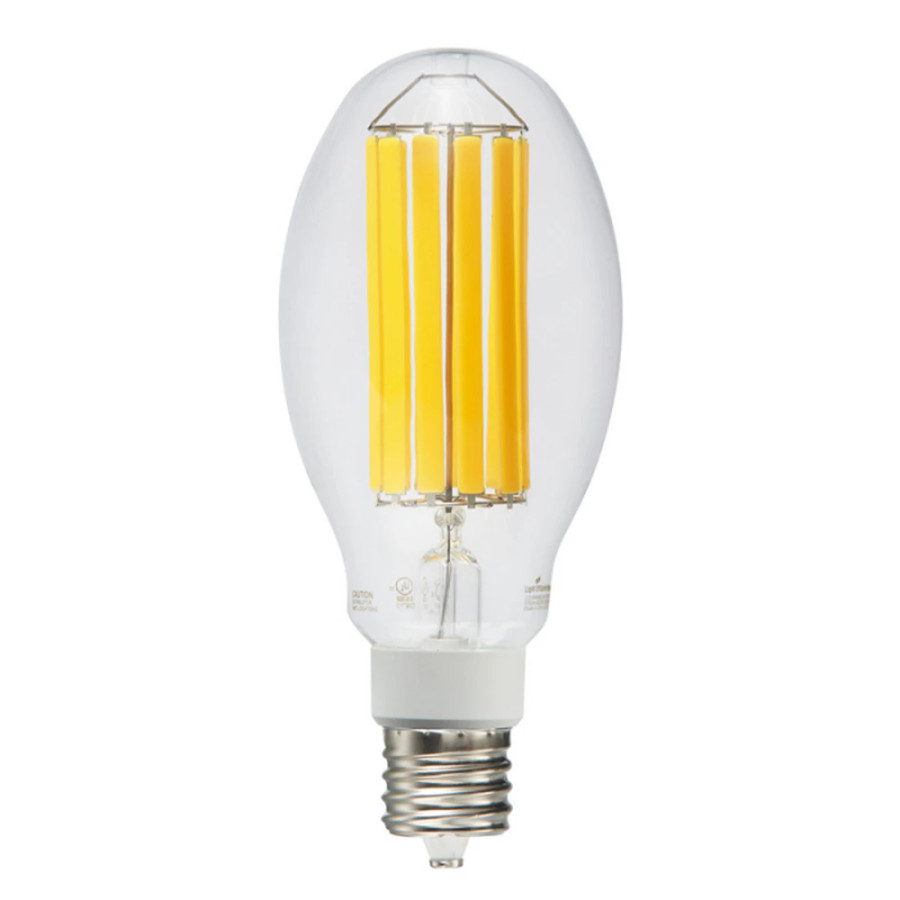

This LED retrofit lamp from Light Efficient Design is designed to replace HID lamps in decorative post-top fixtures, delivering a 54-watt LED solution that mimics the appearance and light distribution of traditional HID sources. It uses a Mogul EX39 base and operates on 120–277 V with a ballast-bypass (Type B) configuration, aligning with common HID electrical setups while removing the ballast from the circuit. The lamp outputs about 10,000 lumens at a 4000 K color temperature and provides a 360-degree beam pattern to replicate omni-directional HID light distribution, making it suitable for enclosed fixtures as indicated by its UL approval for use in such environments. The design aims to fit fixtures that historically housed larger HID luminaires, offering a comparable luminous flux while benefiting from LED efficiency and a long-rated life.
Key distinguishing features include an ED33-shaped form that fits with traditional HID aesthetic and mounting, a rated life of up to 50,000 hours, and a robust operating range suitable for temperatures from -40°F to 113°F. The 360-degree beam and high color temperature make this lamp appropriate for outdoor plazas, walkways, or decorative post-top applications where uniform area lighting is desired. When replacing HID hardware, ensure the fixture housing is compatible with an enclosed fixture LED retrofit and that the installer follows ballast bypass safety precautions and wiring requirements for a Type B configuration.
This LED retrofit is DLC Standard listed, aligning with utility incentives and energy-efficiency programs where applicable. Its physical dimensions are roughly 4.9 inches in width and 9.4 inches in height, with a similar length, making it a direct form-factor replacement for many EX39 mogul-based HID lamps without major fixture modification. Packaged as a single unit, it’s intended for field retrofits by qualified personnel to achieve energy savings and reduced maintenance compared with legacy HID lighting.
Features:
- 120-277V / Type B - ballast bypass operation
- Mogul EX39 base
- Equivalent to 320W HID fixtures
- 360° beam angle
- UL approved for enclosed fixtures
- Operating temperature: -40°F to 113°F
- DLC Standard
- 50,000 hour rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8064M40
- UPC:
- 844006009632
- Lumens:
- 10,000 Lumens
- Wattage:
- 54 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 4000K
- Lamp / Base Type:
- EX39 Mogul
- Lamp Shape:
- ED33
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 360 Degrees
- Equivalent:
- 320W HID
- CRI:
- 80+
- Special Features:
- Enclosed Fixture Rated
- Length:
- 4.9
- Width:
- 4.9
- Diameter:
- 4.9
- Height:
- 9.4
- Package Size:
- Each
