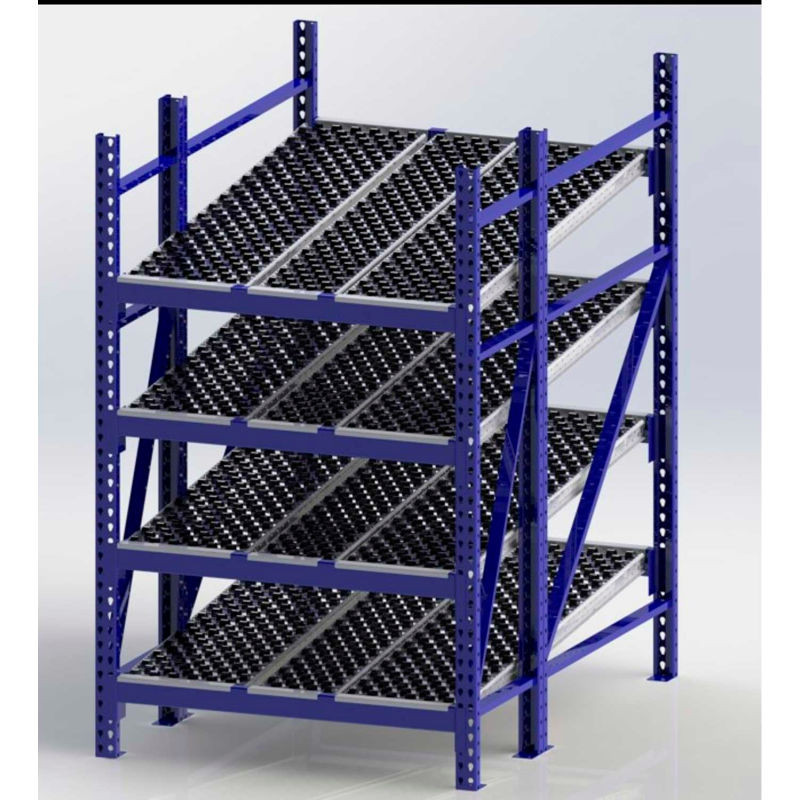

The UNEX RR99S2W4X6-S Gravity Flow Roller Rack with Wheel Bed Starter is a purpose-built material handling solution designed to optimize carton flow in distribution, manufacturing, and retail environments. This 4-level rack starter provides a 48" wide by 72" deep footprint and stands 84" tall, offering a compact yet efficient way to organize and move inbound and outbound cartons along gravity-fed wheel beds. Built from steel, the unit emphasizes a streamlined, pre-engineered design intended to fit carton-flow systems while using less steel than traditional pallet racks, helping to reduce freight costs and installation time.
Key construction features include a wheel bed track configuration that facilitates guided gravity flow, with a 2" axle center spacing that supports consistent carton movement across levels. Each level supports substantial capacity at the shelf level, with a 2000 lb per-shelf rating and a total system capacity of up to 12,000 lbs, making it suitable for high-volume shipments and mixed loads. The rack is colored blue and is designated as stationary, meaning it is intended to remain in a fixed position after assembly. Assembly is required to set up the starter unit, and the complete system is designed to be expanded with additional levels or compatible components as needed.
This starter unit is ideal for facilities that require predictable carton flow without pallet storage above the rack. It integrates into existing carton flow layouts and is suitable for warehouses and distribution centers seeking a modular, knock-down solution that can be configured to fit available space. Please note that the item is not eligible for return or exchange, and accurate shipping costs should be obtained by requesting a quote.
Features:
- Width: 48 in, Depth: 72 in, Height: 84 in
- Weight: 1697 lbs; Weight Capacity: 12,000 lbs
- Shelf Capacity: 2,000 lbs per level
- Track Configuration: Wheel Bed
- 4 Levels; Material: Steel; Color: Blue
- Assembly Required; Stationary configuration
- Width:
- 48 in
- Depth:
- 72 in
- Height:
- 84 in
- Weight:
- 1697 lbs
- Weight Capacity:
- 12000 lbs
- Axle Center:
- 2 in
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 2000 lbs
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Gravity Flow Roller Rack with Wheel Bed
- Manufacturers Part Number:
- RR99S2W4X6-S
- Brand:
- Unex
- Package Size:
- Each
