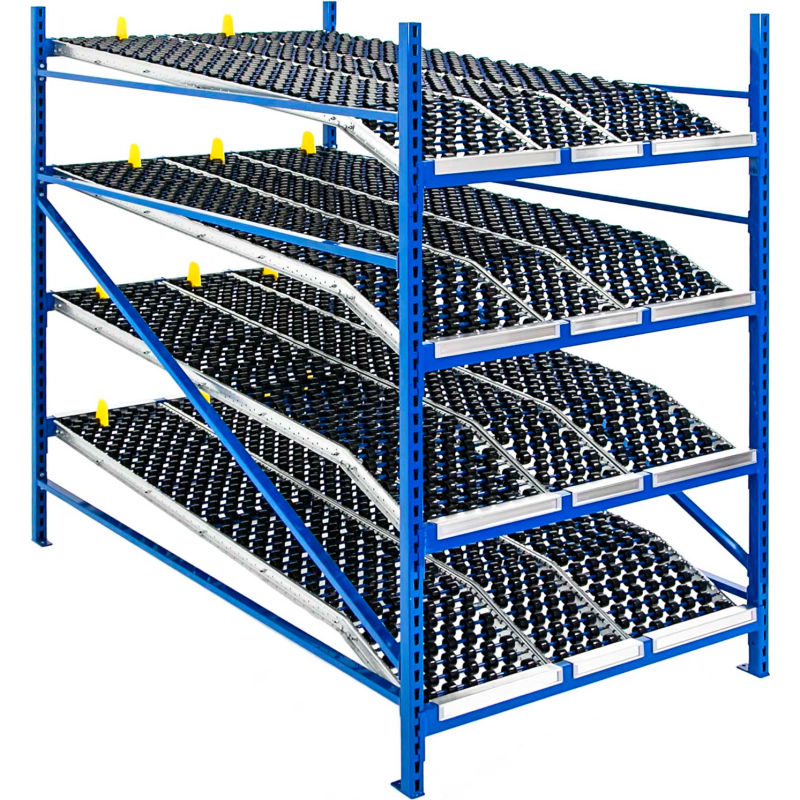

The UNEX RR99K2W4X8-S Gravity Rack Knuckled Span-Track Wheel Bed Starter is a 4-level, gravity-flow rack system designed for carton flow in distribution, manufacturing, and retail environments. This starter unit provides a 48-inch wide by 96-inch deep footprint with a finished height of 84 inches, offering a compact, pre-engineered solution that helps facilities move cartons efficiently along the line without relying on pallets. The wheel-bed track configuration supports smooth, continuous gravity flow, enabling fast access and turnover of incoming inventory while reducing handling steps.
Constructed from steel and finished in blue, this rack starter emphasizes a balanced approach to strength and accessibility. It features a knuckled span-track wheel bed with a 16-inch knuckle length, four levels of storage, and a total weight capacity of up to 12,000 pounds with per-shelf capacity of 2,000 pounds. The design is stationary, requiring assembly, and is intended to fit into existing carton-flow layouts that anticipate a 2-inch axle center. With its lighter steel footprint relative to pallet racks, the system aims to decrease freight costs and potential damage during installation while delivering reliable, gravity-driven carton routing.
Because this is a starter rack, compatibility and expansion need to be considered within your existing flow rail and carton sizes. The unit is sold as a single package and requires assembly for setup. It is not listed as eligible for return or exchange. Including precise dimensions, load ratings, and assembly requirements helps purchasers determine whether this starter rack will integrate with their current carton flow configuration and available ceiling or aisle clearances.
Features:
- Dimensions: 48 in W x 96 in D x 84 in H
- Weight Capacity: Overall 12,000 lbs; shelf capacity 2,000 lbs
- Configuration: Wheel Bed track with 4 levels
- Material: Steel construction
- Color: Blue
- Mobility: Stationary rack
- Assembly: Required
- Width:
- 48 in
- Depth:
- 96 in
- Height:
- 84 in
- Weight:
- 1877 lbs
- Weight Capacity:
- 12000 lbs
- Axle Center:
- 2 in
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 2000 lbs
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Gravity Flow Roller Rack with Wheel Bed
- Manufacturers Part Number:
- RR99K2W4X8-S
- Brand:
- Unex
- Package Size:
- Each
