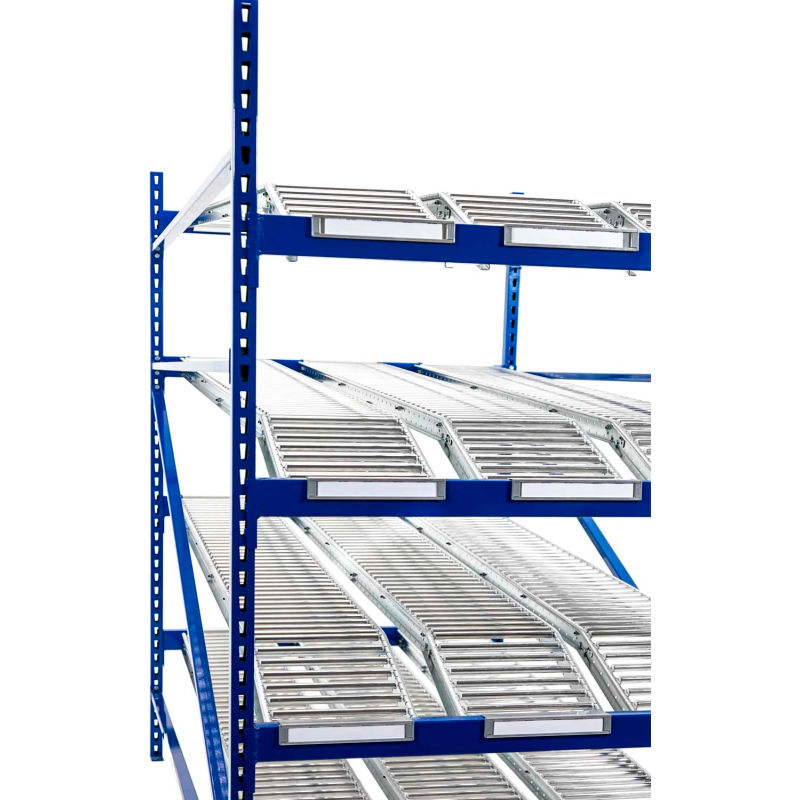

The UNEX RR99K2R8X6-A Gravity Rack with Knuckled Span-Track Add-On is a stationary, pre-engineered roller rack extension designed to support carton flow in distribution, manufacturing, and retail settings. It provides four levels of gravity-fed storage, enabling efficient FIFO handling for boxed units across a 96" wide, 72" deep, and 84" high footprint. Built to interface with UNEX’s knuckled span-track lanes, this add-on maximizes lane count per level and facilitates smooth carton movement along each of the seven 12" wide, 2" oc rollers per level. The overall system weight and load distribution are managed via steel construction, contributing to a robust storage and flow solution that reduces handling times for incoming and outgoing cartons.
Key construction details include a 96"W x 72"D x 84"H footprint with an elevated rack configuration (four levels) and a total weight of 2,258 lbs. The unit supports a shelf capacity of up to 2,000 lbs per level and a combined weight capacity of 12,000 lbs for the rack add-on, making it suitable for medium-density carton flows. Assembly is required to integrate this add-on into a compatible rack system, and the unit ships as individual packaging. Its blue steel frame aligns with typical facility color-coding and warehouse aesthetics, while the stationary design supports predictable load placement without the complexities of rolling or docking requirements.
Practical considerations include ensuring compatibility with existing UNEX rollers and span-track components, confirming floor space for the 96" width, and planning for the weight distribution given the 12,000 lb total capacity. This product is not described as portable and should be installed in a secure, level area with adequate anchoring as required by your facility’s safety guidelines. For accurate shipping costs or potential exclusions, consult the supplier quote. Note that returns are not supported for this item per the manufacturer's policy.
Features:
- Width: 96 in
- Depth: 72 in
- Height: 84 in
- Weight Capacity: 12,000 lbs total
- Shelf Capacity: 2,000 lbs per level
- 4 levels with 7 lanes per level
- Track Configuration: Roller
- Material: Steel
- Width:
- 96 in
- Depth:
- 72 in
- Height:
- 84 in
- Weight:
- 2258 lbs
- Weight Capacity:
- 12000 lbs
- Axle Center:
- 2 in
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 2000 lbs
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Roller
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Gravity Flow Roller Rack with Span Track
- Manufacturers Part Number:
- RR99K2R8X6-A
- Lanes per Level:
- 7
- Brand:
- Unex
- Package Size:
- Each
