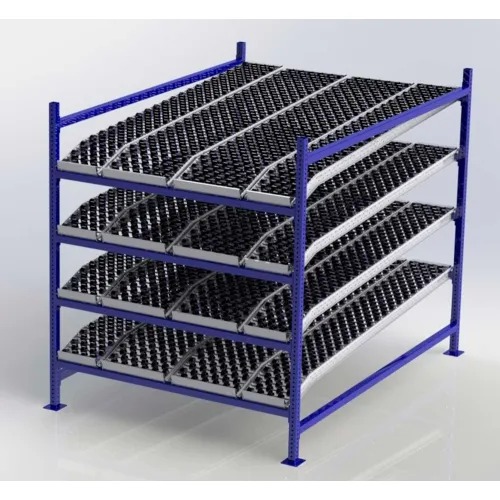

The UNEX FC99SKW60844-S Flow Cell Presentation Gravity Rack Starter is a multi-level storage solution designed to optimize picking efficiency in rack environments. This stationary gravel-flow rack provides a four-level wheelbed configuration that facilitates gravity-assisted movement of items along the rack, helping to streamline replenishment and order fulfillment processes within a facility.
Constructed from steel with a blue powder-coated finish, the rack features 1-3/4" square tube uprights and horizontal beams, welded base plates for secure floor anchoring, and punched uprights at 1" centers. The wheelbed system uses 1.6" hex hub wheels with a low-friction design and a 5/16" steel axle, supporting a total per-level capacity of 1,000 lbs and an overall weight capacity of 3,000 lbs across the unit. The assembly is designed to be straightforward, with four upright posts, four front-to-back beams, and two cross beams allocated per level, and it accommodates objects as they glide on the wheelbed for efficient presentation and retrieval.
Ideal for applications requiring orderly, gravity-assisted presentation of items within a dedicated bay, this starter rack accepts standard pallet or bin storage on each level and is tracked to ensure stable flow. It is sold as a complete unit with a 60
Features:
- Material: Steel construction for durability
- Configuration: 4 levels with wheel bed track
- Size: 60" W x 84" D x 72" H
- Weight Capacity: Shelf capacity 1,000 lbs; total system 3,000 lbs
- Mobility: Stationary rack
- Color: Blue
- Assembly: Assembly required
- Width:
- 60 in
- Depth:
- 84 in
- Height:
- 72 in
- Weight:
- 772 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Presentation Gravity Flow Rack
- Manufacturers Part Number:
- FC99SKW60844-S
- Brand:
- Unex
- Package Size:
- Each
