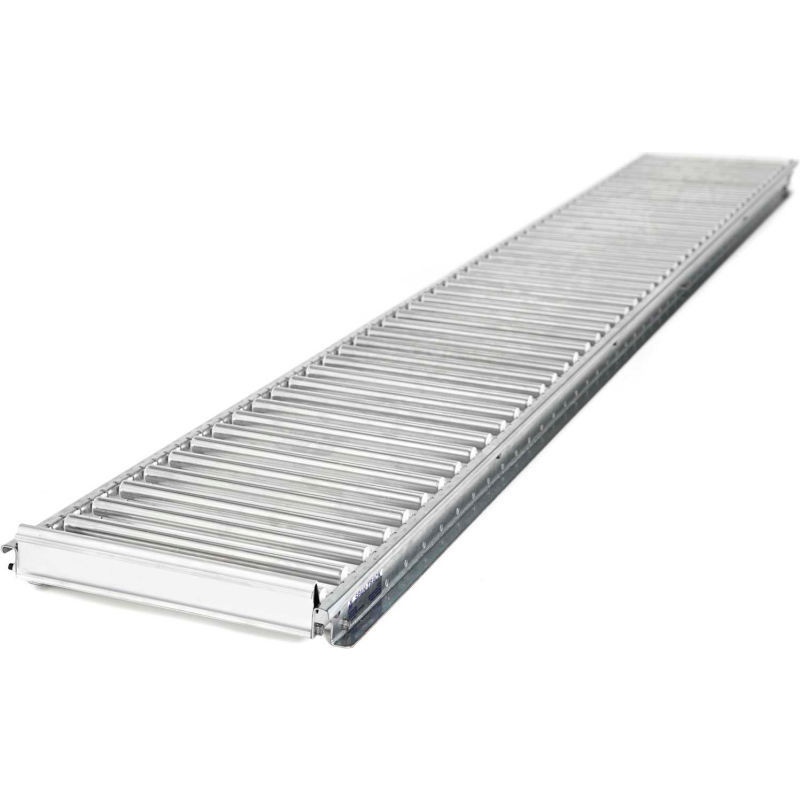

The UNEX 99S5R91X52 SpanTrack 9" Wide x 52" Deep Aluminum Roller Track delivers a gravity-flow carton-lane solution designed to optimize inventory turnover and aisle space on standard pallet rack systems. This drop-in roller track is engineered to sit on step beams without tools or hardware, creating a simple, low-profile expansion that supports fast, first-in/first-out stock movement. The aluminum rollers are 3/4" in diameter and are mounted on galvanized steel tracks spaced at 2" centers, providing smooth, consistent movement and reliable product handling across the lane.
Key construction details include solid aluminum rollers paired with galvanized steel track, a compact 2-11/16" overall height, and a 50 lb/ft load rating for the decking portion of the system, with the overall track capacity listed at 200 lbs. End stops are built in for safety, and label holders are provided at both ends to help with product identification and routing in busy distribution environments. The unit ships as a single, non-assembly component designed for quick installation and immediate use in carton-flow applications, reducing loading times and improving replenishment cycles. The silver-toned finish aligns with typical industrial aesthetics and helps signal the gravity-flow function within a rack-based layout.
This configuration features a 9" width and a 52" depth, tailored for standard pallet rack footprints where lengthwise flow and accessible stock rotation are priorities. It’s designed for use in carton flow lanes and is suitable for operations seeking a compact, plug-and-play solution that does not require assembly hardware. When integrating, confirm compatibility with existing step-beam levels and ensure that the lane length aligns with your SKU footprint and picking workflow. The unit is intended for individual shipment and should be managed according to site-specific handling and warehouse procedures.
Features:
- Width: 9 in
- Depth: 52 in
- Height: 2-11/16 in
- Material: Aluminum
- Track Configuration: Roller
- Type: Carton Flow Lane
- Weight Capacity: 200 lbs
- Width:
- 9 in
- Depth:
- 52 in
- Height:
- 2-11/16 in
- Weight:
- 14 lbs
- Weight Capacity:
- 200 lbs
- Assembly Required:
- No
- Type:
- Carton Flow Lane
- Shelf Capacity:
- 200 lbs
- Color:
- Silver
- Track Configuration:
- Roller
- Material:
- Aluminum
- Manufacturers Part Number:
- 99S5R91X52
- Brand:
- Unex
- Package Size:
- Each
