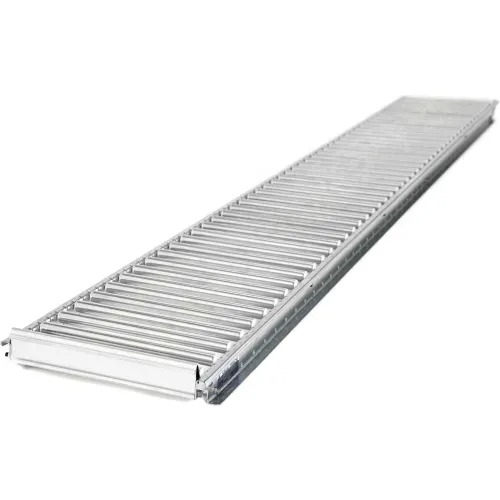

The UNEX 99S29122X43 Span Track Carton Flow Low Profile Lane is a gravity-driven shelving solution designed to fit between standard pallet rack beams. It creates a low-profile carton flow lane that uses roller tracks to move cartons forward by gravity, helping to improve stock rotation and reduce handling time in high-traffic storage areas. The system is configured as a roller track with a steel frame, supporting dependable movement of placed products along the lane.
Constructed with a galvanized steel track frame and 3/4 inch aluminum rollers, the rollers are spaced on 2-inch centers to provide smooth, continuous movement for packed cartons. This particular lane is specified with a width of 12 inches, a depth of 48 inches, and a height of 3 inches, totaling a shelf capacity of 200 pounds per lane. The unit is gray in color and requires assembly during installation, while the rated weight capacity applies to the full carton flow lane under typical loading conditions. The 200-pound shelf capacity figure is relevant for planning how many cartons can be loaded before reloading or rearranging is needed.
This UNEX carton flow lane is intended for use on pallet rack systems and is compatible with standard pallet rack beams. Because installation involves aligning the track with the existing beams, proper assembly is needed to ensure level operation and reliable gravity flow. Each unit is sold as an individual item. As with all gravity-flow components, confirm that corresponding hangers or support hardware (sold separately) are available to complete installation and achieve the expected flow performance.
Features:
- Brand: Unex
- Type: Carton Flow Lane
- Dimensions: 48 in depth x 12 in width
- Height: 3 in
- Material: Steel
- Track Configuration: Roller
- Weight Capacity: 200 lbs per lane
- Shelf Capacity: 200 lbs
- Color: Gray
- Assembly Required: Yes
- Width:
- 12 in
- Depth:
- 48 in
- Height:
- 3 in
- Weight Capacity:
- 200 lbs
- Assembly Required:
- Yes
- Type:
- Carton Flow Lane
- Shelf Capacity:
- 200 lbs
- Color:
- Gray
- Track Configuration:
- Roller
- Material:
- Steel
- Manufacturers Part Number:
- 99S29122X43
- Brand:
- Unex
- Package Size:
- Each
