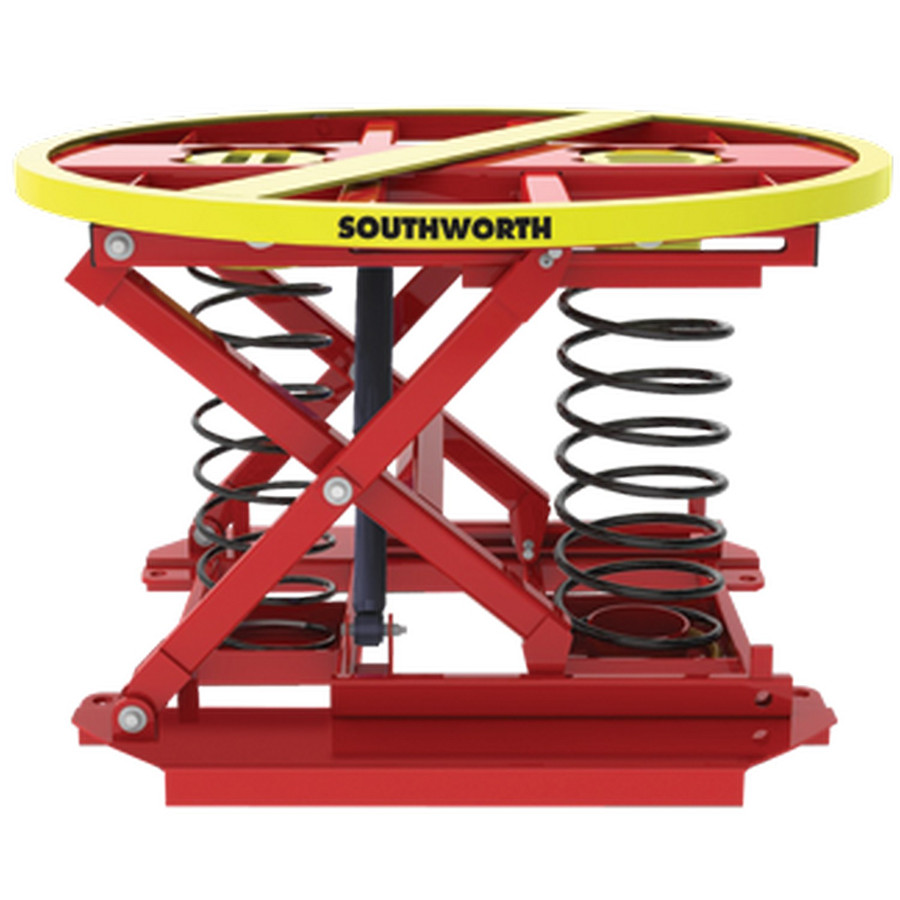

The Southworth PalletPal 360 Spring Pallet Positioner is an automatic, self-leveling loading aid designed to simplify and speed up pallet handling without the need for external power or air supply. Its spring-based system automatically lowers and raises pallets as boxes are added or removed, keeping the load at a convenient height and reducing operator strain during loading and unloading. The unit features a turntable top with a low-friction bearing to support near-side loading and unloading, which helps keep the pallet level as the load shifts.
Construction centers on a rugged tubular steel frame rated to handle pallet loads up to 4,500 pounds. The springs are calibrated to maintain a consistent loading height, while a dampener ensures smooth, controlled raising and lowering with no noticeable overshoot or bounce. The PalletPal 360 is designed for easy relocation; it can be freestanding and moved by a forklift, and optional components include a phenolic frame cover and leveling feet for use on sloped or uneven floors. The design also accepts fork pockets for fork-lre relocation, expanding its versatility across warehouse layouts and workflows.
Practically, this positioner supports better ergonomics and faster throughput in packing and unpacking operations, especially where frequent handling of mixed or heavy palletized loads occurs. While it does not require external power, operators should ensure compatible forklift access for relocation if needed and consider site floor conditions to determine whether optional leveling feet are appropriate. The unit is specified for 4,500 lbs capacity, which informs suitability for typical palletized loads in many industrial settings and guides staging and safety considerations during use.
Features:
- Self-leveling action with no operator adjustments
- Rugged tubular steel frame supports up to 4,500 lbs
- Heavy-duty springs align pallet to comfortable height
- Linkage design maintains level load on uneven surfaces
- Dampener provides smooth, controlled raising/lowering
- Low-friction bearing turntable for near-side access
- Fork pockets for relocation by forklift; optional leveling feet
- Capacity:
- 4,500 LBS
- Package Size:
- Each
