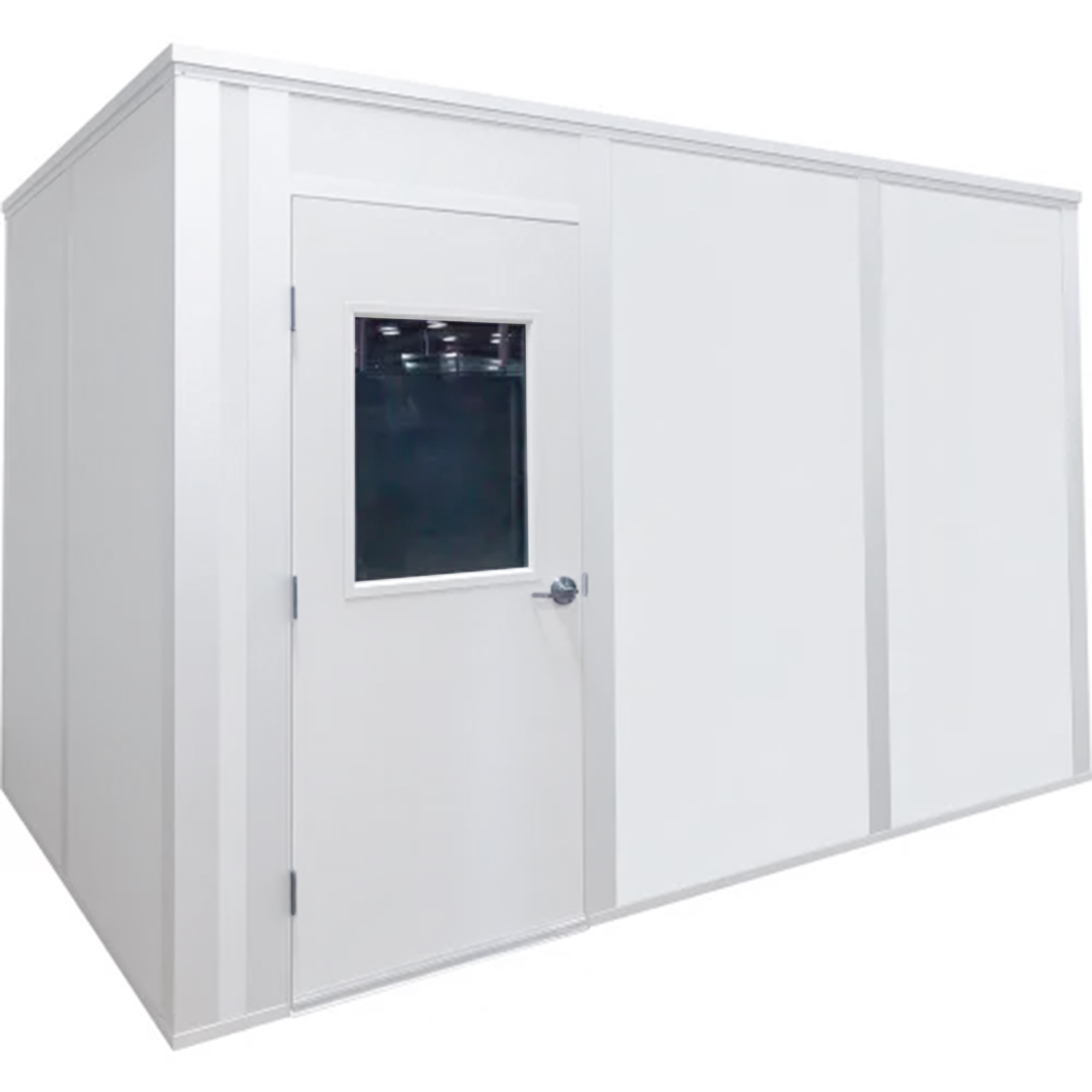

The Porta-King G_SDW121240 is an in-plant office built as a prefabricated, self-contained workspace designed for rapid installation inside industrial environments. With a 12' by 12' footprint and 8'2" overall height, it provides a compact, climate-controlled enclosure suitable for offices, break rooms, or control spaces within a warehouse or manufacturing facility. The unit is designed as a four-wall, layout-driven structure that can be deployed with minimal downtime, leveraging pre-engineered components and detailed installation instructions that include floor plan suggestions and a packing list.
Construction combines a durable exterior and a finished interior to support harsh plant environments. Its exterior surface is a heavy-duty 24-gauge siliconized polyester painted steel, while the interior features a 1/2" vinyl-finished drywall surface, both laminated over a solid UL Class 1 EPS insulating core. This laminated construction contributes to impact resistance and helps with basic thermal and acoustic performance, aligning with the listed STC27/31 ratings. The standard color option is white with gray exterior, providing a neutral, factory-appropriate appearance.
Operationally, the unit arrives as a self-contained package that includes wall panels, connecting posts, roof deck, acoustical ceiling system, door, and hardware. It is equipped with electrical provisions: four 115V duplex outlets, a 3' x 7' door, and a 7'6" ceiling height for comfortable occupancy. Four walls, a 3" wall thickness, and a 100A load center with single-phase power and four circuits accommodate typical facility auxiliary needs. This configuration is suitable for quick deployment where a standalone, climate-controlled space is needed without traditional construction. Consider space planning for access, electrical load, and ventilation when incorporating this modular office into an existing plant layout.
Features:
- Heavy-duty laminated exterior and vinyl-interior walls on a UL Class 1 EPS core
- 12' x 12' four-wall inplant office with 8'2" height
- Class A fire rating and STC27 sound protection
- Includes 3'x7' door, four 115V duplex outlets, and two interior light fixtures
- White interior with gray exterior color match
- Wall thickness 3", designed for harsh plant environments
- Width:
- 12'
- Depth:
- 12'
- Height:
- 8'2"
- Weight:
- 2,900 lbs
- Ceiling Height:
- 7'6"
- Door Size:
- 3'x7'
- Wall Thickness:
- 3"
- Load center:
- 100A, Single Phase, 4-Circuit in
- Color:
- White
- STC Rating:
- 31
- Number Of Doors:
- 1
- Outlets:
- (4) 115V Duplex
- Wall Material:
- Vinyl Covered Drywall Int. & Painted Steel on Drywall Ext.
- Layout:
- 4 Wall
- Light Fixtures:
- 2
- Fire Rating:
- Class A
- Package Size:
- Each
