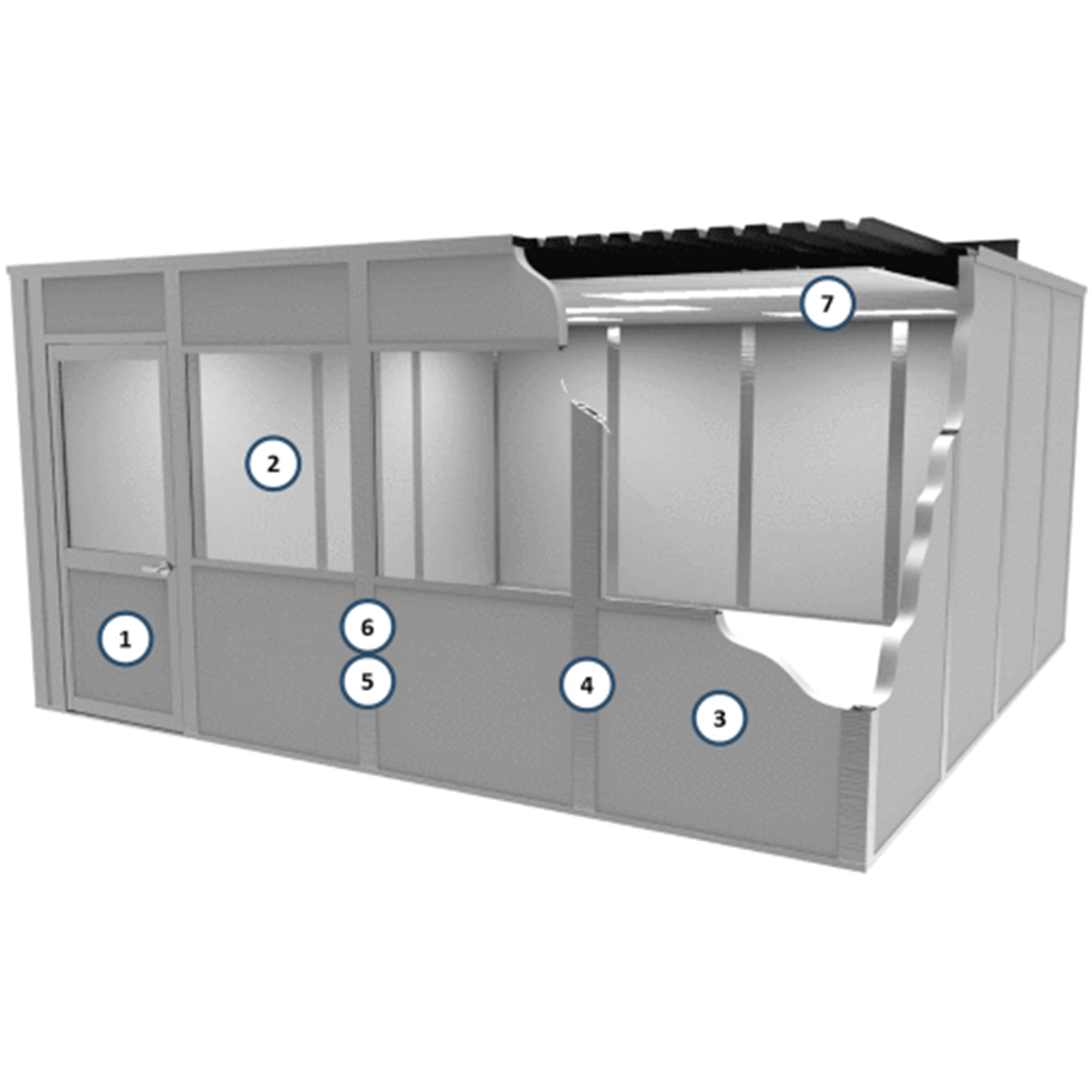

Porta-King G_HG812400 is an in-plant office module designed to be installed within a warehouse or manufacturing environment. This prefabricated, 4-wall enclosure creates a climate-controlled, private space suitable for offices, break rooms, or control centers without the disruption of traditional construction. The unit features a vinyl-covered interior and exterior surface laminated to a solid UL Class 1 EPS insulating core, delivering a light yet durable, impact-resistant surface appropriate for plant settings. The modular design supports quick assembly and predictable installation timelines, with pre-engineered components and a complete package that includes wall panels, connecting post, roof deck, acoustical ceiling system, door, and hardware for the specified floor plan.
Key construction details include a gray vinyl finish (also available in white to match preferences) and a Class C fire rating with an STC27 sound transmission class, indicating a measurable degree of sound dampening suitable for small enclosed spaces inside loud industrial environments. The unit is specified as a 12' wide by 8' deep footprint with an 8'2" overall height and a 7'6" ceiling, featuring a 3' x 7" door and a 3" wall thickness. electrical provisions include two 115V duplex outlets and a single 4-circuit in, with one light fixture incorporated, supporting basic occupancies or light-duty workstations. The package lists a total weight of approximately 1,075 lbs and is laid out for a four-wall configuration with one entry point.
This Porta-King module is documented to support rapid on-site deployment, minimizing downtime when expanding facility space. It is suited for creating an isolated administrative area, break room, or control space within larger plant environments, especially where a climate-controlled interior is advantageous. When planning installation, consider the enclosed floor area, ceiling height, and door size relative to existing workflow, as well as any electrical or lighting needs that may require additional field modifications. The product is shipped as a complete assembly, with all required components and hardware included for the specified layout.
Features:
- Vinyl-covered hardboard interior & exterior laminated to EPS insulating core
- Lightweight yet durable surface suitable for plant environments
- 4-wall layout with 3'x7' entry door
- Includes (2) 115V duplex outlets and 1 light fixture
- STC27 sound rating and Class C fire rating
- Gray exterior with available white color match
- Explicit dimensions: 12'W x 8'D x 8'2"H
- Width:
- 12'
- Depth:
- 8'
- Height:
- 8'2"
- Weight:
- 1,075 lbs
- Ceiling Height:
- 7'6"
- Door Size:
- 3'x7'
- Wall Thickness:
- 3"
- Load center:
- 100A, Single Phase, 4-Circuit in
- Color:
- Gray
- STC Rating:
- 27
- Number Of Doors:
- 1
- Outlets:
- (2) 115V Duplex
- Wall Material:
- Vinyl Covered Hardboard Int. & Ext.
- Layout:
- 4 Wall
- Light Fixtures:
- 1
- Fire Rating:
- Class C
- Package Size:
- Each
