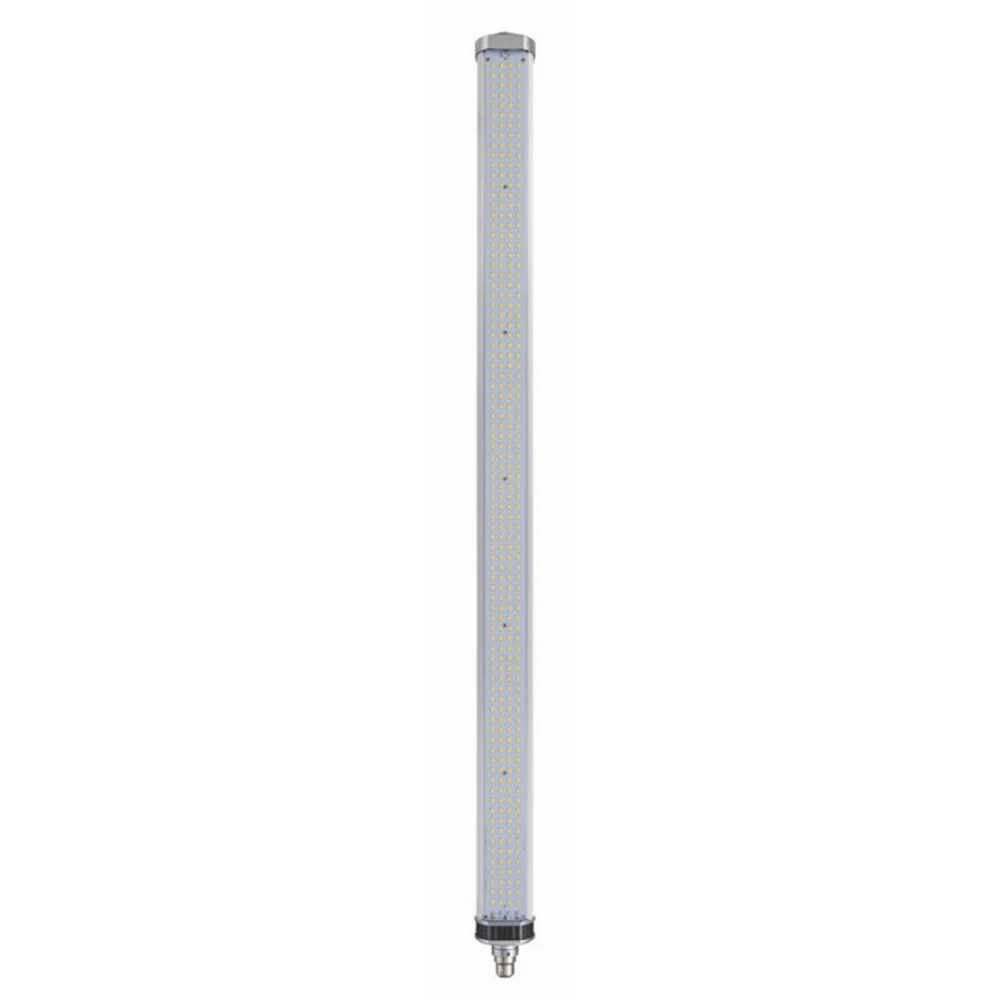

The LED-8104-22K is a retrofit LED lamp designed to replace a 180W low-pressure sodium SOX lamp with a 100W LED solution, delivering a comparable or greater amount of light while improving energy efficiency. This unit produces 11,576 lumens at a correlated color temperature of 2200K, offering a warm, amber-toned light suitable for certain outdoor and security lighting applications. The design emphasizes a directional light output and dark-sky performance, helping minimize light spillage while maximizing usable illumination in target areas.
Construction and features emphasize robust thermal management and electrical resilience. The device includes an integrated aluminum heat sink and an internally designed LED driver, backed by active cooling to maintain performance and longevity. It operates across a wide input voltage range of 120–277V and includes a 6kV surge protection rating, making it adaptable to common supply conditions and more resilient to transients. The lamp is rated for 50,000 hours of operation and supports installation with a Bayonet (BA) base, matching common retrofit configurations. A support harness is included to assist with secure mounting during the retrofit process.
Practical considerations for buyers include the temperature operating range from -40°F to 122°F, enabling use in varied outdoor environments. The fixture’s power and lumen specification indicate a high efficacy of roughly 115.76 lumens per watt, aligning with energy-saving goals typical of street, area, or security lighting. When planning a retrofit, verify compatibility with existing ballast-free sockets and ensure mounting hardware accommodates the bayonet base and the lamp’s 43.53-inch length and 2.83-inch diameter. Proper installation and mounting are essential to achieving intended performance and ensuring long-term reliability.
Features:
- 120-277V operation
- Advanced active cooling
- 6kV surge protection
- USA designed and specified internal LED driver
- Innovative aluminum heat sink
- Includes support harness
- Operating temperature: -40°F to 122°F
- 50,000 hour rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8104-22K
- UPC:
- 844006083830
- Lumens:
- 11,576 Lumens
- Lumens Per Watt:
- 115.76
- Wattage:
- 100 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 2200K
- Lamp / Base Type:
- Bayonet
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 180W Low Pressure Sodium
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Length:
- 43.53
- Diameter:
- 2.83
- Package Size:
- Each
