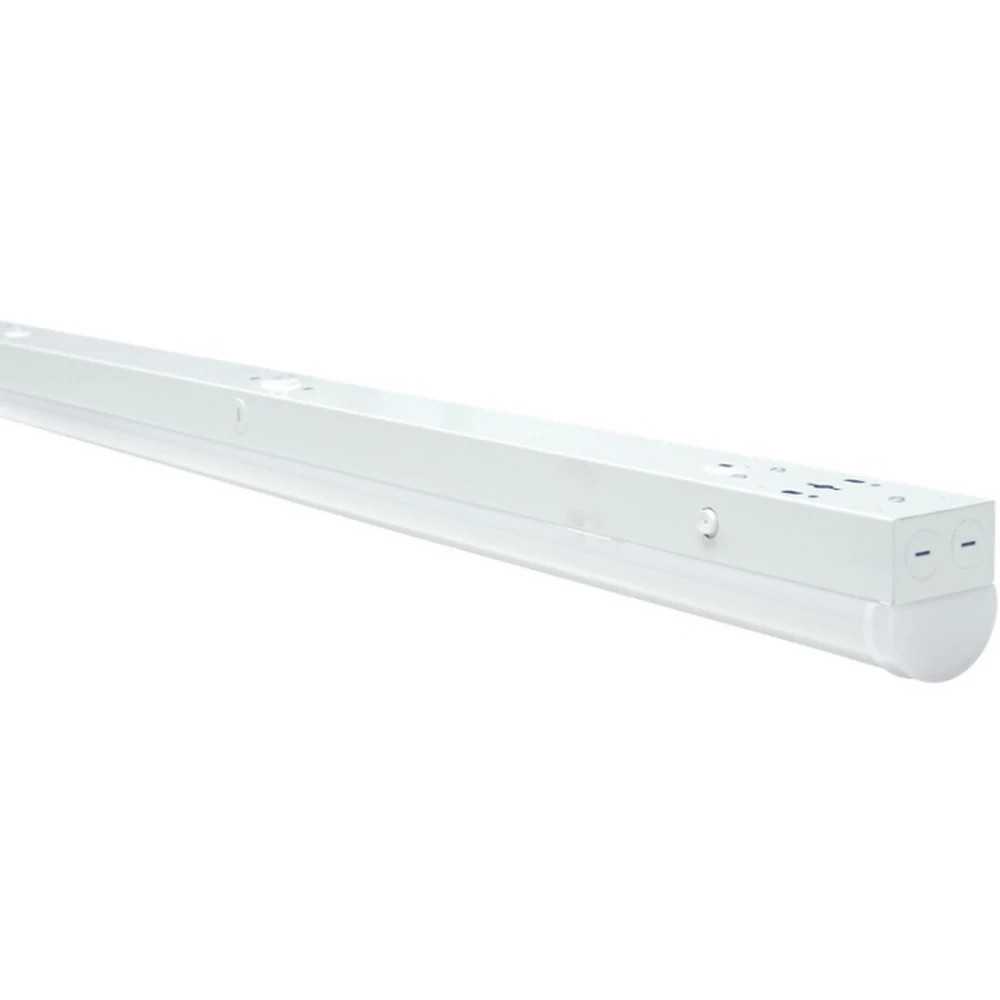

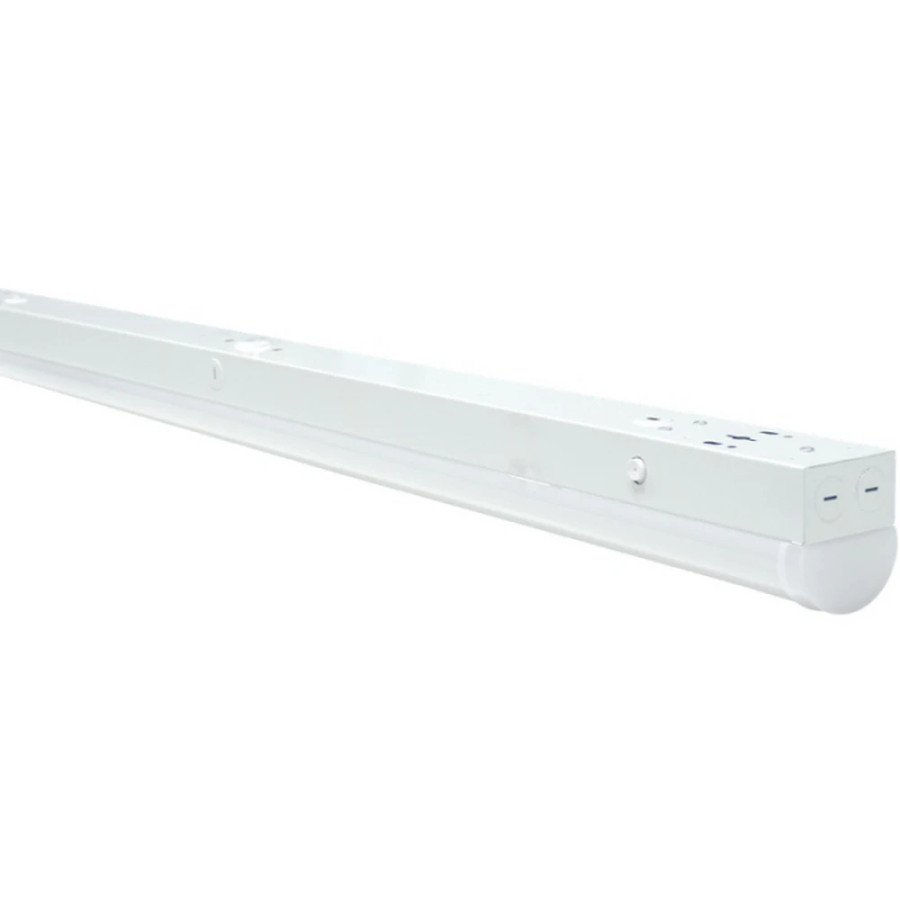

Light Efficient Design RP-B-LS-G2-2FT-25W-40K-WC 24" LED Strip - 3,250 Max Lumens - Wattage & CCT Selectable - 120-277V

The Light Efficient Design RP-B-LS-G2-2FT-25W-40K-WC is a compact 24-inch LED linear strip that delivers high-output illumination with configurable electrical and color options. This fixture supports field-selectable wattage (10W, 15W, or 25W) to match desired brightness and efficiency, with a maximum output of 3,250 lumens and an impressive efficacy up to 140 lm/W. It also offers a selectable color temperature (3000K, 4000K, or 5000K) via the SUPERflex switch, enabling warm white, neutral white, or daylight tones to suit different spaces and tasks. The design includes a 150-degree beam angle for broad, uniform coverage and a 50,000-hour rated life at L70, helping reduce maintenance intervals in demanding environments.

Construction and features emphasize flexibility and integration. The LED strip can be surface mounted or suspended, providing installation versatility for ceilings, coves, or under cabinets. It supports dim-to-off capability using a 12V AUX for sensor-ready applications, and is compatible with optional occupancy sensors, emergency battery back-up, and advanced Bluetooth mesh control. The unit is designed for damp locations and operates across a wide temperature range from -40°F to 113°F, making it suitable for a variety of climate conditions and facility environments. Its long service life and adjustable output help maintain consistent lighting levels while controlling energy use.

In practical use, the RP-B-LS-G2-2FT-25W-40K-WC can be linked with up to 10 units at 120V or 24 units at 277V to support continuous runs across larger areas such as classrooms, hospital corridors, retail aisles, or warehouses. The fixture maintains a high color rendering (80+ CRI) for accurate object visibility and color perception, while the selectable wattage and CCT address different application needs and legacy inventory concerns. The product is sold as an individual unit with configurable options that are typically set during installation to match project requirements.

Features:

• Field-selectable wattage: 10W, 15W, or 25W
• Maximum 3,250 lumens with 80+ CRI and up to 140 lm/W
• Selectable CCT: 3000K, 4000K, 5000K (factory default 4000K)
• Dim to off with 12V AUX for sensor-ready applications
• Linkable up to 10 units at 120V or 24 units at 277V
• 150° beam angle for wide, uniform illumination
• Surface mount or suspended installation with two mounting options
• Operating temp -40°F to 113°F; damp locations; 50,000 hr L70 life
• Optional: occupancy sensor, emergency backup, Bluetooth mesh control
