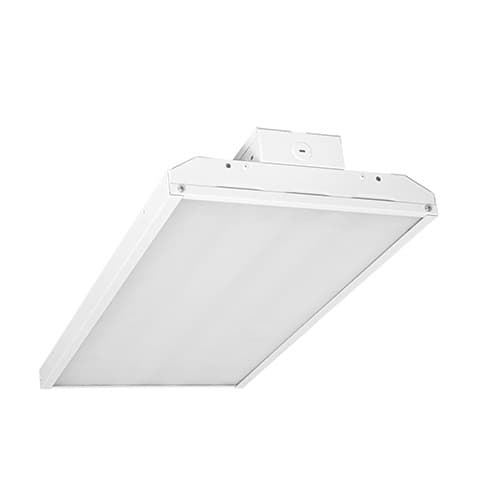

TCP HB21000150LS1D 210W LED Linear High Bay w/ LS1D Sensor, 0-10V Dimming, 27300 lm, 120V-277V, 5000K

The TCP HB21000150LS1D is a high-output LED linear high bay designed to deliver bright, uniform illumination for industrial and commercial spaces with high ceilings. Equipped with a LS1D sensor option and 0-10V dimming, this 210 W luminaire provides substantial lumen output (27300 lm) with a color temperature of 5000K, producing a crisp, natural light that helps improve visibility and productivity in large areas such as warehouses, retail floors, and workshop environments. The fixture is built around a durable all-metal frame and features a frost lens to control glare, providing smooth, shadow-free illumination that supports safer, more efficient work environments.

Construction highlights include a post-painted steel housing with rounded edge corners and pop riveted assembly, contributing to a robust, long-lasting fixture suitable for damp locations. The HB series is designed for straightforward installation, offering hardware such as hangers, chains, a hub mount kit for conduit or stem mounting, and a pre-wired cord, helping to reduce installation time in challenging high-ceiling layouts. The design emphasizes a wide beam spread from an angled LED configuration, delivering uniform light distribution while maintaining good cut-off to minimize stray light and glare.

Compatibility and usage notes: this model is listed to cUL/UL and DLC Premium standards, indicating compliance with common electrical and energy-efficiency requirements in commercial settings. It supports 120V-277V input and is dimmable through 0-10V control, with optional battery backup or motion sensor configurations (including Leviton occupancy sensor options with daylight harvesting). The unit weighs approximately 14 lb and measures 23.8 in long by 17.5 in wide and 3.8 in high, with an expected service life around 50,000 hours. While the product may have extended lead times and is not eligible for return or exchange, its durable construction and features are geared toward high-ceiling installations in warehouses, manufacturing facilities, and large retail environments where reliable, energy-efficient lighting is critical.

Features:

• 210W LED high bay with 27300 lumens
• 0-10V dimming for smooth, flicker-free control
• Optional battery backup or motion sensors
• LS1D sensor compatible with daylight harvesting
• Damp location rated; cUL/UL Listed and DLC Premium
• Wide beam with clean cut-off and glare control
• Hardware included: hangers, chains, hub mount kit, pre-wired cord
