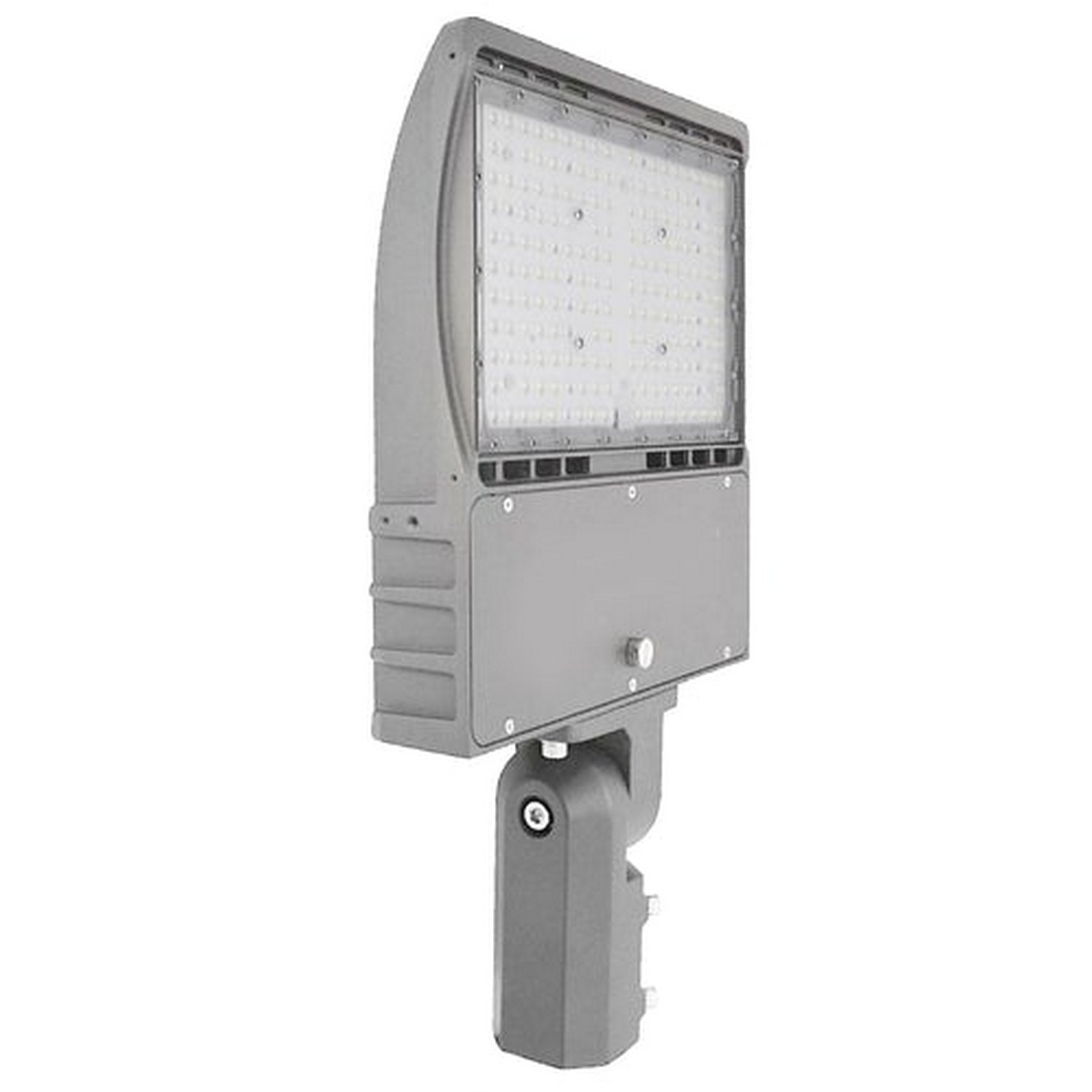

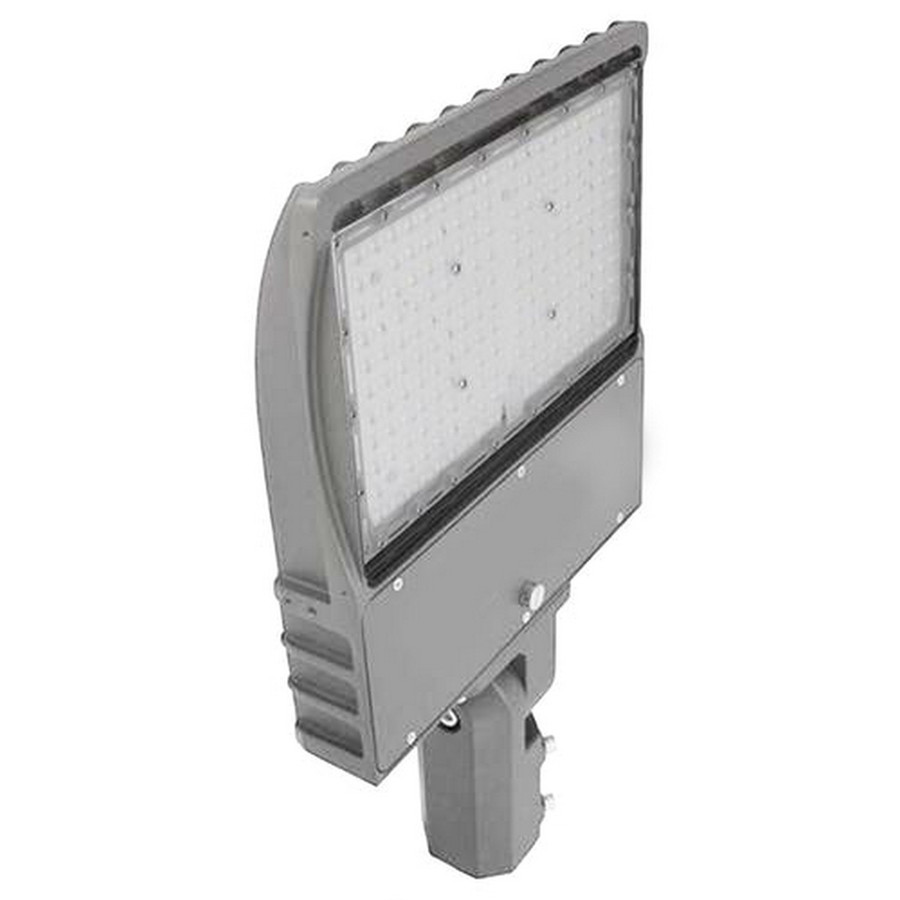

The Beyond LED Technology 153503-3 LED Area Light is a high-output outdoor lighting solution designed for general area illumination such as parking lots, loading docks, and other exterior spaces. Driven by a 150 W LED array and delivering up to 19,800 lumens at a 5000 K color temperature, this fixture offers strong efficacy for energy-conscious upgrades. Its slim die-cast aluminum housing in a grey finish provides a durable chassis suitable for harsh outdoor environments, while a polycarbonate lens helps resist impact and maintain light quality over time. The unit is designed for universal 100–277 V operation with a power factor around 0.9, and it supports an IP65 rating for protection against dust and water exposure, making it a practical choice for wet or dusty locations.
Key construction and features include high-efficacy LEDs and a design that emphasizes heat management, helping maintain performance over the life of the fixture. The LED array is paired with built-in 10 kV surge protection and a selection of bracket options to facilitate mounting in varied configurations. An optional screw-in photocell provides a daylight-control option, enabling energy savings by turning the light on at dusk and off at dawn or according to ambient light levels. The luminaire is backed by a 5-year warranty, reflecting confidence in its long-term performance and the manufacturer’s support.
This fixture is compatible with standard industrial lighting installations that require robust exterior illumination with reliable performance. It is suited for locations where high lumen output and a 5000 K cool white appearance are desired, and where weather resistance and IP65 ingress protection are priorities. Consider applicable mounting accessories and wiring arrangements to ensure proper installation, and verify that the site’s voltage and electrical code requirements align with the unit’s 120–277 V, 50/60 Hz input. This product is sold as a single unit.
Features:
- High Efficacy Lumileds
- Ultra-thin sleek design
- Up to 135 lumens per watt
- Built-In 10 VK Surge protection
- Optional Screw-in photocell
- Several bracket options
- Heat resistant polycarbonate optical lens
- Input Power:
- 150W
- Color Temperature:
- 5000K
- Lumen:
- Up to 19800LM
- Lumen Efficacy:
- Up to 132LM/W
- CRI (Ra):
- 70
- Housing Color:
- Grey
- IP Rating:
- IP65
- Input Voltage and Frequency:
- 120-277V 50/60Hz
- PF:
- ?0.9
- LED Type:
- SMD3030
- Housing:
- Die-cast aluminum
- Warranty:
- 5 Years
- Package Size:
- Each
